Tripp Lite series 2400W 120V 3U Rack-Mount Power Conditioner with Automatic Voltage Regulation (AVR), AC Surge Protection, 14 Outlets, TAA

Quick Specs

• Ideal for computers, routers, modems and home theater components
• Corrects under- and overvoltages in 89V–147V range
• Protects against spikes with 1440 joules of surge suppression
• Features 14 NEMA 5-15R outlets: 2 front and 12 rear
• Outlets arranged in dual Isobar isolated filter banks

Overview

The LCR2400 2400W 120V Power Conditioner adjusts under- and overvoltages to provide safe, computer-grade AC power that meets ANSI C84.1 specifications. Built-in automatic voltage regulation (AVR) offers three levels of voltage stabilization that correct undervoltages as low as 89V and overvoltages as high as 147V back to regulated 120V nominal power. Providing optimum voltage conditions not only extends the life of your equipment, but also keeps your equipment working through brownouts and prolonged overvoltage conditions.

A network-grade 1440-joule surge suppression rating exceeds the IEEE-587 standard for surge suppression (both categories A and B) and prevents even the strongest spikes from inflicting damage, data loss or corruption and audio/video performance problems on your connected equipment. EMI/RFI noise filtering protects your AC line from disruptive electromagnetic and radio interference.

Just connect the space-saving NEMA 5-15P right-angle plug with 12-foot cord to an AC power source, and plug up to 14 devices into the NEMA 5-15R outlets. The outlets are arranged in two isolated filter banks, which use exclusive Isobar® technology to prevent mutual interference from causing audio/video distortion, computer lockups or data errors. Front-panel diagnostic LEDs indicate AC power, incoming voltage level and AC line status. The LCR2400 mounts in 3U of standard 19-inch rack space using the included hardware.

Features

Protects Valuable Electronics

• Supports 120V 20A 2400W intermittently and 16A 1920W continuously when connected to a 120V 20A rated circuit
• Supports 120V 15A 1800W intermittently and 12A 1440W continuously when connected to a 120V 15A rated circuit
• Ideal for audio/video components, computer accessories, point-of-sale equipment and sound reinforcement systems

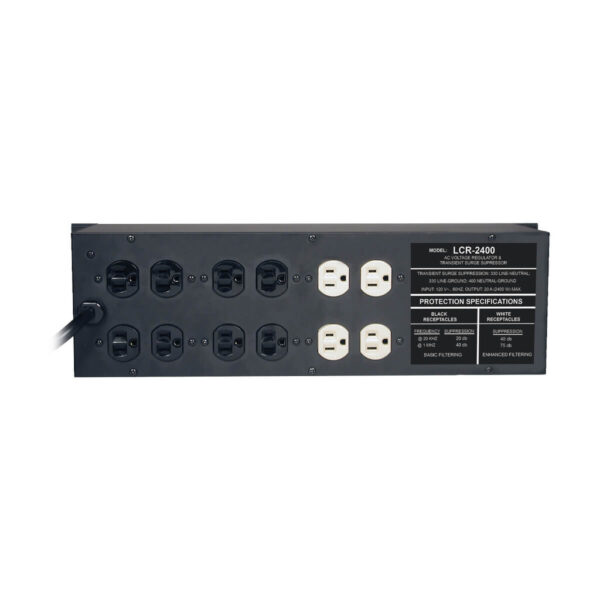

• Connect up to 14 electronic devices to the NEMA 5-15R outlets: 2 in front and 12 in the rear

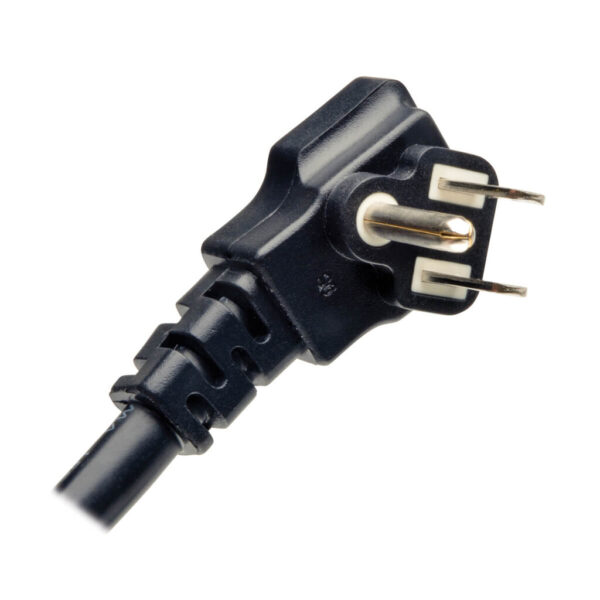

• 12 ft. cord with NEMA 5-15P right-angle plug for easier connection in tight spaces
• Mounts comfortably into 3U of 2- or 4-post rack configurations using included hardware

Automatic Voltage Regulation (AVR)

• Monitors incoming AC power and keeps equipment working through brownouts and prolonged overvoltage conditions
• Corrects undervoltages as low as 89V and overvoltages up to 147V

AC Line Surge Suppression

• 1440 joules of network-grade surge suppression protects against potentially harmful power surges and spikes
• Includes full normal (H-N) and common (N-G/H-G) line surge suppression

EMI/RFI Line Noise Filtering

• Removes electromagnetic and radio frequency interference that can disrupt or damage your equipment’s performance

Exclusive Isolated Filter Banks

• Outlets arranged in dual isolated filter banks with exclusive Isobar filter bank technology
• Prevents connected devices from interfering with one another and causing audio/video distortion, computer lockups and data errors

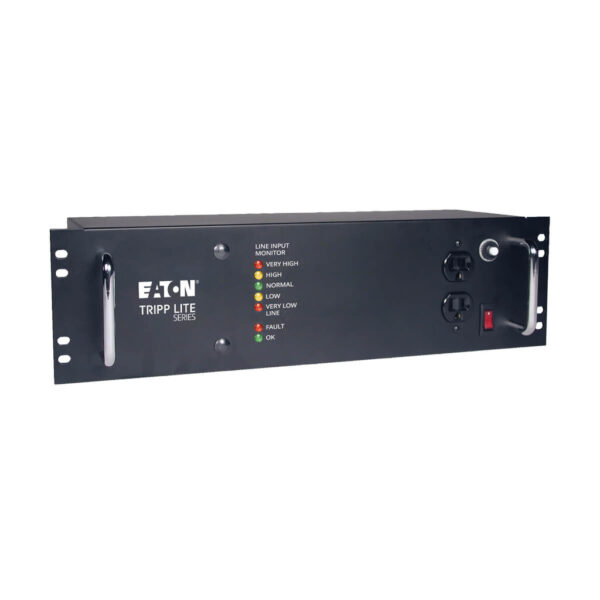

Built-In Diagnostics

• Front-panel LEDs indicate AC power, incoming voltage level and line status
• Front on/off switch provides one-touch power control over all components

Package Includes

• LCR2400 2400W 120V Power Conditioner
• Mounting hardware
• Owner’s Manual
