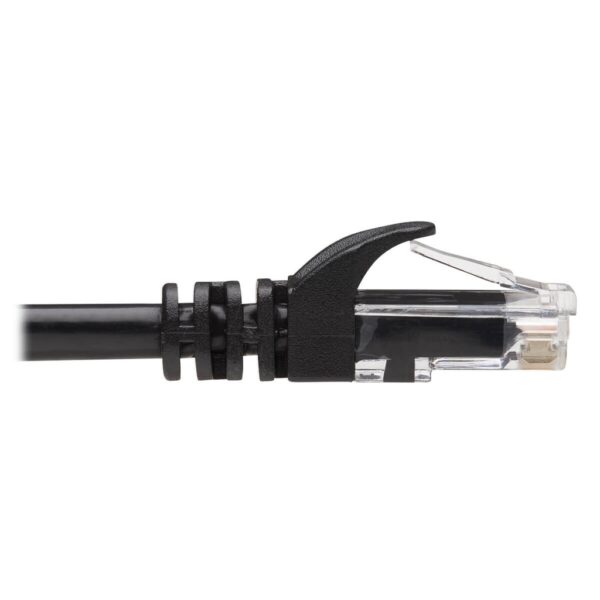

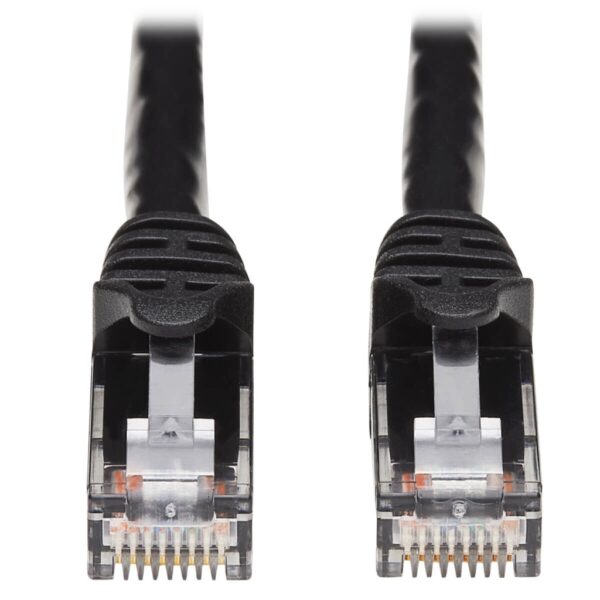

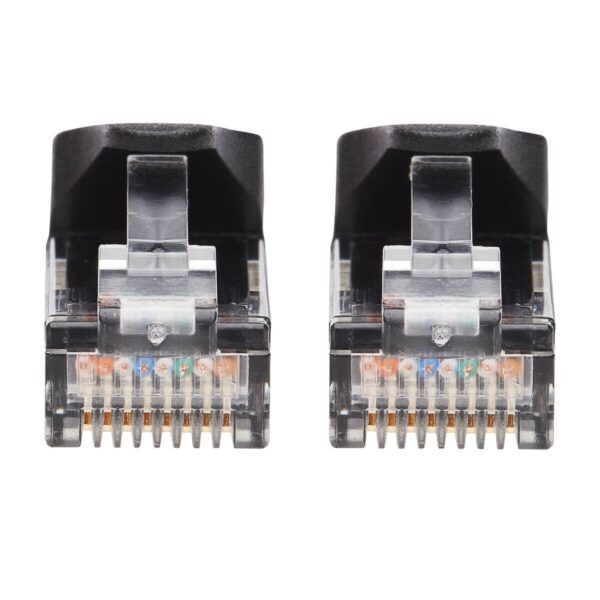

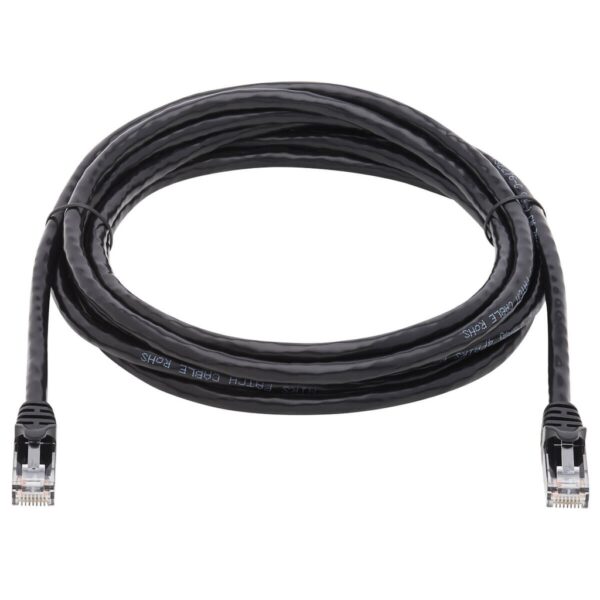

Tripp Lite series Cat6a 10G Snagless UTP Ethernet Cable (RJ45 M/M), Black, 10 ft. (3.05 m)

$8.62

Brand: Tripp Lite
Part Number (MPN): N261-010-BK
UPC / GTIN: 037332187673
Datasheet: PDF

Tripp Lite series Cat6a 10G Snagless UTP Ethernet Cable (RJ45 M/M), Black, 10 ft. (3.05 m)

Manufacturer Warehouse: 114 available
*Items typically ship within 3-4 weeks if stock at factory
Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

  • Molded cables bond the RJ-45 connector and cable with a molded boot, leaving the connector’s lock exposed. They are best suited for environments with few connection/reconnection cycles, such as areas that are difficult to reach.
  • Snagless cables have a protective flap on the boot to safeguard the RJ-45 connector’s lock, making them ideal for settings where the plug is frequently unplugged.

Overview

This N261-010-BK Black Augmented Cat6 (Cat6a) Unshielded (UTP) Snagless Ethernet cable allows 10 Gbps data transmission over 4-pair copper. Each Cat6a cable is individually tested and certified on Fluke test equipment. Snag-free strain relief boot provides the most secure and accurate connections.

Features

  • 10-ft. (3.05 m) Black Cat6a Unshielded (UTP) Snagless Patch Cable – 10Gbps
  • 100% FLUKE® tested and certified
  • ETL/UL Verified
  • Supports IEEE 802.3af and is DTE power compliant
  • Backward compatible with all previous 10BaseT generations
  • RJ45 plug improves NEXT performance to 500Mhz
  • 24AWG, 4-Pair, Stranded PVC cable
  • Compatible with T568A and T568B wiring
  • Easy disconnect snagless hood
  • PoE rated to four times the standard

Package Includes

  • 10-ft. (3.05 m) Cat6a Black Patch Cable
Weight 0.27 lbs
Dimensions 9 × 7 × 0.5 in
UPC Code

037332187673

Cord Length

10.01

Brand

Technology

Cat6a

Side A - Connector 1

RJ45 (MALE)

Side B - Connector 1

RJ45 (MALE)

Contact Plating

Gold

PoE Type

Type 2 PoE+ (30W, IEEE 802.3at)

Connector Type

Molded; Snagless

Wiring Configuration

EIA/TIA 568B

Cable Jacket Color

Black

Cable Jacket Material

PVC

Cable Jacket Rating

FT4

Cable Shielding

UTP

Cable Outer Diameter (OD)

6.2 mm

Number of Conductors

4 Pair

Conductor Material

Stranded Copper

Conductor Gauge

24 AWG

Cable Length (m)

3.05

Cable Length (cm)

304.8

Shipping Dimensions (hwd / cm)

1.27 x 17.78 x 22.86

Shipping Weight (kg)

0.12

Operating Temperature Range

14° to 104°F (-10° to 40°C)

Storage Temperature Range

5° to 122°F (-15° to 50°C)

Operating Humidity Range

0% to 90% RH, Non-Condensing

Storage Humidity Range

0% to 90% RH, Non-Condensing

Bandwidth per TIA Standard

500 MHz

Maximum Bandwidth as Tested

600 MHz

Network Compatibility

10 Gbps

IEEE Standards Supported

802.3an; 802.3at

Snagless Connector

Yes

Product Certifications

UL Listed; cUL Listed

Product Compliance

CE (Europe); RoHS; IEEE 802.3an 10GBase-T; IEEE 802.3at PoE+; REACH; UKCA

Product Warranty Period (Worldwide)

Lifetime limited warranty
