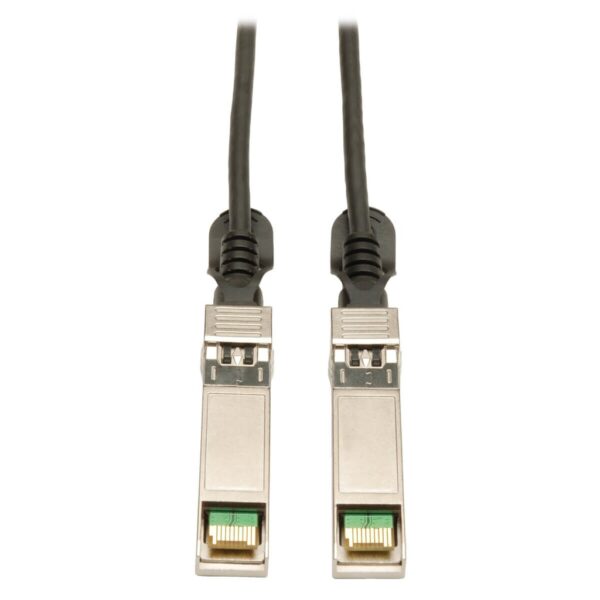

Tripp Lite series SFP+ 10GBase-CU Passive Twinax Copper Cable, SFP-H10GB-CU5M Compatible, Black, 6M (19.68 ft.)

Name: Tripp Lite series SFP+ 10GBase-CU Passive Twinax Copper Cable, SFP-H10GB-CU5M Compatible, Black, 6M (19.68 ft.)
Brand: Tripp Lite
SKU: N280-06M-BK
Price: 99.09 CAD
Availability: BackOrder

$99.09

Brand: Tripp Lite

Part Number (MPN): N280-06M-BK

UPC / GTIN: 037332178183

Datasheet: PDF

Tripp Lite series SFP+ 10GBase-CU Passive Twinax Copper Cable, SFP-H10GB-CU5M Compatible, Black, 6M (19.68 ft.)

Status: On Backorder (Contact us for lead times)

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

6M (19.68-ft.) Black 24AWG SFP+ High Speed Passive Copper 10Gbps Cable
Fully compliant to MSA SFF-8431 specification
Equivalent to Cisco SFP-H10GB-CU1-5M
Low-cost alternative to Fiber Optic

Features

6M (19.68-ft.) Black 24Awg SFP+ High Speed Passive Copper 10Gbps Cable
Fully compliant to MSA SFF-8431 specification
Equivalent to Cisco SFP-H10GB-CU1-5M (See the Support tab on this web page for additional cross references)
Use in 10Gbps Ethernet and Fibre Channel applications
100ohm Twinaxial cable, Diecast metal shells, pull-to-release latching
Support for 1x, 2x, 4x and 8x Fiber Channel data rates
Hot-Pluggable SFP 20PIN footprint
Low power consumption

System Requirements

SFP+ Direct Attach Cable ( DAC ) Twinaxial cables conform to SFF-8431 standards, and as such can be used with the following manufacturers equipment that are open to 3rd party cables:

QLOGIC * EMULEX * JUNIPER * ARISTA * IBM * DELL * EXTREME
EMC * BROADCOM * FINISAR * VOLTAIRE * CISCO

CONFIRMED EQUIPMENT LIST ( *ensure the latest firmware and software is installed )
CISCO NEXUS *
CISCO CATALYST *
CISCO CATALYST 3750x
CISCO CATALYST 2960
CISCO CATALYST 3500
CISCO CATALYST 3550
CISCO NEXUS 5010
ARISTA 70505-64
QUANTA T3048
EXTREME X250E
JUNIPER EX3200

NOT COMPATIBLE TO 3RD PARTY CABLES: HP and BROCADE

Package Includes

6M (19.68-ft.) Black 24Awg SFP+ High Speed Passive Copper 10Gbps Cable

Weight	0.84 lbs
Dimensions	0.5 × 14 × 17 in
UPC Code	037332178183
Cord Length	19.72
Brand Compatibility	Arista, Broadcom, Cisco, Dell, EMC, Emulex, Extreme, Finisar, IBM, Juniper, QLogic, Voltaire
Brand	Tripp Lite
Cable Type	Passive
Compatible Brand	Arista; Broadcom; Cisco; Dell; EMC; Emulex; Extreme; Finisar; IBM; Juniper; QLogic; Voltaire
Side A - Connector 1	SFP+ (MALE)
Side B - Connector 1	SFP+ (MALE)
Color	Black
Cable Jacket Color	Black
Cable Jacket Material	PVC
Cable Outer Diameter (OD)	6.0mm
Cable Length (m)	6.01
Cable Length (cm)	600.456
Minimum Bend Radius	35mm
Shipping Dimensions (hwd / cm)	43.18 x 35.56 x 1.27
Shipping Weight (kg)	0.38
Operating Temperature Range	32° to 158°F (0° to 70°C)
Storage Temperature Range	-4° to 185°F (-20° to 85°C)
Operating Humidity Range	5% to 85% RH
Storage Humidity Range	5% to 85% RH
Network Compatibility	10 Gbps
IEEE Standards Supported	802.3BA
Product Compliance	RoHS
Product Warranty Period (Worldwide)	Lifetime limited warranty
