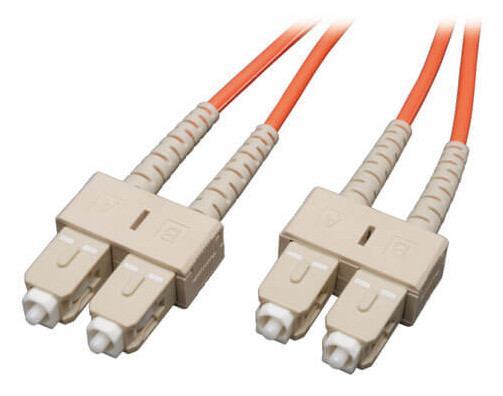

Tripp Lite series Duplex Multimode 50/125 Fiber Patch Cable (SC/SC), 9M (30 ft.)

Name: Tripp Lite series Duplex Multimode 50/125 Fiber Patch Cable (SC/SC), 9M (30 ft.)
Brand: Tripp Lite
SKU: N506-09M
Price: 27.77 CAD
Availability: BackOrder

$27.77

Brand: Tripp Lite

Part Number (MPN): N506-09M

UPC / GTIN: 037332138149

Datasheet: PDF

Tripp Lite series Duplex Multimode 50/125 Fiber Patch Cable (SC/SC), 9M (30 ft.)

Status: On Backorder (Contact us for lead times)

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Premium PVC 50/125 multimode patch cables
Attenuation loss meets or exceeds the latest industry standards
Higher bandwidth, optimized for gigabit and 10Gbps networks
Backward compatible with 62.5 micron fiber
Built-in headroom for future applications

Overview

This multimode duplex Fibre Channel SC/SC Ethernet cable is manufactured from 50/125 zipcord fiber. The cable has SC connectors on each end, a PVC jacket and is FDDI and OFNR rated. 50/125 Duplex multimode fiber is most commonly used in Fibre Channel applications. It is backward compatible with 62.5 micron fiber and built-in headroom for future applications. The cable provides higher bandwidth optimized for Gigabit and 10 Gbps networks as well. Also available in 1, 2, 3, 5, 15, 30 and 50 meter lengths. Search “N506-” to bring up all lengths. Also search “N516-” for SC-LC cables, and “N520-” for LC-LC cables.

Features

Constructed with 50/125 micron cable
Length – 9M
Use on fiber and fibre channel installations
SC male to SC male connectors
Higher bandwidth optimized for gigabit and 10Gbps networks
Backward compatible with 62.5 micron fiber
Built-in headroom for future applications

System Requirements

Any fiber optic hardware or NIC card requiring multimode Duplex cable with SC/SC connectors

Package Includes

9M Duplex MMF Cable SC/SC 50/125 Fiber

Weight	0.25 lbs
Dimensions	0.8 × 7 × 9 in
UPC Code	037332138149
Cord Length	29.49
Brand	Tripp Lite
Technology	Multimode
Optical Mode	OM2
Side A - Connector 1	SC DUPLEX (MALE)
Side B - Connector 1	SC DUPLEX (MALE)
Endface Polish	PC
Cable Jacket Color	Orange
Connector Color	Beige
Cable Jacket Material	LSZH
Cable Jacket Rating	OFNR
Clad Diameter (microns)	125
Core Diameter (microns)	50
Number of Fibers	2
Cable Length (m)	8.99
Minimum Bend Radius	20 mm (Dynamic); 10 mm (Static)
Shipping Dimensions (hwd / cm)	22.86 x 17.78 x 2.03
Shipping Weight (kg)	0.11
Fiber Cable Length	9M (29.5 ft)
Operating Temperature Range	-4° to 140°F (-20° to 60°C)
Storage Temperature Range	-4° to 140°F (-20° to 60°C)
Operating Humidity Range	5% to 85% RH, Non-Condensing
Storage Humidity Range	35% to 65% RH, Non-Condensing
Network Compatibility	1 Gbps (Gigabit); 10 Gbps
Attenuation @ 850NM	3.0 dB/km
Insertion Loss	≤ 0.20 dB
Product Compliance	RoHS; REACH
Product Warranty Period (Worldwide)	Lifetime limited warranty
