Tripp Lite series 10/100/1000 LC Multimode Fiber to Ethernet Media Converter, 550M, 850nm

Name: Tripp Lite series 10/100/1000 LC Multimode Fiber to Ethernet Media Converter, 550M, 850nm
Brand: Tripp Lite
SKU: N785-001-LC-MM
Price: 265.00 CAD
Availability: InStock

$265.00

Brand: Tripp Lite

Part Number (MPN): N785-001-LC-MM

UPC / GTIN: 037332183927

Datasheet: PDF

Tripp Lite series 10/100/1000 LC Multimode Fiber to Ethernet Media Converter, 550M, 850nm

Manufacturer Warehouse: 658 available
*Items typically ship within 3-4 weeks if stock at factory

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Extends a Gigabit Ethernet signal up to 550 meters over Multimode Fiber Optic Cable
Auto detects Full/Half Duplex Transfer Mode
Supports Multimode 50/125 cable up to 550M or 62.5/125 cable up to 400M

Overview

The N785-001-LC-MM 10/100/1000 to Multimode Media Converter (RJ45 to LC) is an economical way to extend the distance of network nodes up to 550 meters by converting Cat5e UTP cables to Multimode Fiber Optic. The Media Converter features automatic MDI/MDI-X configuration, and the UTP port senses the network speed automatically. Auto-detects half or full duplex operation on the fiber port. Power supplied by small form factor AC adapter.

Features

10/100/1000 UTP to Multimode Fiber converter
Up to 550 Meters ( 1800ft ) range
Auto-detects Full / Half Duplex Transfer Mode
Auto Negotiation MDI / MDI-X
6 performance monitoring LEDs
850nm wavelength
Small, compact design
Supports Multimode 50/125 cable up to 550M or 62.5/125 cable up to 400M

System Requirements

10/100/1000 Ethernet Network
Multimode LC Fiber Cable

Package Includes

10/100/1000 LC Multimode Media Converter, 550M, 850nm

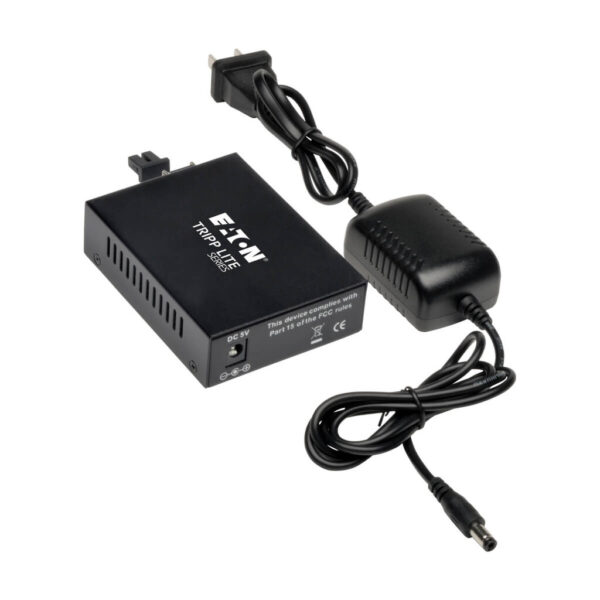

External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz; Output: 5V, 1.2A)

Weight	0.95 lbs
Dimensions	2.76 × 1.02 × 3.7 in
UPC Code	037332183927
Cord Length	4.53
Brand	Tripp Lite
Product Type	Fiber to Ethernet
Technology	Cat5/5e; Cat6; Multimode
Mode Type	Multimode
Accessories (Included)	External Power Supply (Input: 100-240V, 50/60Hz, 0.5A; Output: 5V/2A)
Network Ports	RJ45 (FEMALE); LC (FEMALE)
AC Power Adapter Plug(s)	NEMA 1-15P North America
AC Power Adapter Input Specs (V / Hz / A)	100-240V / 50/60Hz / 1.2A
AC Power Adapter Output Specs (V / A)	5V / 2A
AC Power Adapter Cord Length (ft.)	4.53
AC Power Adapter Cord Length (m)	1.38
Power Source Type	AC Adapter
AC Adapter	Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 1.2A
DC Barrel Plug	OD: 5.5 x 2.5 x 11mm, Positive Pin, Negative Sleeve
Side A - Connector 1	RJ45 (FEMALE)
Side B - Connector 1	LC DUPLEX (FEMALE)

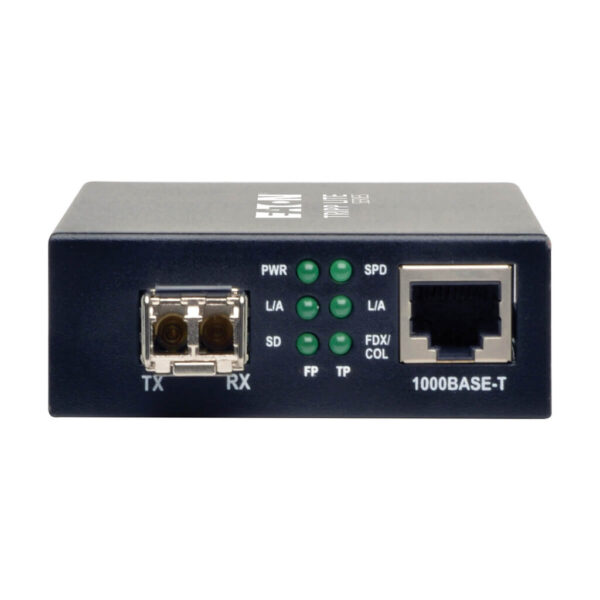

LED Indicators	PWR (Power LED), L/A (Fiber port connection indicator), SD (Fiber signal indicator), SPD (Network speed), TP-L/A (Copper port connection indicator), FDX/COL (Full Duplex/Half Duplex)
Color	Black
Power Cord Color	Black
Shipping Dimensions (hwd / cm)	9.40 x 2.59 x 7.01
Shipping Weight (kg)	0.43
Unit Dimensions (hwd / cm)	2.54 x 11.94 x 6.99
Unit Dimensions (hwd / mm)	25.4 x 93.98 x 71.12
Unit Packaging Type	Box
Unit Weight (kg)	0.45
Housing	Metal
Operating Temperature Range	32° to 140°F (0° to 60°C)
Storage Temperature Range	-4° to 158°F (-20° to 70°C)
Relative Humidity	5% to 90% RH, Non-Condensing
Network Compatibility	10 Mbps; 100 Mbps (Fast Ethernet); 1 Gbps (Gigabit)
Network Speed Details	10 Mbps; 100 Mbps; 1000 Mbps
Wavelength	850nm
Transmission Distance	550 m
IEEE Standards Supported	802.3; 802.3u; 802.3ab; 802.3z
Wavelength Division Multiplexing (WDM)	Yes
Data Transfer Rate	1 Gbps; 10 Mbps; 100 Mbps
Working Mode	Full/Half Duplex
Auto MDIX Support	Yes
Optical Port	LC
External Power Supply Certifications	CE; FCC; cUL; WEEE
Product Compliance	RoHS; CE (Europe); FCC (USA)
Product Warranty Period (Worldwide)	2-year limited warranty
