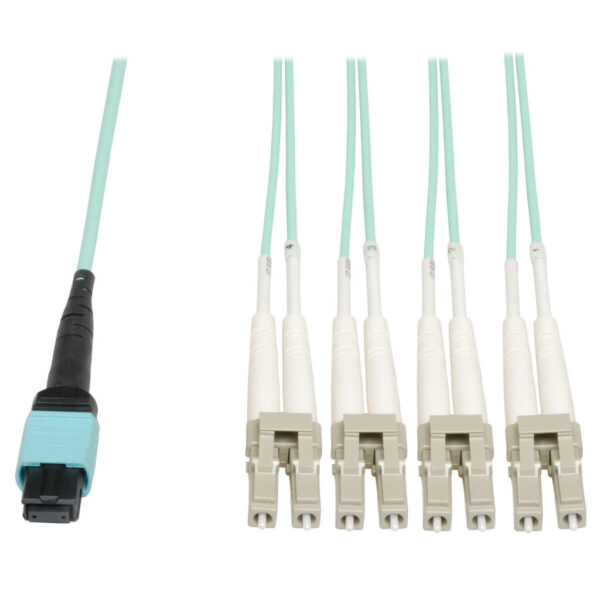

Tripp Lite series MTP/MPO Fan-Out Cable, MTP/MPO to 4xLC, 40GbE, 40GBASE-SR4, OM3 Plenum-Rated – Aqua, 2M (6 ft.)
$219.44
Tripp Lite series MTP/MPO Fan-Out Cable, MTP/MPO to 4xLC, 40GbE, 40GBASE-SR4, OM3 Plenum-Rated – Aqua, 2M (6 ft.)
Manufacturer Warehouse: 70 available
*Items typically ship within 3-4 weeks if stock at factory
*Items typically ship within 3-4 weeks if stock at factory
Need project pricing? Add items to your cart to request a custom project quote.
The Tripp Lite N844-02M-8LC-P is a Important Note OM3 can support 40GBASE-SR4 / 100GBASE-SR10 in applicable parallel optics networks. MTP/MPO Fan-Out Cable, MTP/MPO to 4xLC, 40GbE, 40GBASE-SR4, OM3 Plenum-Rated – Aqua, 2M (6 ft.).
- Side A – Connector 1: 12F MPO (FEMALE)
- Side B – Connector 1: (8) LC DUPLEX (MALE)
- Connector Color: Aqua; Black; Gray
- Cable Length (ft.): 6.6
- Cable Length (m): 2.01
- Cable Length (in.): 78.7
- Fiber Cable Length: 2M (6.6 ft)
- Technology: Multimode
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 6 × 4.9 × 0.25 in |
| UPC Code | 037332173768 |
| Cord Length | 6.59 |
| Brand | |
| Technology | Multimode |
| Optical Mode | OM3 |
| Side A - Connector 1 | 12F MPO (FEMALE) |
| Side B - Connector 1 | (8) LC DUPLEX (MALE) |
| Endface Polish | PC |
| Polarity | Type B (cross) |
| Cable Jacket Color | Aqua |
| Connector Color | Aqua; Black; Gray |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | OFNP |
| Clad Diameter (microns) | 125 |
| Core Diameter (microns) | 50 |
| Number of Fibers | 8 |
| Cable Length (m) | 2.01 |
| Minimum Bend Radius | 20 mm (Dynamic); 10 mm (Static) |
| Shipping Dimensions (hwd / cm) | 0.64 x 12.45 x 15.24 |
| Shipping Weight (kg) | 0.05 |
| Fiber Cable Length | 2M (6.6 ft) |
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Operating Humidity Range | 5% to 85% RH, Non-Condensing |
| Storage Humidity Range | 35% to 65% RH, Non-Condensing |
| Network Compatibility | 40 Gbps; 100 Gbps; 400 Gbps |
| Attenuation @ 850NM | 3.0 dB/km |
| Insertion Loss | ≤ 0.35 dB |
| Breakout | Yes |
| Trunk | Yes |
| Product Compliance | RoHS; REACH |
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
| Cable Length (in.) | 78.7 |
