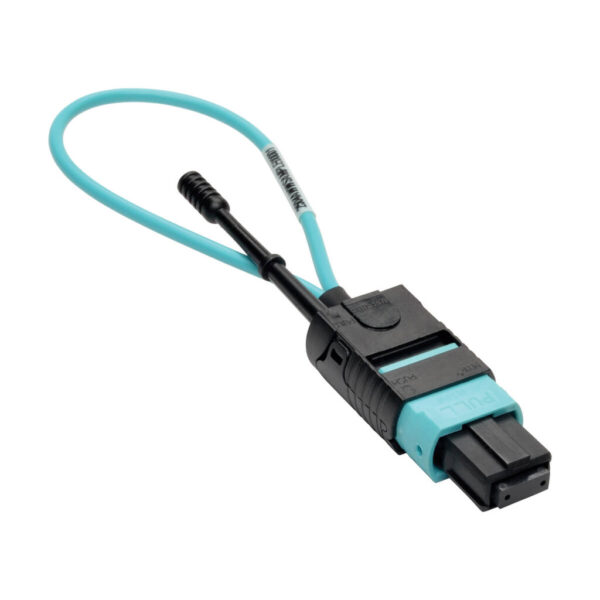

Tripp Lite series MTP / MPO Fiber Optic Loopback Tester (Multimode 50/125um, OM3) – Female
$91.78
Tripp Lite series MTP / MPO Fiber Optic Loopback Tester (Multimode 50/125um, OM3) – Female
Manufacturer Warehouse: 160 available
*Items typically ship within 3-4 weeks if stock at factory
*Items typically ship within 3-4 weeks if stock at factory
Need project pricing? Add items to your cart to request a custom project quote.
Quick Specs
- MTP / MPO Loopback for 40GbE QSFP+ Optical Testing
- 50/125 OM3 6-Fiber
Overview
This N844-LOOP-12F MTP/MPO OM3 Fiber Optic Loopback Tester is typically used for test and measurement procedures in networking environments.The device is ideal for a multitude of applications that require signal looping in a MTP/MPO form factor. Features push-pull tab for easy disconnect. A dust cap is included for protection during storage.
Features
- MTP / MPO OM3 Loopback Tester
- Push-pull tab for quick disconnect
- Protective dust cover included for protection during storage
- 4-inch overall length
- Pin config: 1 -12, 2-11, 3-10, 4-9, 5-8, 6-7
System Requirements
- Networking hardware with MTP / MPO ports
Package Includes
- MTP / MPO Fiber Optic Loopback Tester (Multimode 50/125um, OM3) – Female
| Weight | 0.013 lbs |
|---|---|
| Dimensions | 0.5 × 4 × 5.9 in |
| UPC Code | 037332188205 |
| Cord Length | 0.33 |
| Brand | |
| Accessory Type | Cable Tester |
| Technology | Multimode |
| Optical Mode | OM3 |
| Side A - Connector 1 | 12F MTP/MPO (FEMALE) |
| Side B - Connector 1 | 12F MTP/MPO (FEMALE) |
| Endface Polish | PC |
| Cable Jacket Color | Aqua |
| Connector Color | Aqua; Black |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | OFNP |
| Clad Diameter (microns) | 125 |
| Core Diameter (microns) | 50 |
| Number of Fibers | 12 |
| Cable Length (m) | 0.10 |
| Cable Length (cm) | 10.16 |
| Minimum Bend Radius | 20MM (Dynamic); 10MM (Static) |
| Shipping Dimensions (hwd / cm) | 14.99 x 10.16 x 1.27 |
| Shipping Weight (kg) | 0.01 |
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Operating Humidity Range | 5% to 85% RH, Non-Condensing |
| Storage Humidity Range | 35% to 65% RH, Non-Condensing |
| Network Compatibility | 40 Gbps; 100 Gbps; 400 Gbps |
| Attenuation @ 850NM | 3.0 dB / km |
| Insertion Loss | ≤ 0.35 dB |
| Push/Pull Tabs | Yes |
| Product Compliance | RoHS; REACH |
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
