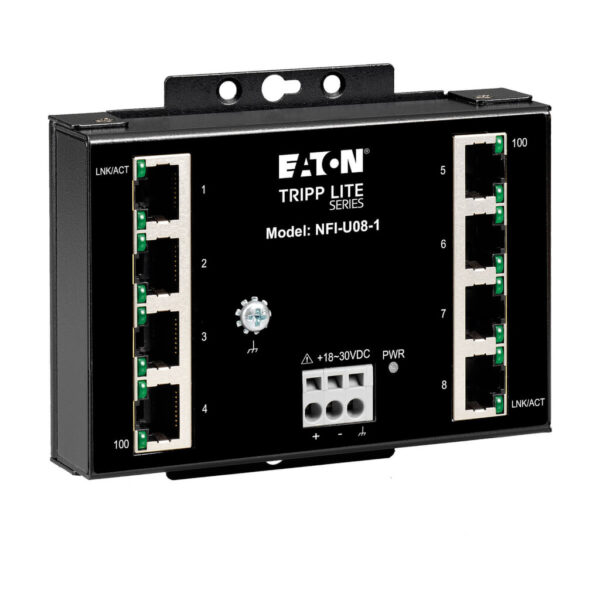

Tripp Lite series 8-Port Unmanaged Fast Industrial Ethernet Switch - 10/100 Mbps, Ruggedized, -40° to 75°C, DIN/Wall Mount, TAA

Tripp Lite series 8-Port Unmanaged Fast Industrial Ethernet Switch – 10/100 Mbps, Ruggedized, -40° to 75°C, DIN/Wall Mount, TAA

Name: Tripp Lite series 8-Port Unmanaged Fast Industrial Ethernet Switch - 10/100 Mbps, Ruggedized, -40° to 75°C, DIN/Wall Mount, TAA
Brand: Tripp Lite
SKU: NFI-U08-1
Price: 137.35 CAD
Availability: InStock

$137.35

Brand: Tripp Lite

Part Number (MPN): NFI-U08-1

UPC / GTIN: 037332264275

Datasheet: PDF

Tripp Lite series 8-Port Unmanaged Fast Industrial Ethernet Switch – 10/100 Mbps, Ruggedized, -40° to 75°C, DIN/Wall Mount, TAA

Toronto Stock: 9 available

Manufacturer Warehouse: 204 available
*Items typically ship within 3-4 weeks if stock at factory

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

8 auto-negotiable 10/100 Mbps RJ45 ports connect devices over a LAN
Fast industrial-grade switch supports operating temperature range of -40° to 75°C
Easy-to-read LEDs indicate connection and activity status for all 8 Ethernet ports
Plug-and-play operation with no software or configuration required before use
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Features

8-Port Unmanaged Ethernet Switch Connects Your Devices to a LAN
This space-saving switch transmits data over an Ethernet network. Eight auto-negotiating 10/100 Mbps ports send data only to the devices designated to receive it, which improves the efficiency and potential throughput of the network.

Ruggedized Metal Housing Built to Last in Harsh Environments
The compact NFI-U08-1 adds 10/100 Mbps Ethernet capacity to your industrial and commercial applications, such as factory floors, warehouse operations and other environments with space constraints and wide temperature ranges. The IP30 industrial-grade aluminum case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 to 75 degrees Celsius (-40 to 167 degrees Fahrenheit).

Unmanaged Switch Requires Little to No Configuration
Quickly connect your network devices with little to no configuration. Alternative-language LEDs indicate when the switch is powered ON and which Ethernet ports are showing activity with connection speed. The NFI-U08-1 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. IEEE 802.3x flow control allows smooth transmission of large files.

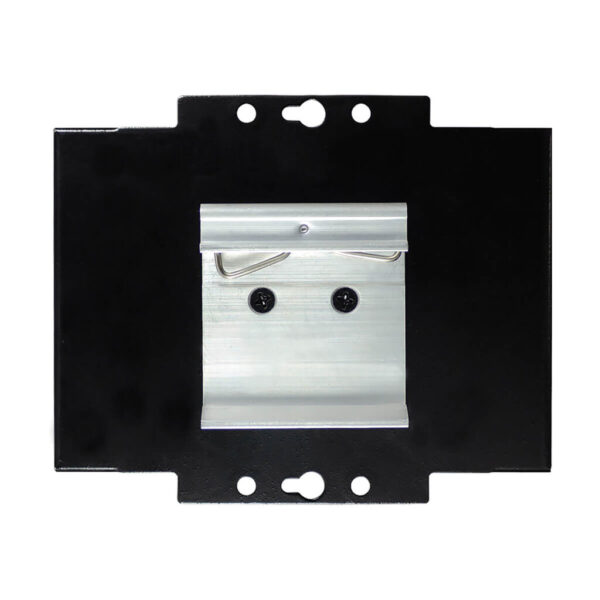

Pre-Installed DIN Rail Clip Allows for Convenient Installation
The open-type device may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. A 3-pin 18-30VDC terminal block supplies power input. Device power shall be supplied by 61010-2-201 R/C power with LPS (Limited Power Source).

TAA-Compliant for GSA Schedule Purchases
The NFI-U08-1 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Package Includes

NFI-U08-1 8-Port Unmanaged Fast Industrial Ethernet Switch
DIN rail-mounting clip (pre-installed)
Wall-mount bracket (pre-installed)
Owner’s manual

Weight	0.93 lbs
Dimensions	7.2 × 9.17 × 2.44 in
UPC Code	037332264275
Max Input Amps	0.2..
Number of Ports	8
Brand	Tripp Lite
Product Type	Unmanaged Industrial Fast Ethernet Switch
Maximum Input Amps Details	Maximum of 0.2A DC power. Device power shall be supplied by LPS (Limited Power Source).
Voltage Compatibility (VAC)	Input
Voltage Compatibility (VDC)	18-30
Input Plug Type	Hard-wire
Power Source	3-Pin Terminal Block
Power Consumption (Watts)	4.00
Ports	8
Ports Detail	8x 10/100Base-T
Network Switch Ports	(8) 10/100 (RJ45)
LED Indicators	1- PWR(Green): for Power; 2- 100(Green): for Ethernet speed 100Mbps; 3- LNK/ACT(Green): for data transmitting/receiving
Primary Form Factor	DIN-Rail; Wall-mount
Color	Black
Material of Construction	Metal casing
Shipping Dimensions (hwd / cm)	6.20 x 23.29 x 18.29
Shipping Weight (kg)	0.42
Unit Dimensions (hwd / cm)	3.0 x 10.9 x 7.3
Unit Weight (kg)	0.15
Storage Temperature Range	-40° to 185°F (-40° to 85°C)
Relative Humidity	5% to 95% (Non-Condensing)
Operating Temperature	-40 to 167 F (-40 to 75 C)
Network Compatibility	100 Mbps (Fast Ethernet)
Network Compatibility Details	Auto-negotiable
Switching Capacity	1.6Gbps
Switching Capacity Details	200Mbps Per Port with Full Duplex
Jumbo Frames	1536
MAC Auto Learning	Yes
Storm Control	No
Auto MDI/MDIX Crossover Detection	Yes
Product Compliance	RoHS; CE (Europe); IEEE 802.3 Auto-Negotiation; IEEE 802.3i 10Base-T; IEEE 802.3u 100Base-TX/FX; IEEE 802.3x Flow Control; REACH; FCC (USA); Trade Agreements Act (TAA)
Product Warranty Period (Worldwide)	3-year limited warranty
Input Plug	Hard-wire
