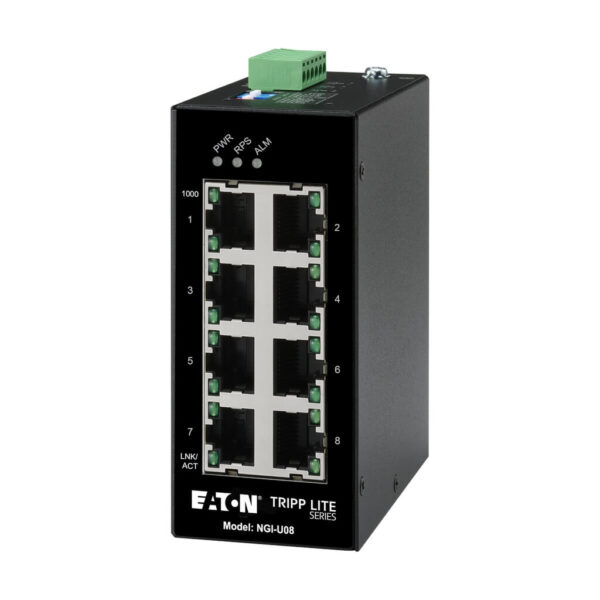

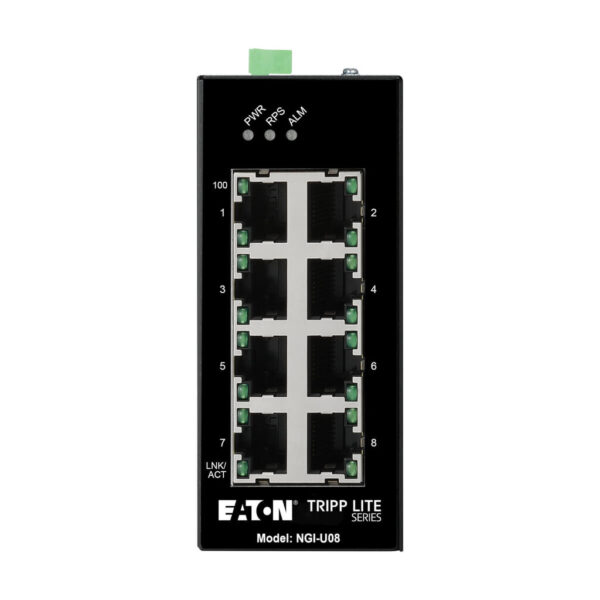

Tripp Lite series 8-Port Unmanaged Industrial Gigabit Ethernet Switch – 10/100/1000 Mbps, DIN Mount, TAA

Quick Specs

• 8 auto-negotiable 10/100/1000 Mbps RJ45 ports connect devices over a LAN
• Industrial-grade switch supports operating temperature range of -40° to 167°F
• Easy-to-read LEDs indicate connection and activity status for all Ethernet ports
• Plug-and-play operation with no software or configuration required before use
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Features

8-Port Unmanaged Gigabit Ethernet Switch Connects Your Devices to a LAN
This space-saving switch transmits data over a Gigabit Ethernet network. Eight auto-negotiating 10/100/1000 Mbps ports send data only to the devices designated to receive it, which improves the efficiency and potential throughput of the network.

Rugged Metal Housing Built to Last in Harsh Environments
The compact NGI-U08 adds 10/100/1000 Mbps Gigabit Ethernet capacity to your industrial and commercial applications, such as factory floors, warehouse operations and other environments with space constraints and wide temperature ranges. The industrial-grade high-strength case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 degrees to 167 degrees Fahrenheit.

Unmanaged Switch Requires Little to No Configuration
Quickly connect your network devices with little to no configuration. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NGI-U08 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. IEEE 802.3x flow control allows smooth transmission of large files. DIP switch supports an alarm relay output function in which you can connect an alarm light or buzzer.

Works with the Most Popular Web Browsers
The NGI-U08 is browser-based and works independently from the connected computer’s operating system. Because switch compatibility is based on common hardware standards, rather than system software dependencies, the NGI-U08 accommodates most platforms. Preferred web browsers include Google Chrome (on both Windows and macOS) and Microsoft Edge (Windows only).

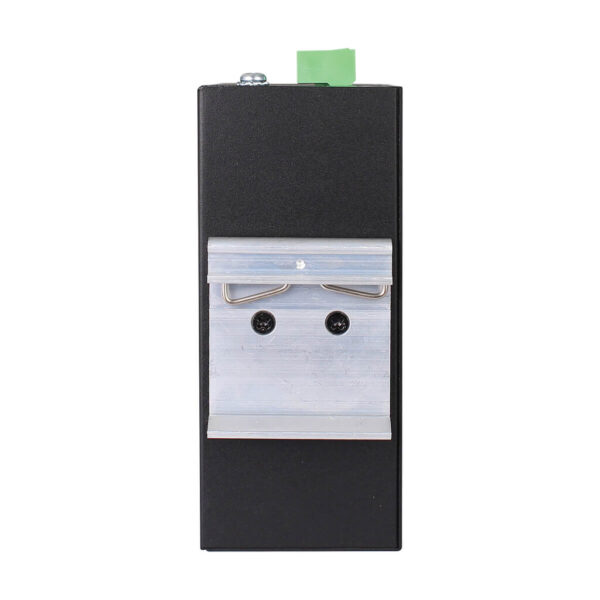

Pre-Installed DIN Rail Clip Allows for Convenient Installation

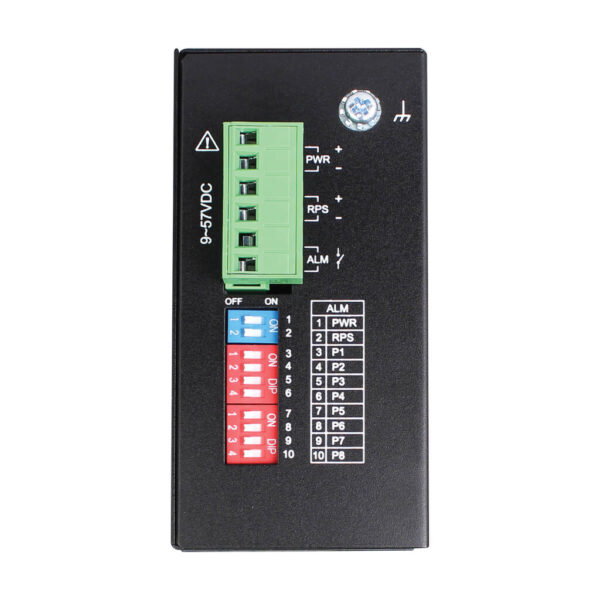

The switch may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. Providing seamless operation in the event of power dips or failures, the switch features redundant 6-pin 9–57 DC terminal block power inputs to help prevent unnecessary downtime. When used with two power sources, the switch also supports alarm relay contacts that you can wire to your existing alarm circuit to notify you instantly when a power disruption occurs. Device power must be supplied by LPS (Limited Power Source) circuit.

TAA-Compliant for GSA Schedule Purchases
The NGI-U08 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Package Includes

• NGI-U08 8-Port Unmanaged Industrial Gigabit Switch
• DIN rail-mounting clip (pre-installed)
• Owner’s manual
