Tripp Lite series OmniVS 230V 1500VA 940W Line-Interactive UPS, Extended Run, Tower, USB port, C13 Outlets

Quick Specs

• 1500VA / 1.5kVA tower 230V line interactive extended-run UPS
• Corrects brownouts and overvoltages from 151 to 282V
• USB port, TEL/DSL/ethernet protection, External battery pack options

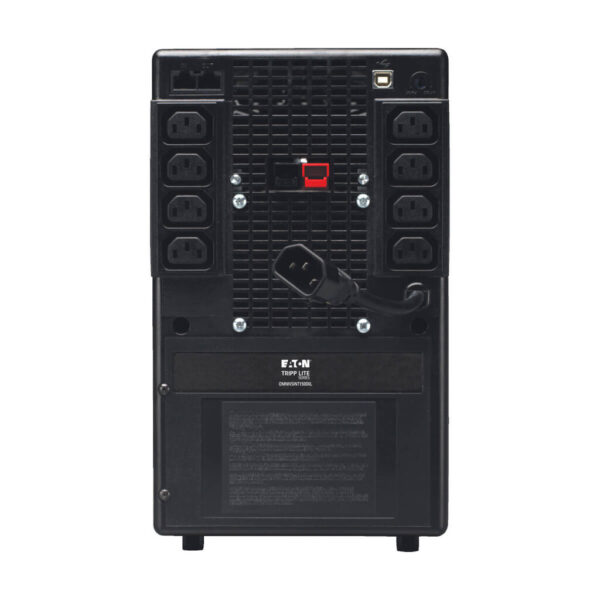

• C14 input and 8 C13 outlets
• Compatible with Eaton Tripp Lite power cords to simplify deployment and enhance reliability

Overview

The OMNIVSINT1500XL line-interactive UPS system offers voltage regulation, surge suppression and long-lasting, expandable battery support for personal computers, internetworking equipment and other sensitive electronics. Internal UPS circuits support entry-level PC systems for up to 75 minutes during power failures so that connected equipment can be shut down without data loss. Automatic Voltage Regulation (AVR) circuits regulate brownouts as low as 151V and overvoltages up to 282V back to usable 230V levels without using battery power. Offers complete desktop power protection in an attractive black tower configuration. Includes eight IEC320-C13 outlets with battery support and AC surge suppression. USB port enables optional unattended system shutdown without data loss in the case of extended power failure, USB cable included. PowerAlert® software available via free download. Built-in single-line RJ jacks protect modem, fax machine, Ethernet, cordless phone or other peripheral with a standard dialup/DSL phone connection. Built-in audible alarm and four front-panel LEDs indicate line power status, battery power status, battery low/replace status and voltage boost operation. 1500VA power handling ability supports entry-level PCs, network workstations, point-of-sale equipment, small business phone systems, audio/video equipment and home theater systems. Offers 4.5 minutes battery runtime with a full load of 1500VA and 13 minutes with a half load of 750VA. Supports hot-swappable battery replacement via built-in access panel. Extended runtime available with optional BP24V15RT2U or BP24V28-2U external battery packs.

Features

• OMNIVSINT1500XL Uninterruptible Power Supply offers voltage regulation, surge suppression and long lasting battery support
• Supports entry-level PCs up to 75 minutes during blackouts to enable shutdown without data loss, runtime is further expandable by connecting an external battery pack
• Regulates brownouts as low as 151 and overvoltages to 282V back to usable 230V nominal levels without using battery power
• 8 IEC320 C13 outlets with complete AC surge suppression
• C14 inlet accepts user-supplied AC power cord with country-specific plug
• USB port enables data-saving unattended shutdown when used with PowerAlert software, available via FREE download from tripplite.eaton.com/products/power-alert
• Dataline surge suppression protects standard dialup/DSL or Ethernet line connection

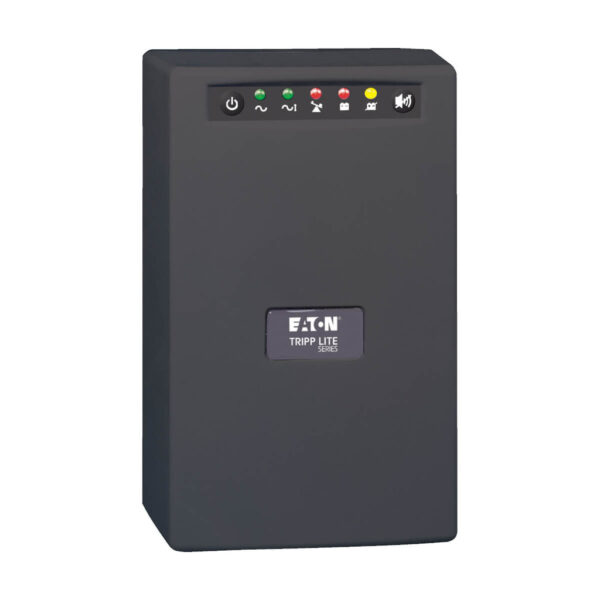

• Audible alarm and 4 front panel LEDs offer complete UPS and line power status information
• 1500VA power handling ability supports a variety of sensitive electronic equipment
• 4.5 minutes full load runtime (1500VA), 13 minutes half load runtime (750VA)
• Runtime is further expandable with the addition of external battery packs
• Supports hot swappable battery replacement via built-in access panel
• Optional PDUBHV10 bypass PDU enables hot-swappable UPS replacement with no disruption to connected equipment
• Attractive full color retail packaging

Package Includes

• OMNIVSINT1500XL line interactive UPS
• 2 C13 to C14 interconnection cables
• USB and phone line cables
• Owner’s manual with warranty information
