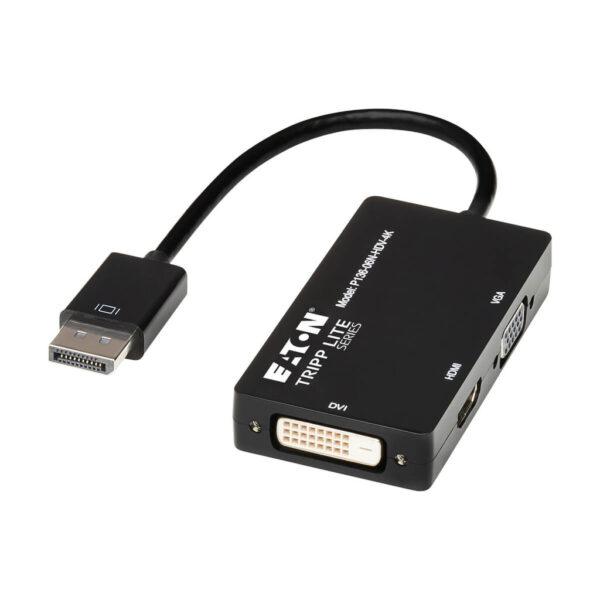

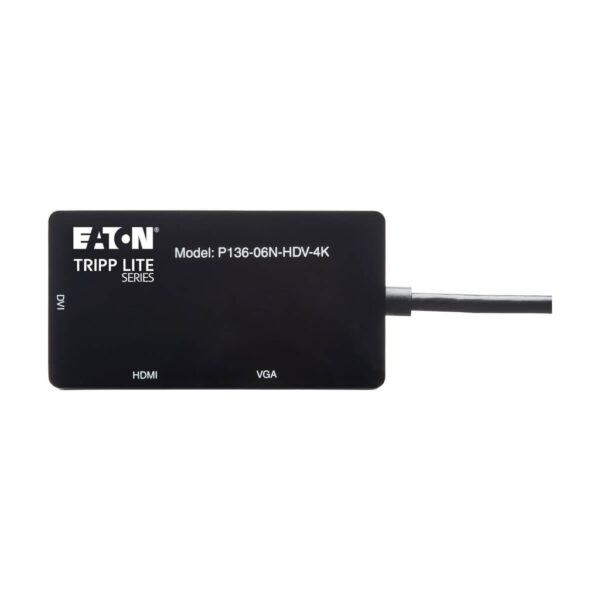

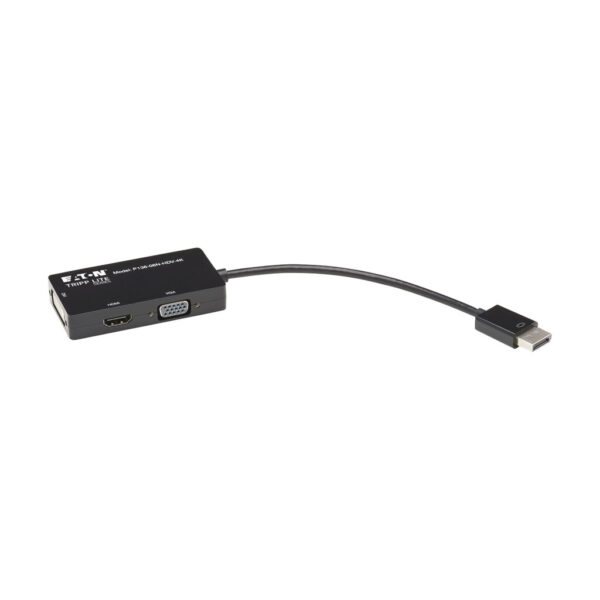

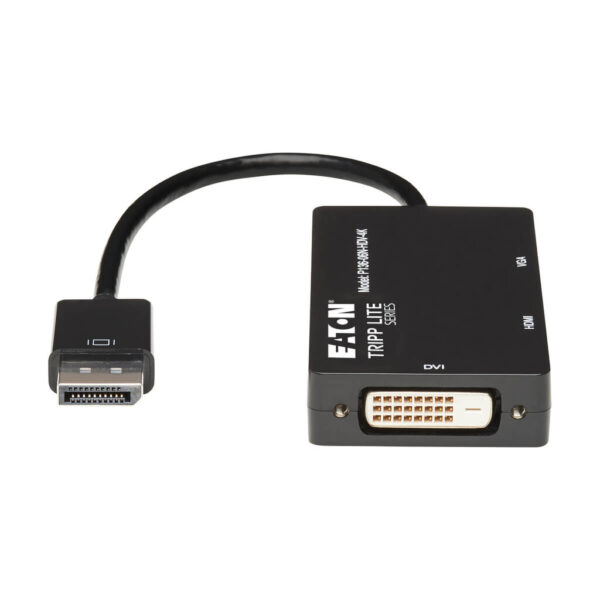

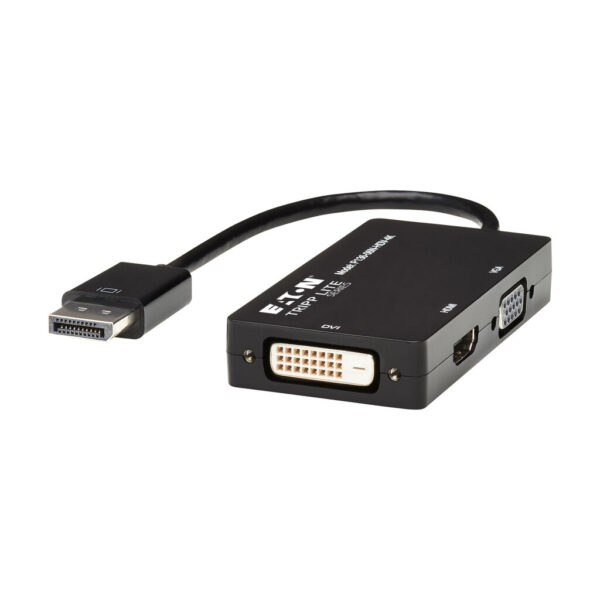

Tripp Lite series DisplayPort to VGA/DVI/HDMI All-in-One Converter Adapter, DP ver 1.2, 4K 30 Hz HDMI

Quick Specs

• Separate DVI, HD15 and HDMI female connectors
• HDMI port supports UHD 4K x 2K @ 24/30 Hz video resolutions
• Passive adapter requires connected computer to have DP++ port
• Plug and play—no software, drivers or power supply needed
• Small size for easy carrying in laptop bag or briefcase

Overview

No more carrying around separate adapters for various monitors, projectors and televisions. The P136-06N-HDV-4K DisplayPort 1.2 to VGA/DVI/HDMI All-in-One Converter Adapter connects your laptop or tablet’s DisplayPort to a VGA, DVI or HDMI display. The simple all-in-one solution for displaying content on a larger screen, the P136-06N-HDV-4K is ideal for trade shows, classrooms, lecture halls and other presentations.

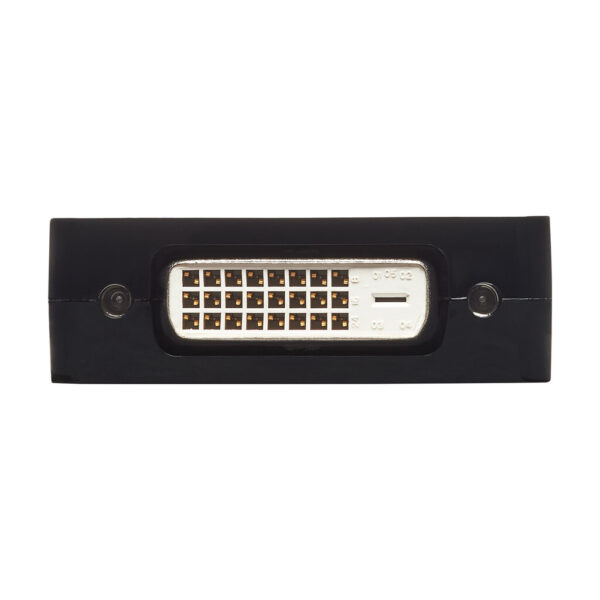

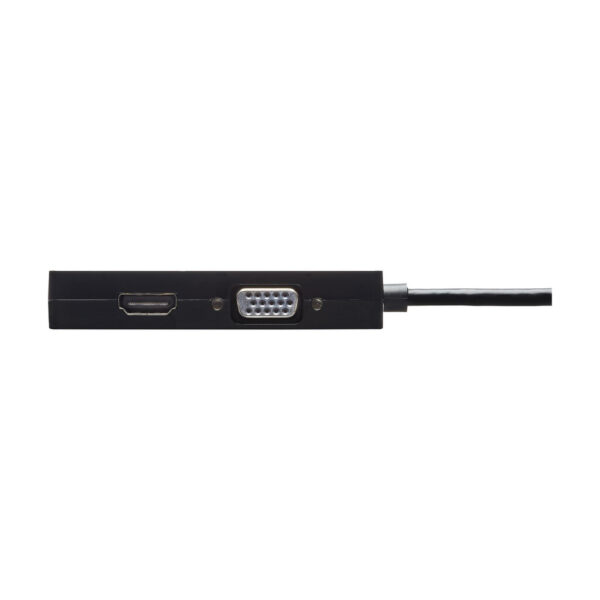

The all-in-one unit contains separate female DVI, HD15 and HDMI ports. It supports video resolutions up to 1920 x 1080 (DVI); 1920 x 1200, including 1080p (HD15); and 3840 x 2160 (HDMI). It also supports 36-bit Deep Color (12 bits per channel). The passive adapter requires the connected computer to have a DP++ (DisplayPort++) port.

The P136-06N-HDV-4K is compatible with laptops, tablets and other devices equipped with a female DisplayPort. It’s completely plug-and-play with no software, drivers or external power supply needed. With its small size and built-in cable, the P136-06N-HDV-4K is perfect for stowing in your laptop bag and carrying to school, the office or the latest trade show.

Features

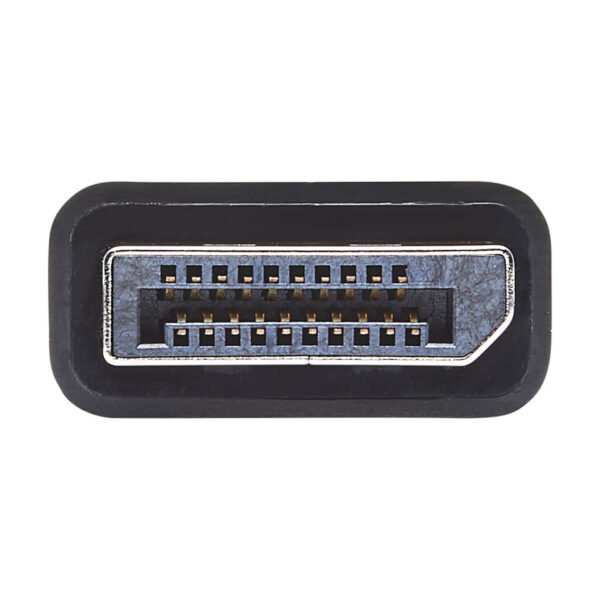

Connects Your DisplayPort Laptop or Tablet to a VGA, DVI or HDMI Display

• Recommended for trade shows, classrooms, lecture halls and other presentations
• DVI port supports video resolutions up to 1920 x 1080 (1080p)
• HD15 port supports video resolutions up to 1920 x 1200, including 1080p
• HDMI port supports UHD video resolutions up to 3840 x 2160 (4K x 2K) @ 24/30 Hz
• Supports 36-bit Deep Color (12 bits per channel)
• 7.1 Audio Surround Sound only supported by HDMI

Plug-and-Play Convenience

• No software, drivers or external power supply required
• Small enough to stow in laptop bag or briefcase
• Passive adapter requires connected computer to have DP++ port

System Requirements

• The P136-06N-HDV-4K is a Passive adapter, and requires the connected computer to have a DP++ ( Displayport ++ ) port

Package Includes

• P136-06N-HDV-4K DisplayPort 1.2 to VGA/DVI/HDMI All-in-One Converter Adapter, 6 in.
• Owner’s manual
