Tripp Lite series HDMI over Dual Cat5/Cat6 Extender Wall Plate Kit with Transmitter and Receiver, TAA

Quick Specs

• Extends a 1080p (24Hz) or 1080i (60 Hz) signal up to 150 ft. (45.72 m) using 24 AWG, Solid Wire Cat6* cabling (N222-Series, or N224-Series )
• Extends a 3D signal up to 100 ft. (30.5 m) using 24 AWG, Solid Wire Cat6 cabling
• Supports 24-bit True Color (8-bits per channel)
• Supports DTS-HD, Dolby True HD and 7.1 Channel Surround Sound Audio
• Supports HDCP, EDID and DDC
• No external power required

Overview

This HDMI Over Dual Cat5 Extender Wall Plate Kit is the perfect solution for those who need to extend a HDMI signal over a long distance over two Cat5/6 cables.

• When using 24 AWG Solid Wire Cat6 cable, a 1080p (24 Hz) or 1080i (60 Hz) signal can be extended up to 150 feet from the source.
• When using 24 AWG Solid Wire Cat6 cable, a 3D signal can be extended up to 100 feet.
• When using 24 AWG Solid Wire Cat5 cable, a 1080p (24 Hz) or 1080i (60 Hz) signal can be extended up to 100 feet (30.5 meters) from the source.
• When using 24 AWG Solid Wire Cat5 cable, a 3D signal can be extended up to 50 feet

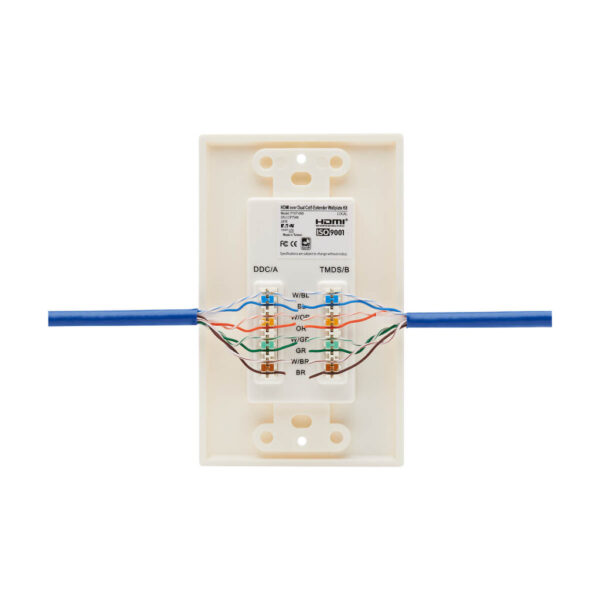

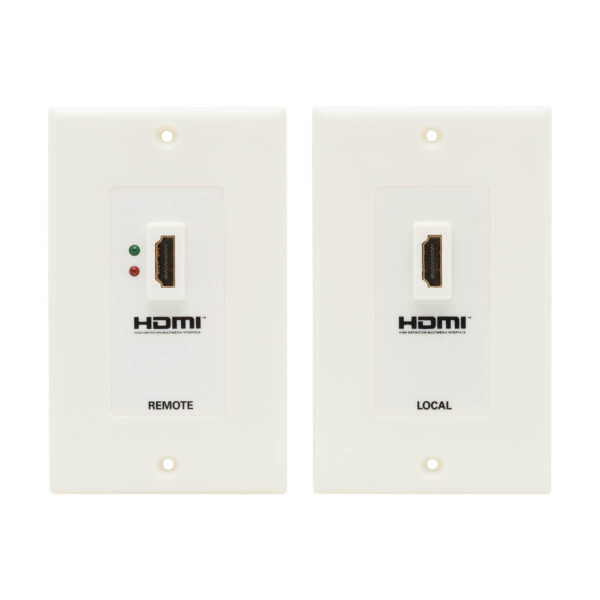

Simply run two Cat5/6 cables between the local transmitter and remote receiver wall plates, and plug in standard HDMI cables to the HDMI source and the display. The green LED on the remote receiver wall plate lets you know that power from the source and monitor. When functioning properly, only the green LED will be lit. If the red LED is illuminated, it means the remote receiver is not receiving a functional signal from the source.

The P167-000 comes with both local transmitter and remote receiver wall plates. DTS-HD, Dolby True HD and 7.1 Channel Surround Sound audio are supported, and it is compliant with HDCP, EDID and DDC. 24-bit True Color (8 bits per channel) is supported. No external power is required. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Features

• Extends a 1080p (24Hz) or 1080i (60 Hz) signal up to 150 ft. using 24 AWG Solid Wire Cat6* cabling (N222-Series, or N224-Series )
• Extends a 1080p (24Hz) or 1080i (60 Hz) signal up to 100-ft. (30.5 m) using 24 AWG Solid Wire Cat5 cabling
• Extends a 3D signal up to 100-ft. (30.5 m) using 24 AWG Solid Wire Cat6 cabling, or up to 50 ft. using 24 AWG Solid Wire Cat5 cabling
• Supports DTS-HD, Dolby True HD and 7.1 Channel Surround Sound Audio
• Supports HDCP, EDID and DDC
• Supports 24-bit True Color (8-bits per channel)
• No external power required
• Use P568-Series HDMI cables from wallplates to devices
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

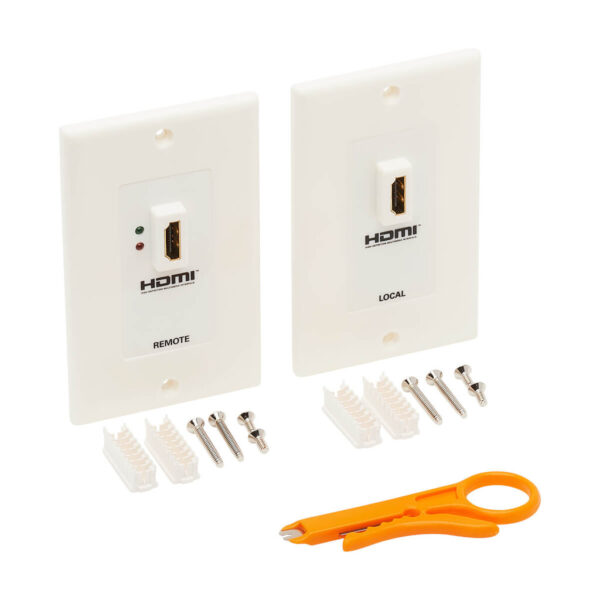

Package Includes

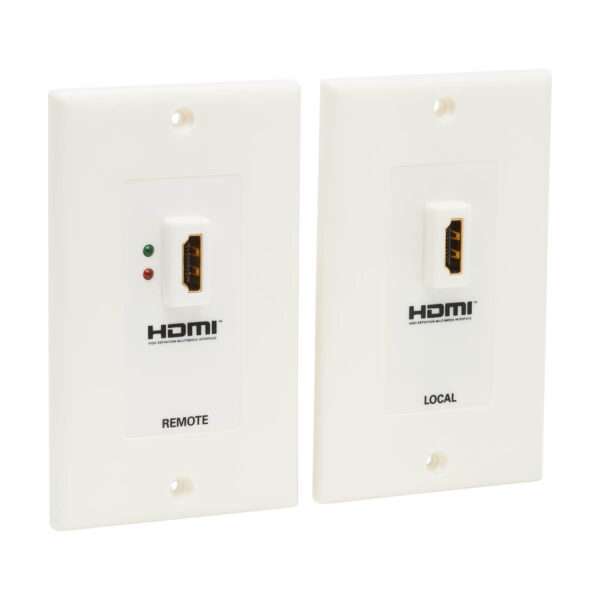

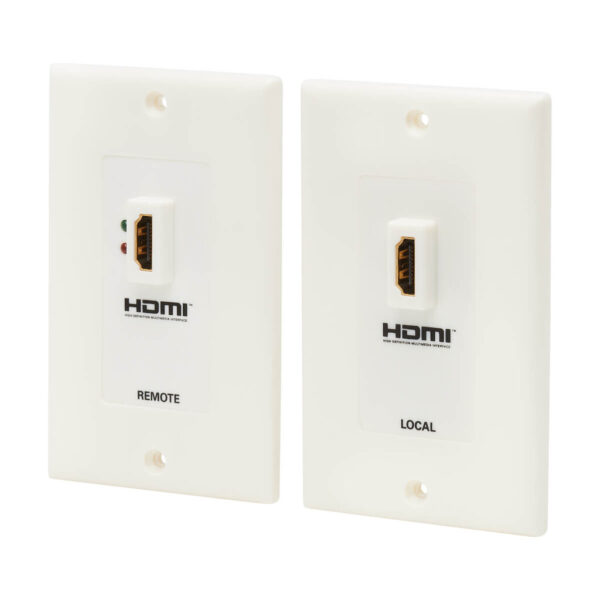

• Local Transmitter and Remote Receiver Wallplates
• 110 Punchdown Tool
• (x4) Wallplate Screws
• Owner’s Manual
