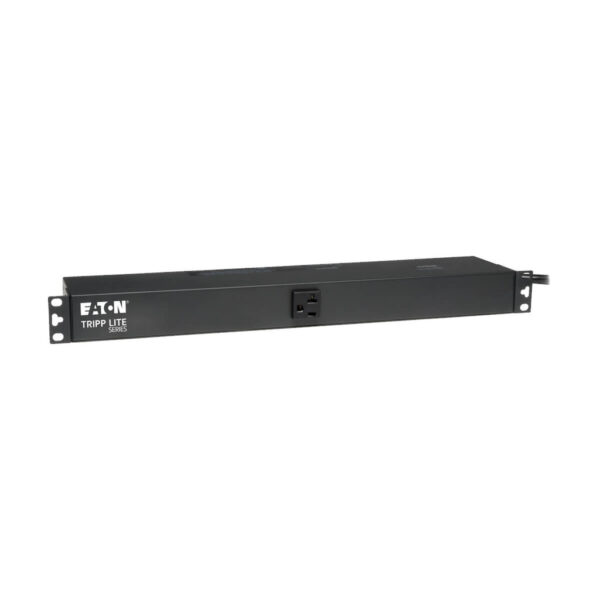

Tripp Lite series 2.4kW 120V Single-Phase Basic PDU – 13 NEMA 5-15/20R Outlets, 5-20P Input, 6 ft. (1.83 m) Cord, 1U Rack-Mount

Quick Specs

• Ideal no-frills PDU for telecom, security, audio/video and other network applications
• 13 NEMA 5-15/20R outlets distribute AC power to connected equipment
• Switchless design helps prevent accidental shutdowns that can lead to costly downtime

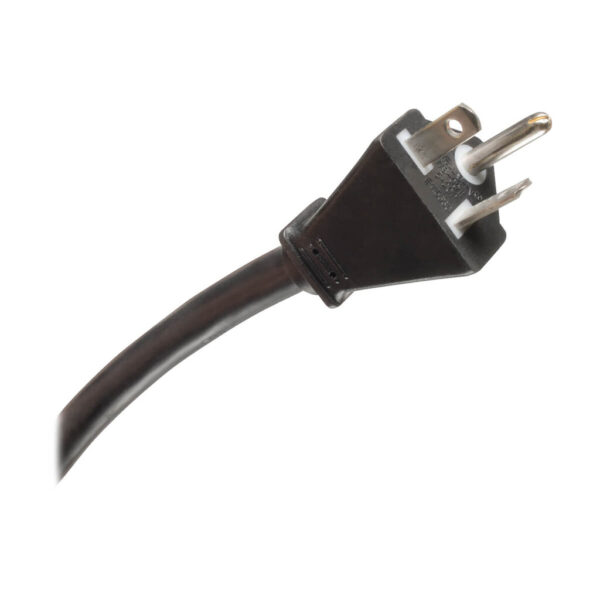

• 6-ft. (1.83 m) cord with NEMA 5-20P single-phase input connects to AC power source
• Flexible installation options include 1U and 0U rack, under counter and on wall

Features

Single-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads

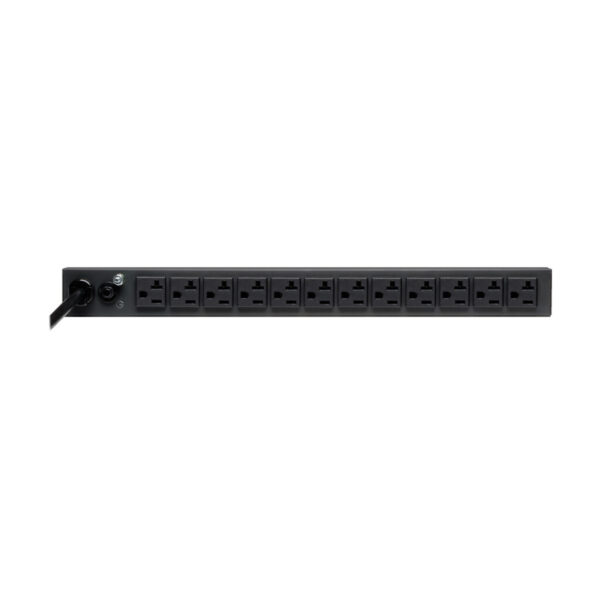

This basic rack PDU (rPDU) is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for high-density IT environments, the PDU1226 features a single breakered load bank with 13 NEMA 5-15/20R outlets – 12 in the rear and one in front. A 6-ft. (1.83 m) cord with NEMA 5-20P input plug connects to your facility’s AC power source, generator or protected UPS system to distribute power to connected loads.

Up-to-Date Safety Features Protect Your Vital Equipment
The switchless design helps prevent an accidental shutdown, which could lead to costly downtime. A 20A circuit breaker protects connected components from dangerous overloads.

Versatile Installation Options Give You Plenty of Choices
The reversible all-metal housing comes with mounting brackets for installation in 1U or 0U of space in an EIA-standard 19-inch rack. You can also reorient the brackets for permanent mounting under a counter or on a wall with user-supplied hardware.

Package Includes

• PDU1226 2.4kW 120V Single-Phase Basic PDU
• Rack-mounting hardware
• Owner’s manual
