Tripp Lite series 5.7kW 3-Phase Local Metered PDU, 208/120V Outlets (36 C13, 6 C19, 6 5-15/20R), L21-20P, 6 ft. (1.83 m) Cord, 0U Vertical, TAA

$764.58

Brand: Tripp Lite
Part Number (MPN): PDU3MV6L2120
UPC / GTIN: 037332163929
Datasheet: PDF

Tripp Lite series 5.7kW 3-Phase Local Metered PDU, 208/120V Outlets (36 C13, 6 C19, 6 5-15/20R), L21-20P, 6 ft. (1.83 m) Cord, 0U Vertical, TAA

Toronto Stock: 1 available
Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

  • Local Metered 5.7kW 3 Phase 208/120V PDU; 70 in. / 178cm 0U vertical rackmount
  • Reports input current per-phase via built in current meters
  • NEMA L21-20P (3P+N+E) 208V 3 phase input; 6 ft. (1.83 m) line cord
  • 48 outlets total; 36 C13 (208V), 6 C19 (208V) and 6 NEMA 5-15/20R (120V)
  • Compatible with Eaton Tripp Lite power cords to simplify deployment and enhance reliability

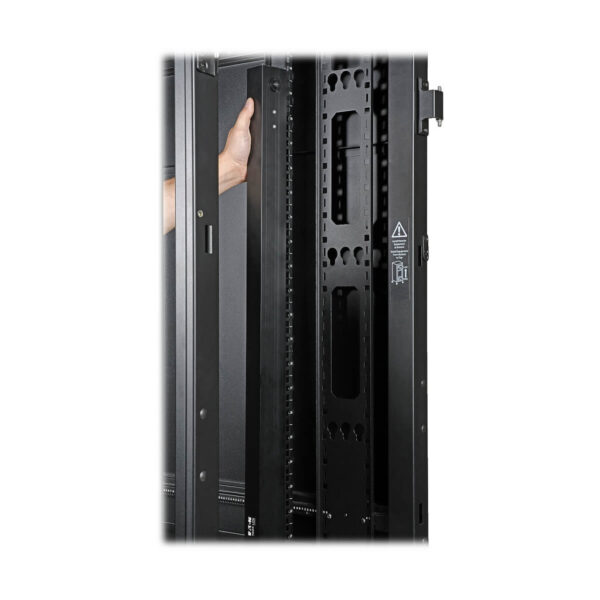

  • Toolless button-mount installation; cord retention brackets included
  • TAA Compliant

Features

  • 5.7kW 3 phase 208/120V Local Metered Power Distribution Unit / rack PDU (rPDU)
  • Set of 3 built-in current meters continuously report input current per phase

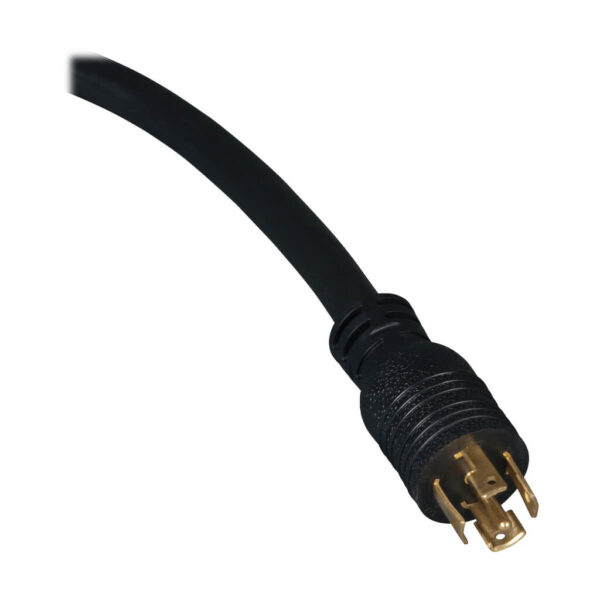

  • Attached NEMA L21-20P 20A (3P+N+E) 208V 3 phase input plug with 6 ft. / 1.8m cord

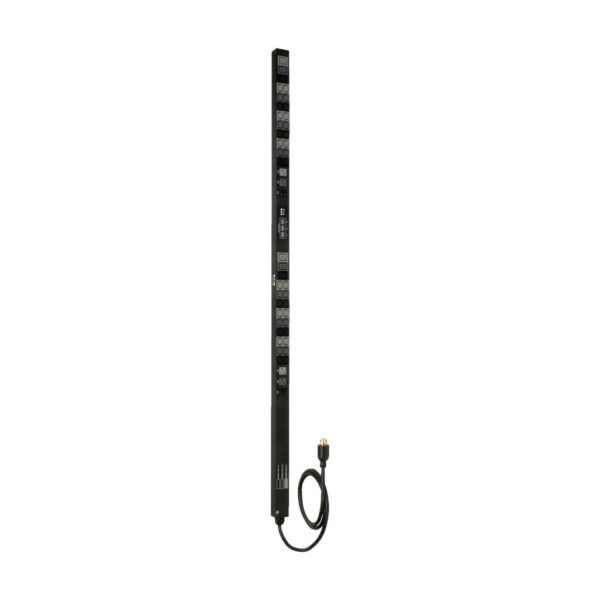

  • 0U, 70 in. / 178cm vertical form factor supports installation in 2 or 4 post equipment racks
  • 48 total outlets arranged in three single phase output load banks

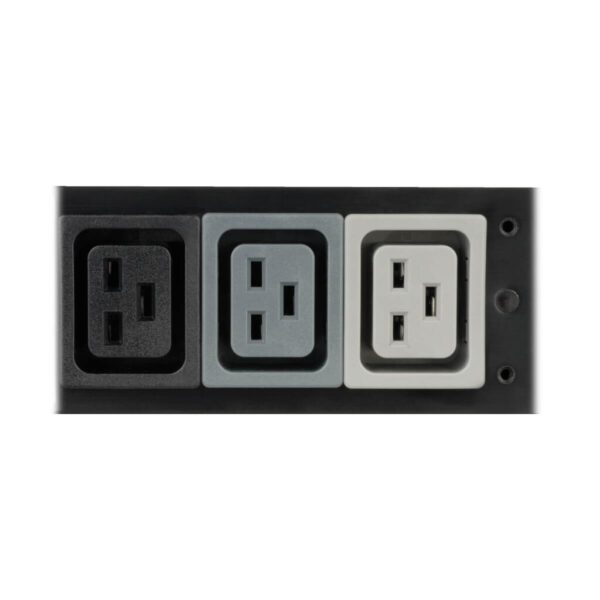

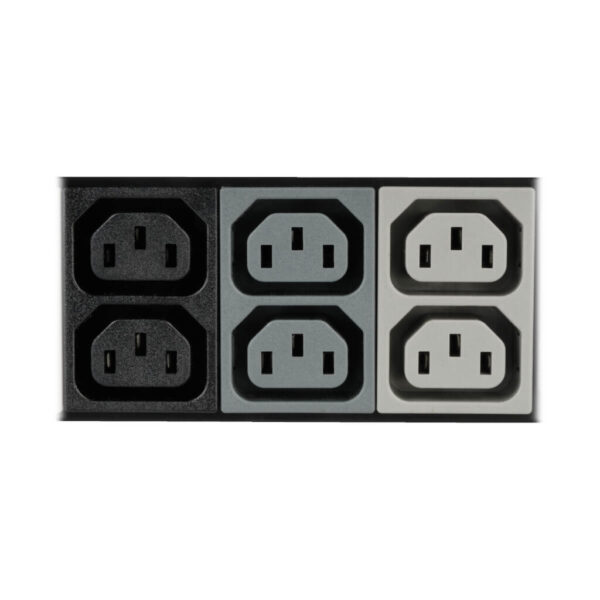

  • 36 C13 and 6 C19 outlets output 208V

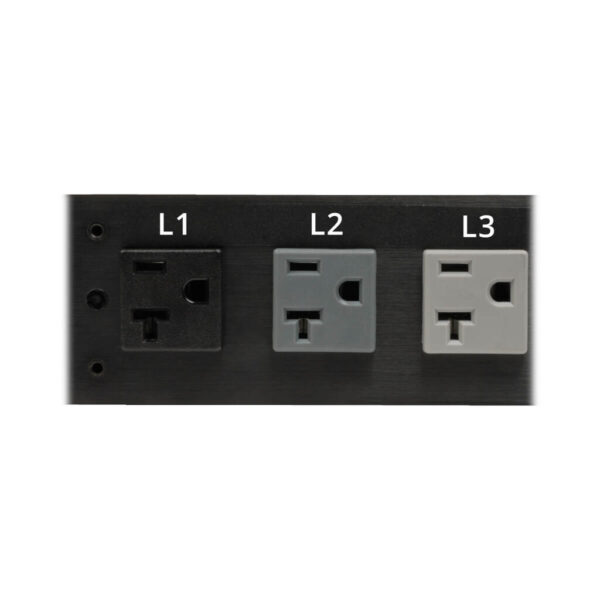

  • 6 NEMA 5-20R outlets output 120V
  • Included cord retention brackets keep vital network equipment plugged in and continuously powered
  • Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications (set of 2 9mm buttons pre-installed, 2 9mm and 4 6mm spare buttons included)
  • Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases

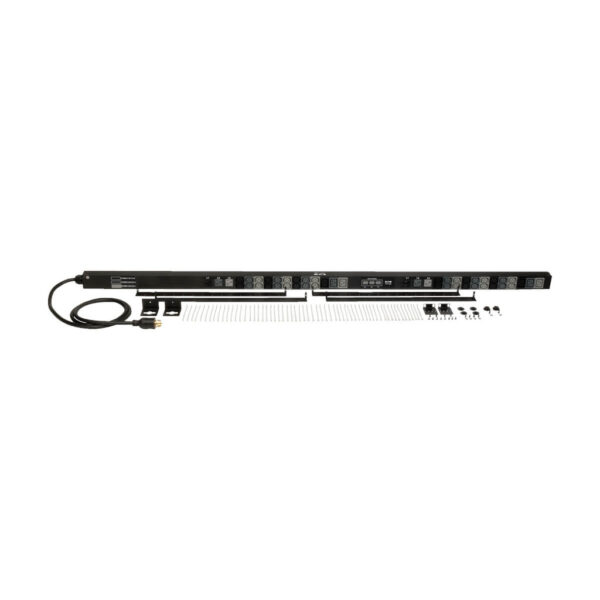

Package Includes

  • Local Metered Rackmount PDU with pre-installed mounting buttons
  • Cord retention brackets
  • Spare installation buttons (2 9mm / 4 6mm)
  • Rack mounting brackets
  • Owner’s manual
Weight 15.4 lbs
Dimensions 76.2 × 6.8 × 5.4 in
UPC Code

037332163929
Cord Length

6
Max Input Amps

16
Brand

PDU Type

Local Metered
Input Phase

3-Phase
PDU Input Voltage

208
Recommended Electrical Service

Three-phase 20A 208V service
Maximum Input Amps Details

Agency de-rated to 16A continuous
PDU Plug Type

NEMA L21-20P
Input Cord Length (m)

1.83
Output Capacity Details

5.7kW (208/120V) total capacity; 9.2A (208V) max per output phase (L1-L2, L2-L3, L3-L1) / 16A (120V) max per output phase (L1, L2, L3)
Frequency Compatibility

50 / 60 Hz
Output Receptacle Details

5-15/20R outlets provide 120V output; C13 and C19 outlets provide 208V output; Compatible with Eaton Tripp Lite Power Cords
Output Receptacles

(6) 5-15/20R; (36) C13; (6) C19
Output Nominal Voltage

208/120V
Reported Load Segments

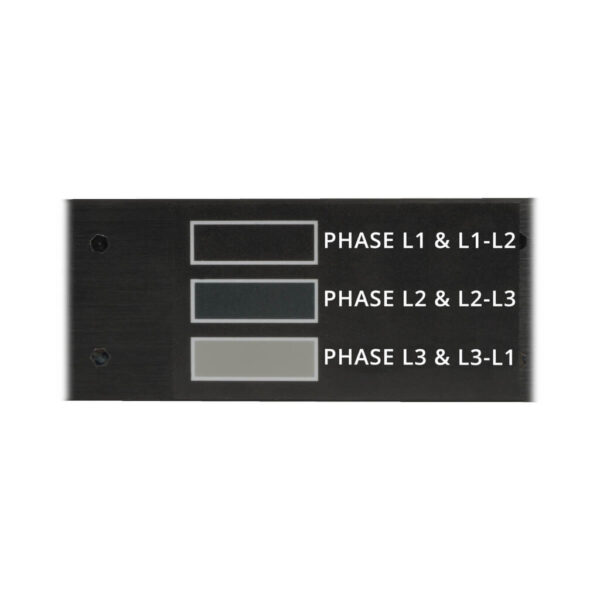

Supports monitoring of input current per phase (9.2A balanced max. per L1, L2 and L3); Outlets are color-coded and labeled for phase and load bank identification; L1-L2 feeds black C13/C19 outlets; L2-L3 feeds dark-gray C13/C19 outlets; L3-L1 feeds light-gray C13/C19 outlets; L1-N feeds black 5-20R outlets; L2-N feeds dark-gray 5-20R outlets; L3-N feeds light-gray 5-20R outlets
Front Panel LCD Display

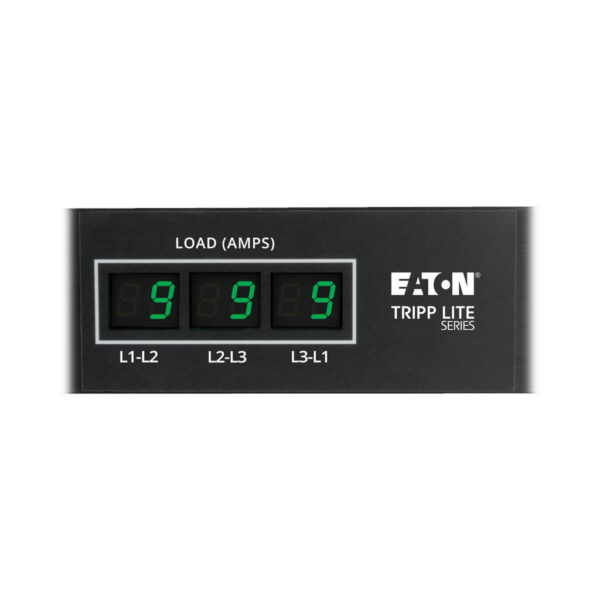

Set of 3 digital current meters report input current per phase
Material of Construction

Metal
Rack Height

0U
Form Factors Supported

Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks
PDU Form Factor

Vertical (0U)
Shipping Dimensions (hwd / cm)

13.72 x 17.27 x 193.55
Shipping Weight (kg)

6.99
Unit Dimensions (hwd / cm)

177.8 x 6.73 x 4.34
Unit Weight (kg)

5.72
Operating Temperature Range

32° to 104°F (0° to 40°C)
Storage Temperature Range

-22° to 140°F (-30° to 60°C)
Relative Humidity

5% to 95% non-condensing
Operating Elevation

0-10000 ft. (0-3000 m)
Product Certifications

RETIE (Colombia); NOM (Mexico); UL 62368-1
Product Compliance

RoHS; FCC Part 15 Class A (USA); Trade Agreements Act (TAA)
Product Warranty Period (Worldwide)

2-year limited warranty
