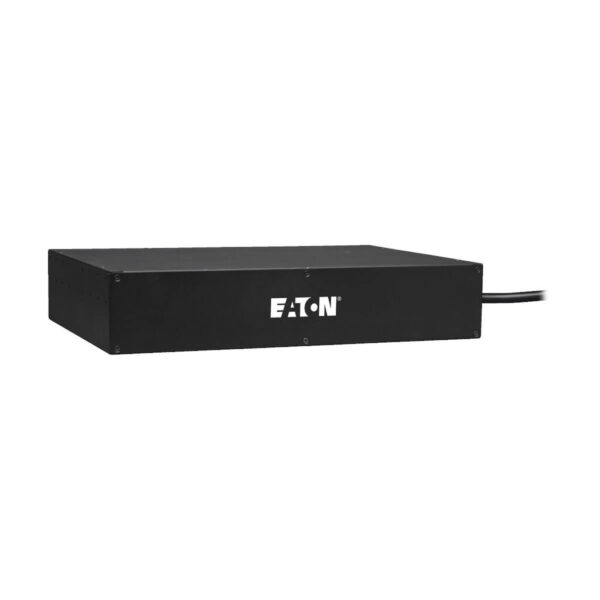

Eaton 5.5kW Single-Phase Switched PDU - LX Interface, 208/230V Outlets (16 C13), L6-30P Input, 12 ft. (3.66 m) Cord, 2U Rack-Mount, TAA

Eaton 5.5kW Single-Phase Switched PDU – LX Interface, 208/230V Outlets (16 C13), L6-30P Input, 12 ft. (3.66 m) Cord, 2U Rack-Mount, TAA

Name: Eaton 5.5kW Single-Phase Switched PDU - LX Interface, 208/230V Outlets (16 C13), L6-30P Input, 12 ft. (3.66 m) Cord, 2U Rack-Mount, TAA
Brand: Tripp Lite
SKU: PDUMH30HVNET
Price: 1235.02 CAD
Availability: InStock

$1,235.02

Brand: Tripp Lite

Part Number (MPN): PDUMH30HVNET

UPC / GTIN: 037332139320

Datasheet: PDF

Eaton 5.5kW Single-Phase Switched PDU – LX Interface, 208/230V Outlets (16 C13), L6-30P Input, 12 ft. (3.66 m) Cord, 2U Rack-Mount, TAA

Toronto Stock: 1 available

Manufacturer Warehouse: 78 available
*Items typically ship within 3-4 weeks if stock at factory

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Switched 24A 208/230V PDU, 2U horizontal rackmount format
Pre-installed WEBCARDLX with latest version of PADM20 for IP-based Auto Probe feature
Visual current meter, Reversible housing
NEMA L6-30P input plug with attached 12 ft. (3.7 m) line cord
16 switched C13 outlets
Compatible with Eaton Tripp Lite power cords to simplify deployment and enhance reliability
Temperature, humidity and contact closure monitoring options

Features

24A 208/230V Switched Power Distribution Unit / rack PDU (rPDU) with built-in web/network interface (Agency derated to 24A continuous)
Attached L6-30P 208/230V single phase input, 12-ft. (3.66 m) input cord
2U horizontal rack-mount form factor

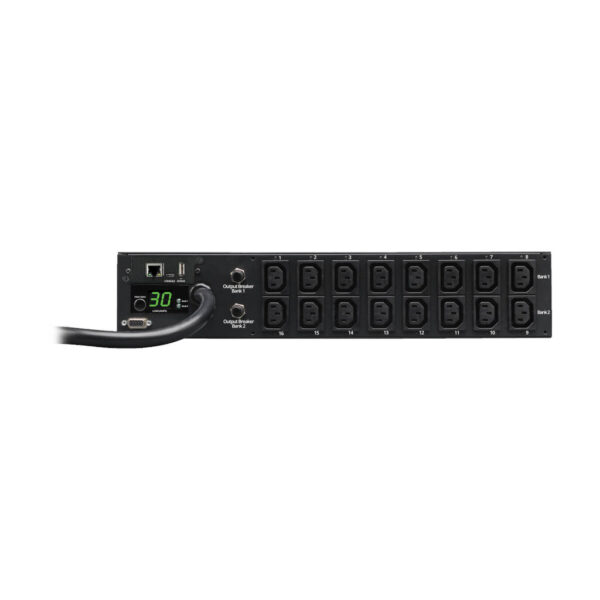

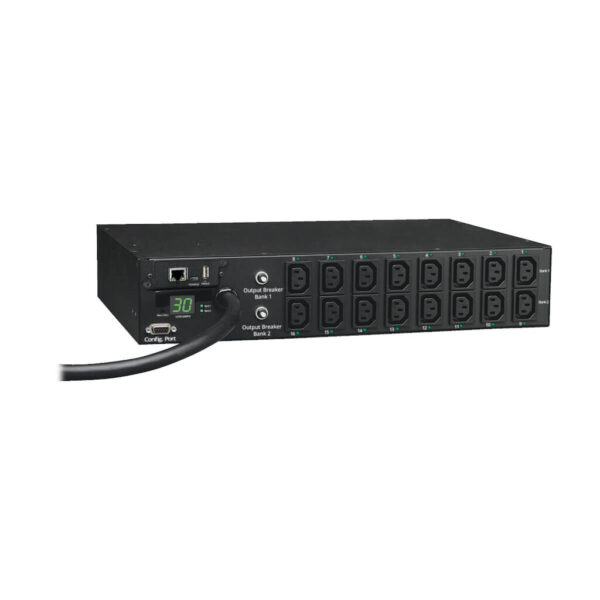

16 switched C13 outlets
Supports power-on, power-off or reboot of each outlet on a real-time or programmable basis
Enables reboot of locked equipment, custom power-on/power-off sequences, load-shedding of optional loads and disabling unused outlets
Network interface provides PDU control and data regarding input voltage and total output load level in amps
Digital display continuously reports output load in amps in 3 segments (load bank 1, load bank 2, total)
Supports user-specified alarm notification thresholds
DHCP/Manual configuration support
10/100 Mbps auto-sensing
Real-time clock backup maintains the time of day and date even if the PDU is unpowered
Tiered access privileges allow an administrator and a guest to login via web browser
Alert notifications via email or SNMP traps offer immediate event notification
Firmware upgrade ability supports future product enhancements
Pre-installed WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
IP-based Auto Probe detects lost connectivity and restores service autonomously
2U horizontal rack installation supported in 2- or 4-post racks with included mounting brackets
Mounting brackets support wall-mount and under-counter installation in many applications
Includes 16 plug retention sleeves
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Package Includes

PDUMH30HVNET Rackmount Switched PDU
(2) 2U mounting brackets and hardware
(16) IEC C13 plug retention sleeves
(1) Micro USB configuration cable (731689)
WEBCARDLX Owner’s Manual
PDUMH30HVNET Owner’s Manual

Weight	17 lbs
Dimensions	19.6 × 16.7 × 7.8 in
UPC Code	037332139320
Cord Length	12.01
Max Input Amps	24
Rack Depth	14.8
Brand	Tripp Lite
PDU Type	Switched
Input Phase	Single-Phase
PDU Input Voltage	208; 230
Recommended Electrical Service	Single-phase 30A 208/230V service
Maximum Input Amps Details	Agency de-rated to 24A continuous
PDU Plug Type	NEMA L6-30P
Input Cord Length (m)	3.66
Output Capacity Details	5.5kW (230V), 5kW (208V) total capacity / 30A max (Agency de-rated to 24A), 15A max per breakered outlet bank; 12A max per C13 outlet
Frequency Compatibility	50 / 60 Hz
Output Receptacle Details	Compatible with Eaton Tripp Lite Power Cords
Output Receptacles	(16) C13
Output Nominal Voltage	208/230V
Overload Protection	Two 15A breakers protect 8 outlets each
Customized Load Management Receptacles	Each outlet is individually controllable via remote interface
Front Panel LCD Display	Digital display reports output amps in 3 separately metered loading segments (BANK 1: Outlets #1-8; BANK 2: Outlets #9-16; BANK 3: All outlets combined)
Switches	Pushbutton near the digital current meter advances the display of output current for Bank 1, Bank 2 and Banks 1&2 combined; WEBCARDLX: Recessed reset button
LED Indicators	16 power availability LEDs confirm power off/on status for each built-in outlet; Two additional LEDs identify which bank the visual current meter is reporting (Bank 1, Bank 2 or Banks 1&2 combined); WEBCARDLX: Green LX management card status LED, Yellow Network Link/Activity LED, Green network speed LED
Material of Construction	Metal
Rack Height	2U
Form Factors Supported	2U rackmount. Includes mounting accessories sutible for 4 post & 2 post racks installation
Minimum Required Rack Depth (cm)	37.59
PDU Form Factor	Horizontal (2U)
Shipping Dimensions (hwd / cm)	19.81 x 42.42 x 49.78
Shipping Weight (kg)	7.71
Unit Dimensions (hwd / cm)	8.9 x 44.5 x 31.75
Unit Weight (kg)	6.26
Operating Temperature Range	32° to 104°F (0° to 40°C)
Storage Temperature Range	-22° to 122°F (-30° to 50°C)
Relative Humidity	5% to 95% non-condensing
Operating Elevation	0-10000 ft. (0-3000 m)
PowerAlert Software	LX Platform Interface: PowerAlert Device Manager
Communications Cable	Micro-USB- to-USB A configuration/console Access cable
Network Monitoring Port	RJ45 Network port, Micro-USB Configuration port, USB A port supports a variety of Envirosense2 environmental and control modules. See Accessories>Management Hardware section for more information about these modules.
SNMP Compatibility	Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, Telnet, SSH, CLI and SNMP management systems
Network Compatibility	10 Mbps; 100 Mbps (Fast Ethernet)
High Availability PDU Features	Auto Probe Monitoring and Reboot (included); Auto Load Shedding
Product Certifications	NOM (Mexico); UL 60950-1
Product Compliance	RoHS; FCC Part 15 Class A (USA); Trade Agreements Act (TAA)
Product Warranty Period (Worldwide)	2-year limited warranty
WEXT1G	Extended Warranty and Technical Support for Select Products – KVM, PDUs, Inverters
WEXT2G	Extended Warranty and Technical Support for Select Products – KVM Switches, PDUs, Power Inverters
WEXT3G	Extended Warranty and Technical Support for Select Products – KVM, PDUs, Power Inverters
