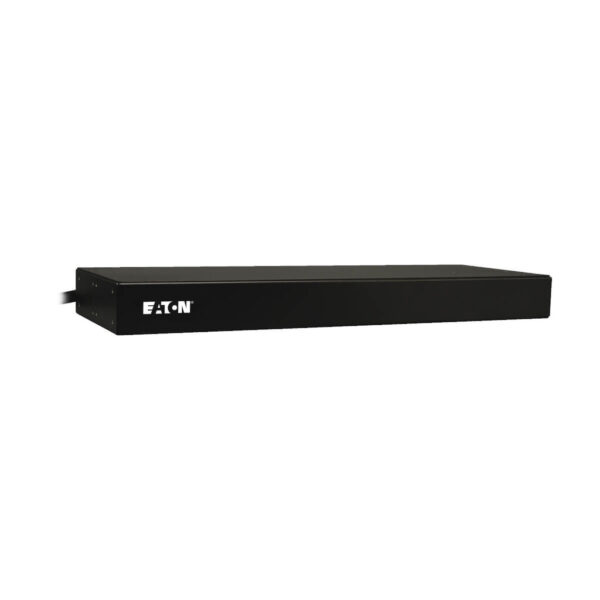

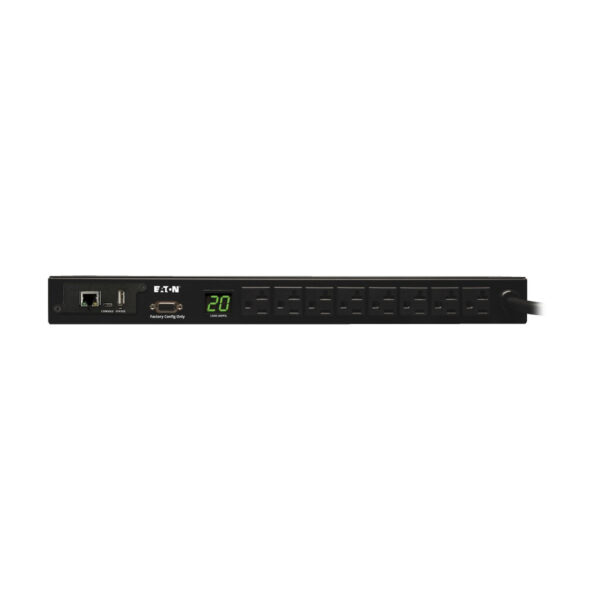

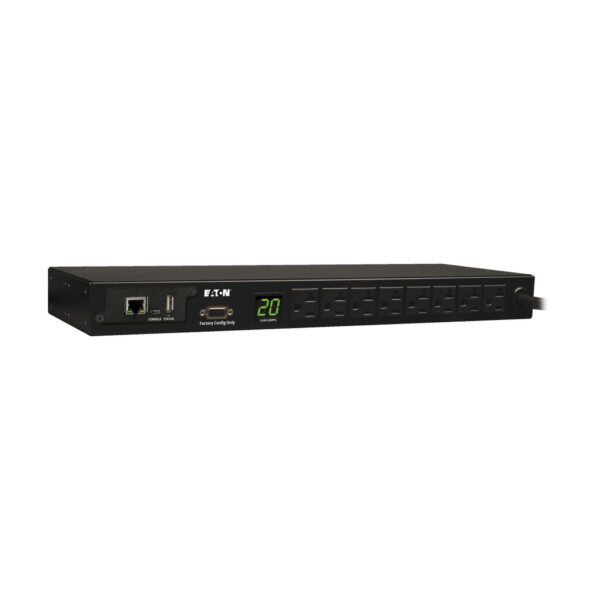

Tripp Lite 1.9kW 1-Phase Monitored PDU, 120V Outlets (8 5-15/20R), L5-20P/5-20P Adapter, 12 ft. Cord, 1U Rack, LX Platform Interface, TAA - PDUMNH20

Tripp Lite 1.9kW 1-Phase Monitored PDU, 120V Outlets (8 5-15/20R), L5-20P/5-20P Adapter, 12 ft. Cord, 1U Rack, LX Platform Interface, TAA – PDUMNH20

Name: Tripp Lite 1.9kW 1-Phase Monitored PDU, 120V Outlets (8 5-15/20R), L5-20P/5-20P Adapter, 12 ft. Cord, 1U Rack, LX Platform Interface, TAA - PDUMNH20
Brand: Tripp Lite
SKU: PDUMNH20
Price: 696.77 CAD
Availability: InStock

$696.77

Brand: Tripp Lite

Part Number (MPN): PDUMNH20

UPC / GTIN: 037332152015

Datasheet: PDF

Eaton 1.9kW Single-Phase Monitored PDU, 120V Outlets (8 5-15/20R), L5-20P/5-20P Adapter, 12 ft. (3.66 m) Cord, 1U Rack-Mount, LX Platform Interface, TAA

Manufacturer Warehouse: 221 available
*Items typically ship within 3-4 weeks if stock at factory

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Monitored 16A 120V PDU, 1U horizontal rackmount format
Reports voltage, frequency and load level via ethernet interface
Pre-installed WEBCARDLX with latest version of PADM20 for enhanced remote management
NEMA L5-20P input with included 5-20P plug adapter
8 NEMA 5-15/20R outlets with included cord retention brackets
Temperature, humidity and contact-closure monitoring options
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Features

20A single phase 120V Monitored Power Distribution Unit / rack PDU (rPDU) (agency derated to 16A continuous)
Attached NEMA L5-20P input plug with NEMA 5-20P adapter and 12-ft. (3.66 m) line cord
1U horizontal rackmount installation format supports installation in 2 or 4 post equipment racks
8 NEMA 5-15R outlets
Lighted display reports output power consumption in amps
Pre-installed WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
DHCP/Manual configuration support
10/100 Mbps auto-sensing allows optimal communication with 10/100 Base-T networks
Real-time clock backup maintains the time of day and date even if the PDU is unpowered
Tiered access privileges allow an administrator and a guest to login via web browser for monitoring
Alert notifications via email or SNMP traps offer immediate event notification
Firmware upgrade ability supports future product enhancements.
Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
Mounting ears are reversible for front or rear facing rackmount installation
Included cord retention brackets keep vital network equipment plugged in and continuously powered
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Package Includes

Rack-mount PDU
Built-in LX Platform interface
L5-20R to 5-20P adapter
Plug retention plates
Rack-mounting brackets
Owner’s manual

Weight	8.5 lbs
Dimensions	20.5 × 11 × 2.09 in
UPC Code	037332152015
Cord Length	12.01
Max Input Amps	16
Rack Depth	11.2
Brand	Tripp Lite
PDU Type	Monitored
Input Phase	Single-Phase
PDU Input Voltage	120
Recommended Electrical Service	Single-phase 20A 120V service
Maximum Input Amps Details	Agency de-rated to 16A continuous
PDU Plug Type	NEMA 5-20P; NEMA L5-20P
Input Cord Length (m)	3.66
Output Capacity Details	1.92kW (120V) / 16A total capacity; 16A max per outlet
Frequency Compatibility	50 / 60 Hz
Output Receptacles	(8) 5-15/20R
Output Nominal Voltage	120V
Front Panel LCD Display	Digital meter reports PDU output current in amps
Material of Construction	Metal
Rack Height	1U
Form Factors Supported	1U horizontal rackmount in 2 or 4 post racks
Minimum Required Rack Depth (cm)	28.45
PDU Form Factor	Horizontal (1U)
Shipping Dimensions (hwd / cm)	5.31 x 27.94 x 52.07
Shipping Weight (kg)	3.86
Unit Dimensions (hwd / cm)	4.3 x 43.9 x 15.7
Unit Weight (kg)	3.18
Operating Temperature Range	32° to 104°F (0° to 40°C)
Storage Temperature Range	-22° to 122°F (-30° to 50°C)
Relative Humidity	5% to 95% non-condensing
Operating Elevation	0-10000 ft. (0-3000 m)
PowerAlert Software	LX Platform Interface: PowerAlert Device Manager
Communications Cable	Micro-USB- to-USB A configuration/console Access cable
Network Monitoring Port	RJ45 Network port, Micro-USB Configuration port, USB A port supports a variety of Envirosense2 environmental and control modules. See Accessories>Management Hardware section for more information about these modules.
SNMP Compatibility	Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, telnet, SSH and SNMP management systems
Network Compatibility	10 Mbps; 100 Mbps (Fast Ethernet)
High Availability PDU Features	Remote Network Notifications
Product Certifications	CSA (Canada); NOM (Mexico); UL 60950-1
Product Compliance	RoHS; FCC Part 15 Class A (USA); Trade Agreements Act (TAA)
Product Warranty Period (Worldwide)	2-year limited warranty
WEXT1D	Extended Warranty and Technical Support for Select Products – Isolation Transformers, KVM, PDU, Inverters
WEXT2D	Extended Warranty and Technical Support for Select Products – Isolation Transformers, KVM Switches, PDUs, Power Inverters
WEXT3D	Extended Warranty and Technical Support for Select Products – Isolation Transformers, KVM Switches, PDUs, Power Inverters
