Eaton 3.7kW Single-Phase 208/230V Monitored PDU - LX Platform, 8 C13 Outlets, C20 Input with L6-20P Adapter, 2.4m Cord, 1U Rack-Mount, TAA

Eaton 3.7kW Single-Phase 208/230V Monitored PDU – LX Platform, 8 C13 Outlets, C20 Input with L6-20P Adapter, 2.4m Cord, 1U Rack-Mount, TAA

Name: Eaton 3.7kW Single-Phase 208/230V Monitored PDU - LX Platform, 8 C13 Outlets, C20 Input with L6-20P Adapter, 2.4m Cord, 1U Rack-Mount, TAA
Brand: Tripp Lite
SKU: PDUMNH20HV
Price: 651.84 CAD
Availability: InStock

$651.84

Brand: Tripp Lite

Part Number (MPN): PDUMNH20HV

UPC / GTIN: 037332160928

Datasheet: PDF

Eaton 3.7kW Single-Phase 208/230V Monitored PDU – LX Platform, 8 C13 Outlets, C20 Input with L6-20P Adapter, 2.4m Cord, 1U Rack-Mount, TAA

Toronto Stock: 1 available

Manufacturer Warehouse: 38 available
*Items typically ship within 3-4 weeks if stock at factory

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Monitored 16A 208/230V PDU, 1U horizontal rackmount
Reports voltage, frequency and load level via ethernet interface
Visual current meter, Reversible housing
C20 inlet; 8 ft / 2.4m C20 cable with L6-20P plug adapter
8 C13 outlets with included plug-lock retention sleeves
Compatible with Eaton Tripp Lite power cords to simplify deployment and enhance reliability
Pre-installed WEBCARDLX with latest version of PADM20 for enhanced remote management
TAA Compliant for GSA Schedule purchases

Features

16/20A 230/208V Monitored Power Distribution Unit / rack PDU (rPDU) (agency derated to 16A continuous)
C20 inlet; 8ft / 2.4m C20 cable and NEMA L6-20P plug adapter included
1U horizontal rackmount installation

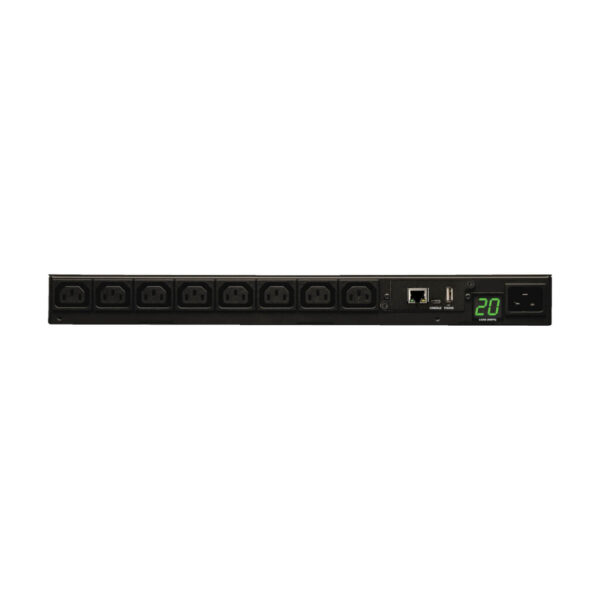

8 C13 outlets
Lighted display reports output power consumption in amps
Built-in network interface reports voltage, frequency and PDU loading via network or secure web browser interface with options for user specified alarm and notification thresholds
Pre-installed WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
10/100 Mbps auto-sensing allows optimal communication with 10/100 Base-T networks
Real-time clock backup maintains the time of day and date even if the PDU is unpowered
Tiered access privileges allow an administrator and a guest to login via web browser for monitoring
Alert notifications via email or SNMP traps offer immediate event notification
Firmware upgrade ability supports future product enhancements.
Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
Mounting ears are reversible for front or rear facing rackmount installation
Included cord retention brackets keep vital network equipment plugged in and continuously powered
TAA Compliant for GSA Schedule purchases

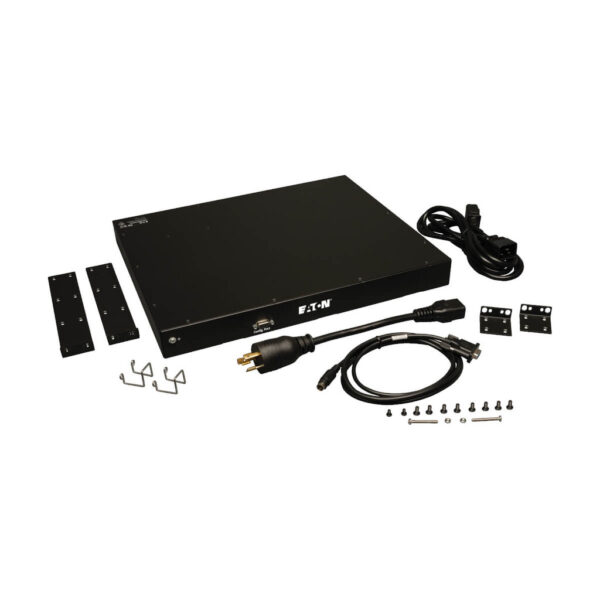

Package Includes

Rackmount PDU
Rack mounting brackets
Plug retention inserts
2.6m C19-to-C20 power cord
C19-to-L6-20P plug adapter
Mounting hardware
Owner’s manual

Weight	13.5 lbs
Dimensions	23 × 20.75 × 6 in
UPC Code	037332160928
Cord Length	8.5
Max Input Amps	16
Rack Depth	17.1
Brand	Tripp Lite
PDU Type	Monitored
Input Phase	Single-Phase
PDU Input Voltage	208; 230
Recommended Electrical Service	Single-phase 16/20A 230/208V service
Maximum Input Amps Details	Agency de-rated to 16A continuous
Input Connection Type	C20 inlet accepts included C19-C20 cable with included plug adapters
PDU Plug Type	NEMA L6-20P; IEC-320 C20
Input Cord Length (m)	2.59
Output Capacity Details	3.68kW (230V), 3.33kW (208V) / 16A total capacity; 12A (10A CE) max per C13 outlet
Frequency Compatibility	50 / 60 Hz
Output Receptacle Details	Compatible with Eaton Tripp Lite Power Cords
Output Receptacles	(8) C13
Output Nominal Voltage	208/230V
Front Panel LCD Display	Digital meter reports PDU output current in amps
Material of Construction	Metal
Rack Height	1U
Form Factors Supported	1U horizontal rackmount in 2 or 4 post racks
Minimum Required Rack Depth (cm)	43.43
PDU Form Factor	Horizontal (1U)
Shipping Dimensions (hwd / cm)	15.24 x 52.70 x 58.42
Shipping Weight (kg)	6.12
Unit Dimensions (hwd / cm)	4,4 x 44,4 x 37,6
Unit Weight (kg)	4.08
Operating Temperature Range	32° to 104°F (0° to 40°C)
Storage Temperature Range	-22° to 122°F (-30° to 50°C)
Relative Humidity	5% to 95% non-condensing
Operating Elevation	0-10000 ft. (0-3000 m)
PowerAlert Software	LX Platform Interface: PowerAlert Device Manager
Communications Cable	Micro-USB- to-USB A configuration/console Access cable
Network Monitoring Port	RJ45 Network port, Micro-USB Configuration port, USB A port supports a variety of Envirosense2 environmental and control modules. See Accessories>Management Hardware section for more information about these modules.
SNMP Compatibility	Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, telnet, SSH and SNMP management systems
Network Compatibility	10 Mbps; 100 Mbps (Fast Ethernet)
High Availability PDU Features	Remote Network Notifications
Product Certifications	NOM (Mexico); UL 60950-1
Product Compliance	RoHS; CE (Europe); FCC Part 15 Class A (USA); Trade Agreements Act (TAA)
Product Warranty Period (Worldwide)	2-year limited warranty
