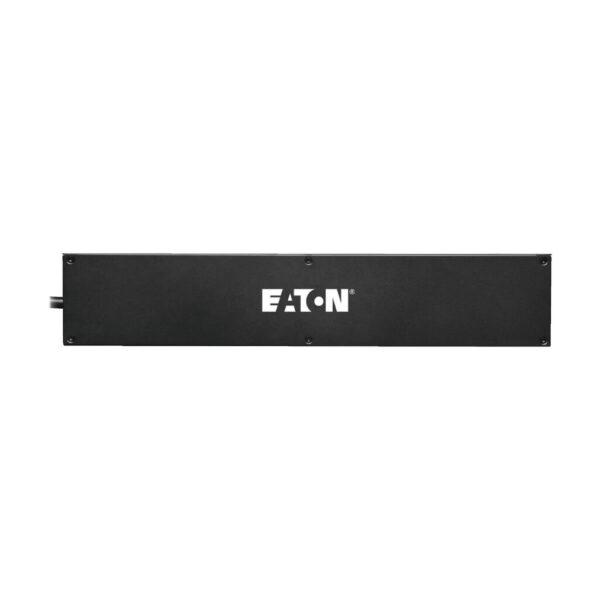

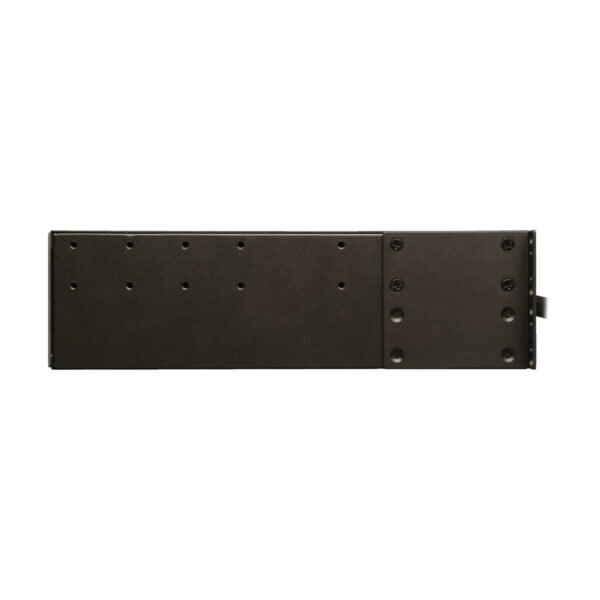

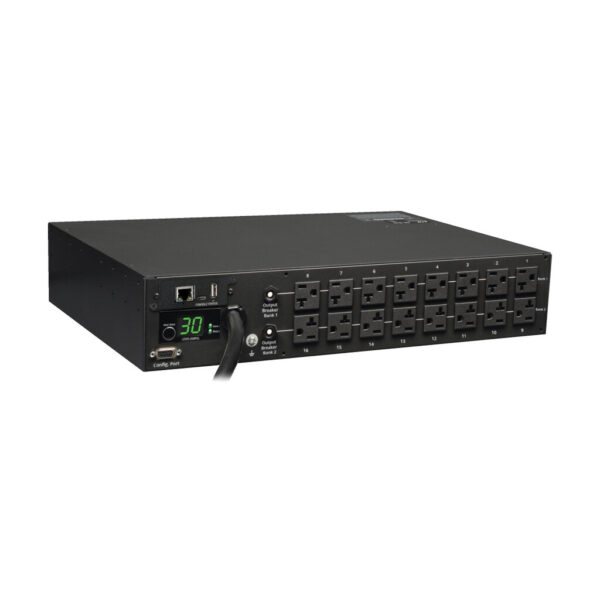

Eaton 2.9kW Single-Phase Monitored PDU – 120V Outlets (16 5-15/20R), L5-30P, 10 ft. (3.05 m) Cord, 2U Rack-Mount, TAA

Quick Specs

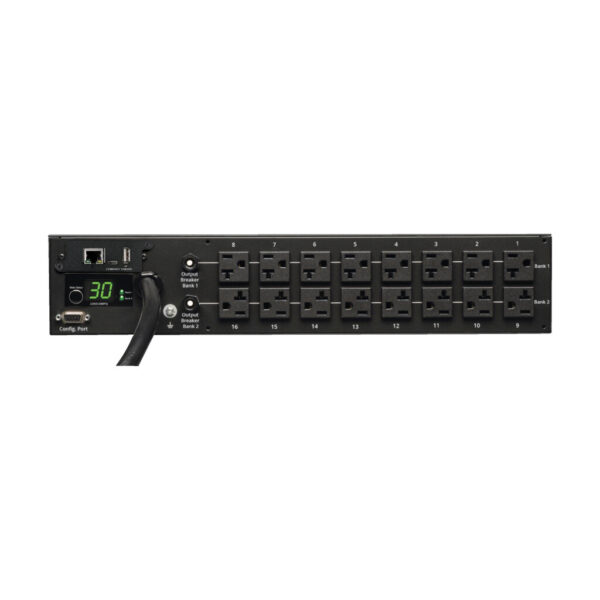

• 16 NEMA 5-15/20R outlets with cord retention brackets
• Digital readout monitors current to prevent circuit overload
• Pre-installed WEBCARDLX with latest version of PADM20 for enhanced remote management
• Temperature, humidity and contact-closure monitoring options
• L5-30P input with 10-ft. (3.05 m) cord

Features

2.9kW Single-Phase Monitored rack PDU (rPDU) with LX Platform InterfacePDUMNH30 distributes and monitors single-phase 120V power to connected rack equipment in data centers, network closets, server rooms, computer rooms and other applications requiring network-grade power. Its built-in network interface allows real-time remote monitoring of voltage, frequency and load levels to prevent overloads that cause expensive downtime. It features 16 NEMA 5-15/20R outlets and a 10-ft. (3.05 m) power cord with NEMA L5-30P plug, which connects the PDU to a compatible AC power source, generator or protected UPS system.Built-In LX Platform Network Management Interface CardThe built-in WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities, including customizable dashboard graphs to fit user preferences. The PADM20 upgrade and PowerAlert Element Manager (PAEM) software form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations.Digital Load MeterThe easy-to-read two-character digital LED meter displays output load levels in three segments: breakered bank 1, breakered bank 2 and total PDU output. Monitoring the individual breakered load banks helps ensure proper balance across the two output load banks. Monitoring total PDU output helps prevent PDU and supply circuit overloads that cause downtime. Optimized for Demanding ApplicationsThe all-metal housing is designed to endure in busy, demanding IT and industrial environments. The included cord retention brackets for the outlets help prevent connected equipment from becoming accidentally disconnected. Real-time clock backup maintains the time of day and date, even if the PDU is shut down and unpowered.Versatile Installation OptionsThis server rack PDU features a 2U horizontal rack-mount form factor. Mounting flanges support installation in 2- and 4-post racks, with additional support for wall-mount and under-counter installation. Mounting ears are reversible for front- or rear-facing rack-mount installation.TAA-Compliant for GSA Schedule PurchasesThe PDUMNH30 monitored power distribution unit is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.2-Year Warranty and Environmentally Responsible DesignThis monitored PDU comes with a 2-year limited warranty. It’s manufactured in compliance with strict RoHS specifications.

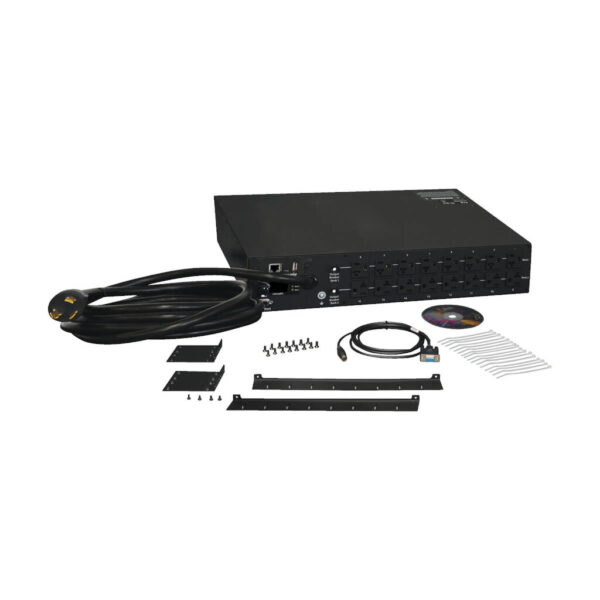

Package Includes

• PDUMNH30 2.9kW Single-Phase Monitored PDU
• Rack-mounting brackets
• Cord retention brackets
• Cable ties
• Owner’s manual
