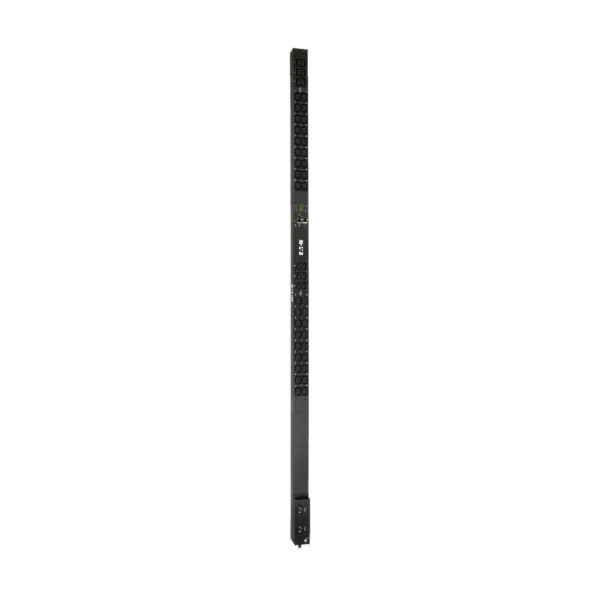

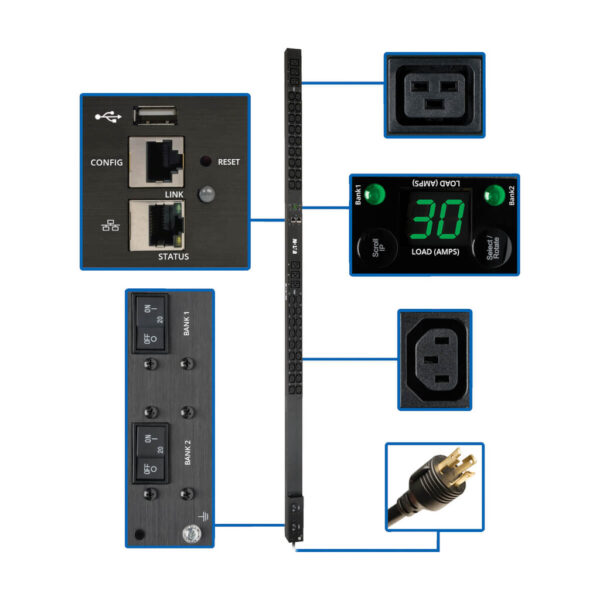

Eaton 5.5kW Single-Phase Monitored PDU, LX Interface, 208/230V Outlets (36 C13/6 C19), L6-30P, 10 ft. (3.05 m) Cord, 0U 1.8m/70 in. Height, TAA

$963.77

Brand: Tripp Lite
Part Number (MPN): PDUMNV30HV2LX
UPC / GTIN: 037332204486
Datasheet: PDF

Eaton 5.5kW Single-Phase Monitored PDU, LX Interface, 208/230V Outlets (36 C13/6 C19), L6-30P, 10 ft. (3.05 m) Cord, 0U 1.8m/70 in. Height, TAA

Toronto Stock: 4 available
Manufacturer Warehouse: 131 available
*Items typically ship within 3-4 weeks if stock at factory
Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

  • 5.5kW 208/230V single-phase monitored 0U PDU
  • 42 outlets—36 C13, 6 C19—with plug-lock insert sleeves;Compatible with Eaton Tripp Lite power cords
  • Pre-installed WEBCARDLX with latest version of PADM20 for enhanced remote management
  • Digital ammeter for on-site load monitoring in real time
  • NEMA L6-30P input with 10 ft. (3.1 m) AC power cord

Overview

The PDUMNV30HV2LX 5.5kW Single-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime.

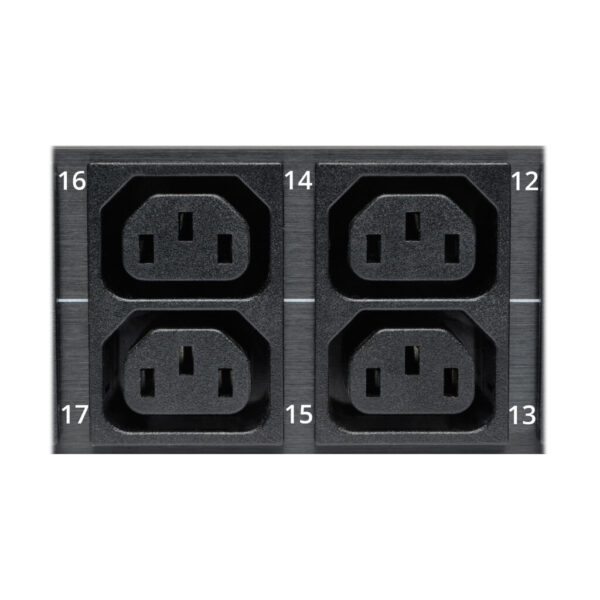

The 0U PDU features 42 outlets (36 C13 and 6 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 10-ft. (3.05 m) cord with NEMA L6-30P plug connects the PDU to a compatible AC power source, generator or protected UPS.

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

A digital ammeter allows you to monitor each load bank’s current and the total connected PDU load in real time to ensure they remain well below maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.

Features

Distributes and Monitors Network-Grade Single-Phase Power

  • 5.5kW 208/230V monitored rack PDU (rPDU) with single-phase input

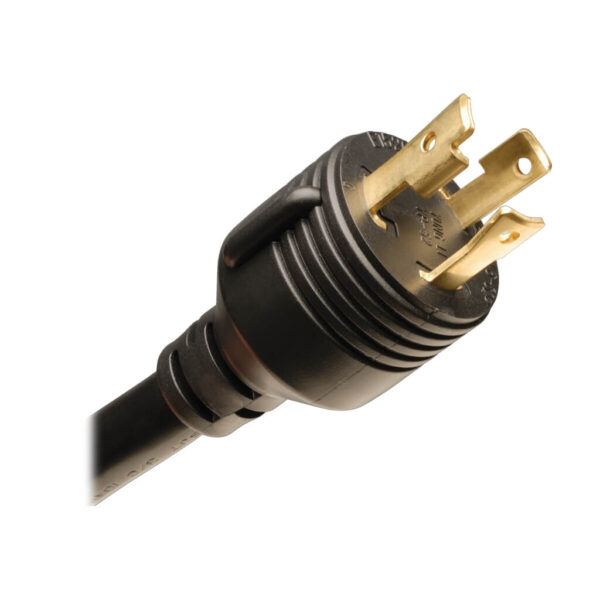

  • NEMA L6-30P plug with 10-ft. (3.05 m) cord connects to compatible AC power source
  • Firmware upgrades support future product enhancements

42 Outlets Distribute AC Power

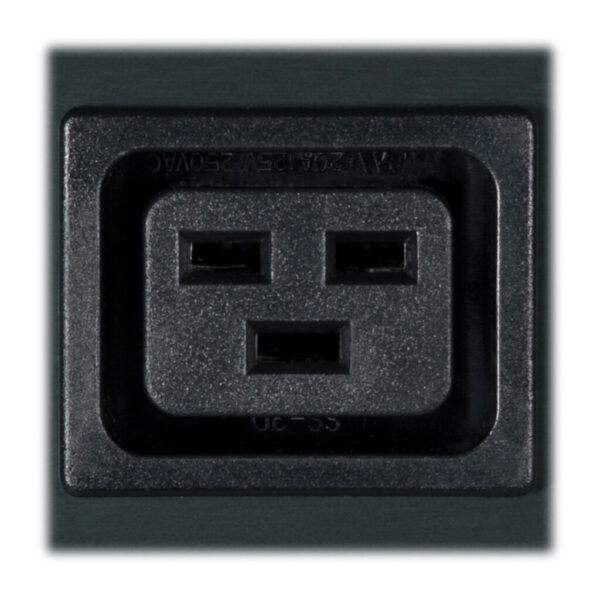

  • 36 C13 and 6 C19 outlets split into 2 separately breakered 20A load banks
  • Plug-lock insert sleeves prevent cables from becoming accidentally disconnected

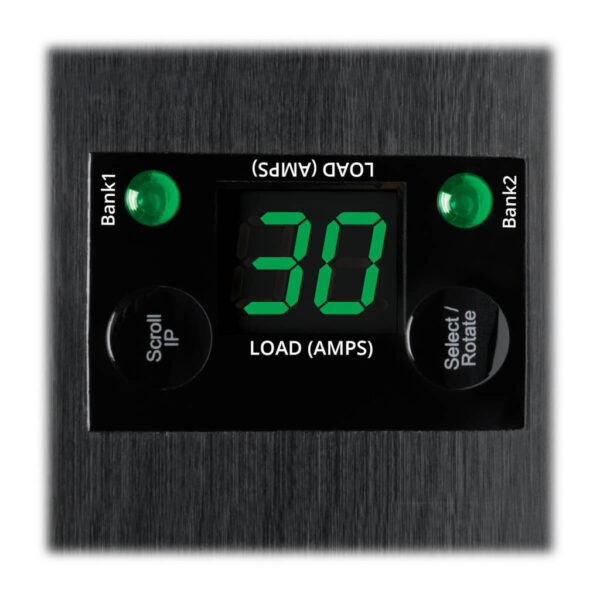

Digital Ammeter

  • Reports current for each load bank and total connected PDU load
  • Supports IP-address self-ID
  • Rotates 180° for easy reading at either angle

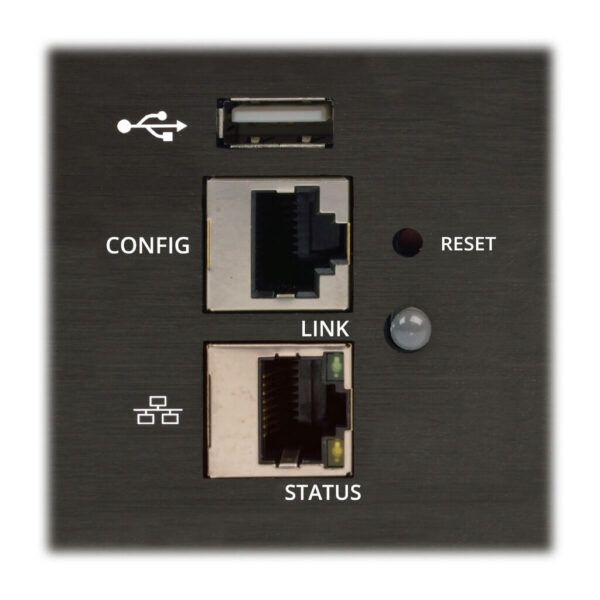

Built-In LX Platform Interface

  • Pre-installed WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
  • PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
  • Allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH
  • Supports 10/100 Mbps auto-sensing for communication with an Ethernet network
  • Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
  • No Java required

Broad Communications Compatibility

  • Supports IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP
  • Supports automatic and manual assignment of IP address

Essential Safety Features

  • Tiered access allows administrator and guest to log in via web browser
  • Immediate alert notifications via email or SNMP traps
  • Supports user-specified alarm notification thresholds
  • Real-time clock backup maintains day/date even if PDU is unpowered

Easy 0U Installation in EIA-Standard 19 in. Racks

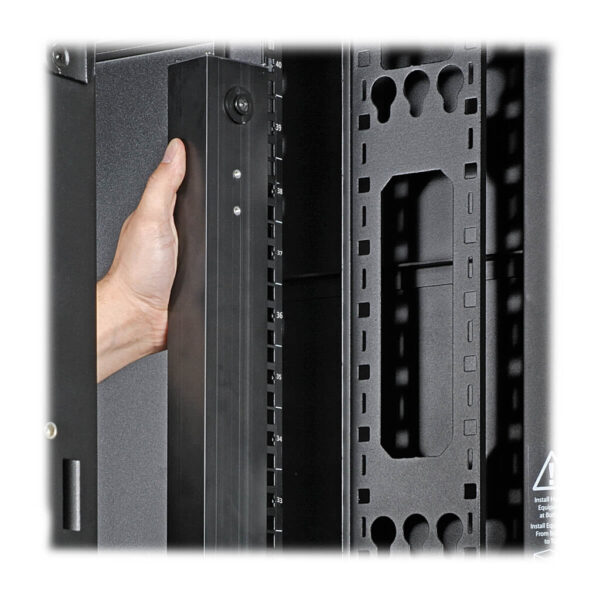

  • Mounts vertically using included toolless buttons or rack-mounting brackets
  • Included PDUMVROTATEBRKT allows mounting with rear-facing outlets

TAA-Compliant

  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

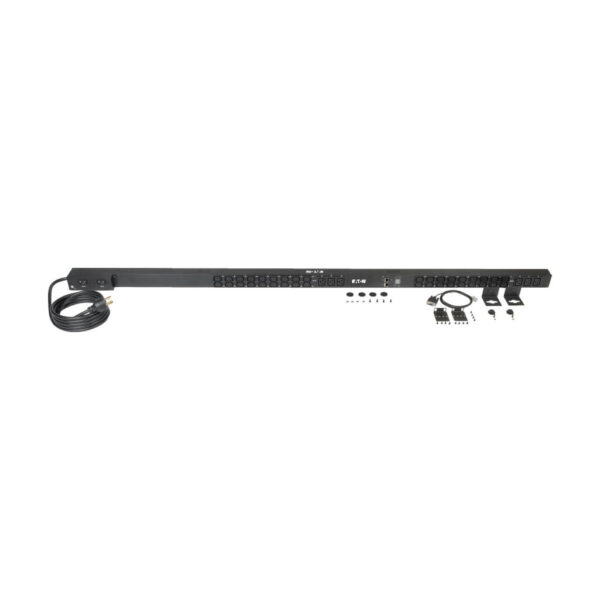

Package Includes

  • PDUMNV30HV2LX 5.5kW Single-Phase Monitored PDU
  • Built-in LX Platform interface
  • Configuration cable
  • (42) Plug-lock insert sleeves
  • Rack-mounting hardware
  • PDUMVROTATEBRKT mounting bracket accessory
  • Owner’s manual
Weight 16.5 lbs
Dimensions 72.5 × 5.79 × 4.25 in
UPC Code

037332204486
Cord Length

10.01
Max Input Amps

24
Brand

PDU Type

Monitored
Input Phase

Single-Phase
PDU Input Voltage

208; 230
Recommended Electrical Service

Single-phase 30A 208/230V service
Maximum Input Amps Details

Agency de-rated to 24A continuous
PDU Plug Type

NEMA L6-30P
Input Cord Length (m)

3.05
Output Capacity Details

5.5kW (230V), 5kW (208V) total capacity / 30A max (Agency de-rated to 24A), 20A max per breakered outlet bank; 16A max per C19 outlet; 12A max per C13 outlet
Frequency Compatibility

50 / 60 Hz
Output Receptacle Details

Compatible with Eaton Tripp Lite Power Cords
Output Receptacles

(36) C13; (6) C19
Output Nominal Voltage

208/230V
Overload Protection

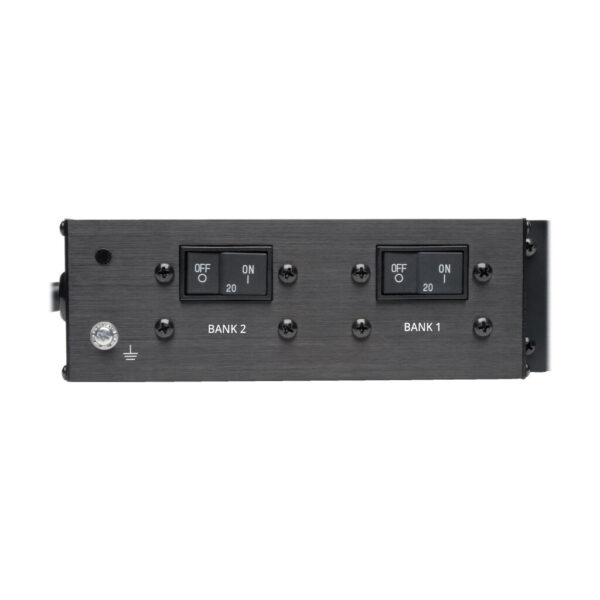

Two 20A breakers protect 21 outlets each
Front Panel LCD Display

Digital meter reports PDU output current in amps, Scroll IP-address information; Display can be rotated 180 degrees for installation with the input cable at the top
Switches

Press the SCROLL IP button and release to display the configured IP address in 2 digit intervals; Press the SELECT / ROTATE button and release after one second to advance the local display power power consumption for the 3 reported segments: Bank 1, Bank 2 and Banks 1+2; Press the SELECT / ROTATE button and release after two seconds to rotate the display 180 degrees
LED Indicators

Front panel LEDs indicate which loading segment the digital LCD current display is reporting; Bank 1 LED indicates the meter is reporting load level for outlets 1-21; Bank 2 LED indicates the meter is reporting load level for outlets 22-42; Both LEDs lighted indicates the meter is reporting load level for all outlets combined
Current Measurement Accuracy (Amps)

+/-2%
Material of Construction

Metal
Rack Height

0U
Form Factors Supported

0U vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks
PDU Form Factor

Vertical (0U)
Shipping Dimensions (hwd / cm)

10.80 x 14.71 x 184.15
Shipping Weight (kg)

7.48
Unit Dimensions (hwd / cm)

179.07 x 5.56 x 6.73
Unit Weight (kg)

6.80
Operating Temperature Range

32° to 104°F (0° to 40°C)
Storage Temperature Range

-22° to 140°F (-30° to 60°C)
Relative Humidity

5% to 95% non-condensing
Operating Elevation

0-10000 ft. (0-3000 m)
PowerAlert Software

LX Platform Interface: PowerAlert Device Manager
Communications Cable

RJ45-to-DB9 configuration/console Access cable
SNMP Compatibility

Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, telnet, SSH and SNMP management systems
Network Compatibility

10 Mbps; 100 Mbps (Fast Ethernet)
High Availability PDU Features

Remote Network Notifications
Product Certifications

CAN/CSA-C22.2 No. 60950-1 (Canada); NOM (Mexico); UL 60950-1
Product Compliance

RoHS; FCC Part 15 Class A (USA); Trade Agreements Act (TAA)
Product Warranty Period (Worldwide)

2-year limited warranty
