Eaton 5.5kW Single-Phase Monitored PDU with LX Platform Interface, 208/230V Outlets (20 C13 & 4 C19), L6-30P, 0U, TAA

Quick Specs

• 5.5kW 208/230V 24A monitored PDU
• 24 outlets—20 C13, 4 C19—with cord retention brackets
• Compatible with Eaton Tripp Lite power cords to simplify deployment and enhance reliability
• NEMA L6-30P input with 10 ft. (3.1 m) AC power cord
• Digital ammeter for on-site load monitoring in real time
• Pre-installed WEBCARDLX with latest version of PADM20 for enhanced remote management

Overview

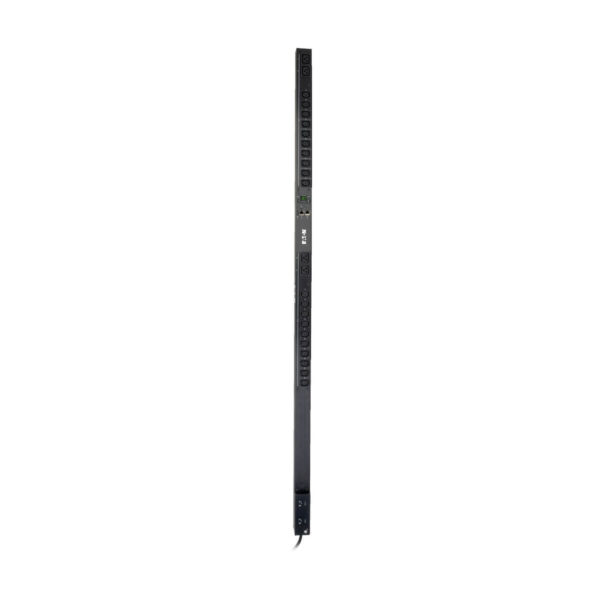

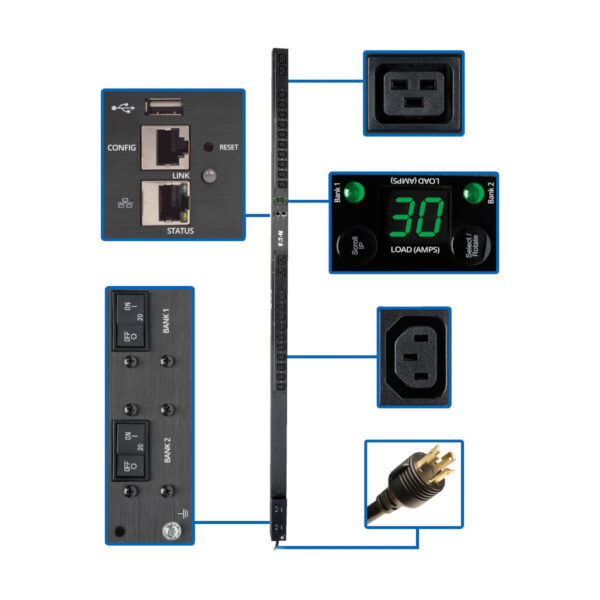

The PDUMNV30HVLX 5.5kW Single-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. Recommended for any IT or industrial application, it features 24 outlets (20 C13 and 4 C19) with included cord retention brackets to prevent cables from becoming accidentally disconnected. A 10-ft. (3.05 m) cord with NEMA L6-30P plug connects the PDU to a compatible AC power source, generator or protected UPS.

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

A digital ammeter allows you to monitor each bank’s load in real time to ensure it remains well below maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.

Features

Distributes Network-Grade Single-Phase Power

• 5/5.8kW 208/230V 24A monitored rack PDU (rPDU) with single-phase input/output

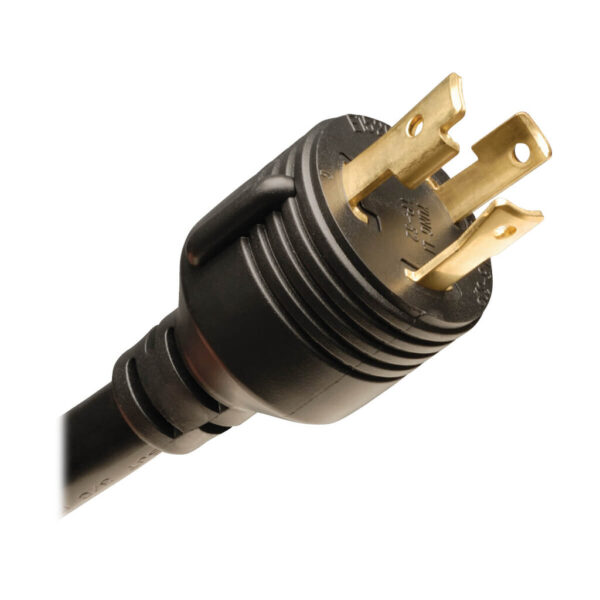

• NEMA L6-30P with 10-ft. (3.05 m) cord connects to compatible AC power source
• Firmware upgrades support future product enhancements

24 Outlets Distribute AC Power

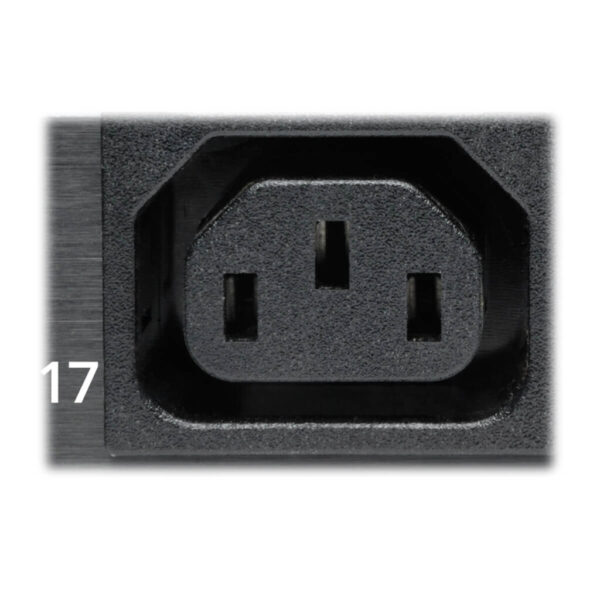

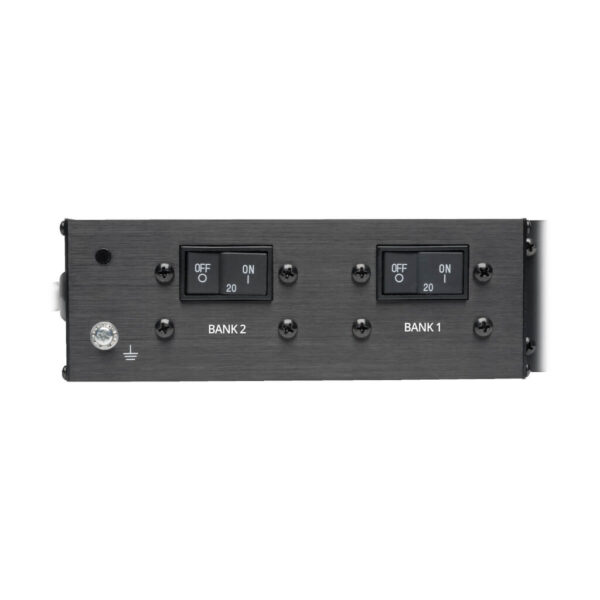

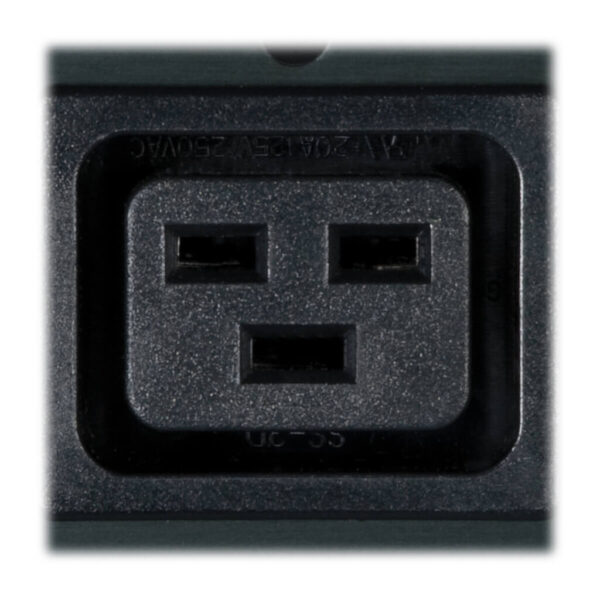

• 20 C13 and 4 C19 outlets split into 2 separate load banks
• Cord retention bracket prevents cables from becoming accidentally disconnected

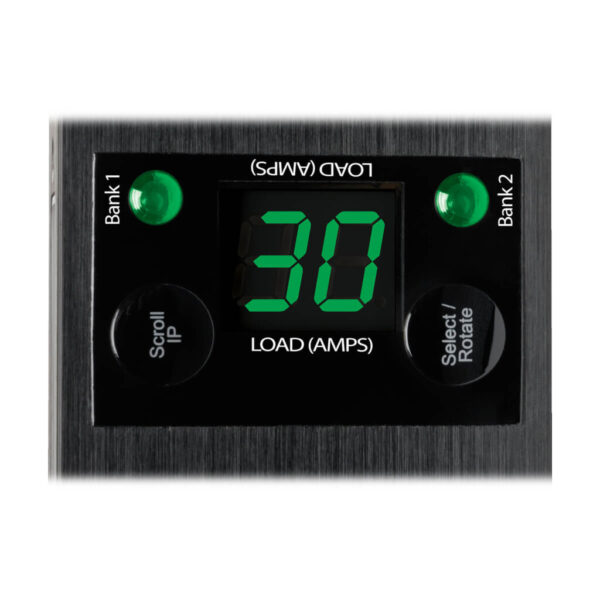

Digital Ammeter

• Reports total connected equipment load
• Supports IP-address self-ID
• Rotates 180° for easy reading at either angle

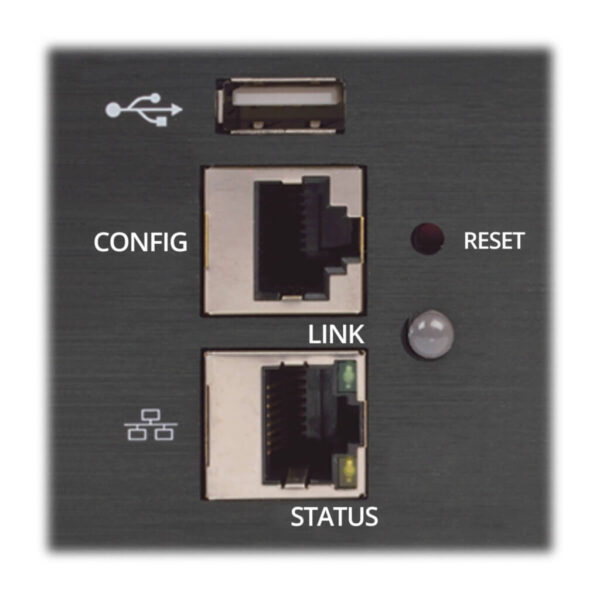

Built-In LX Platform Interface

• Pre-installed WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
• PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
• Allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH
• Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
• No Java required

Broad Communications Compatibility

• Supports HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP
• Supports automatic and manual assignment of IP address

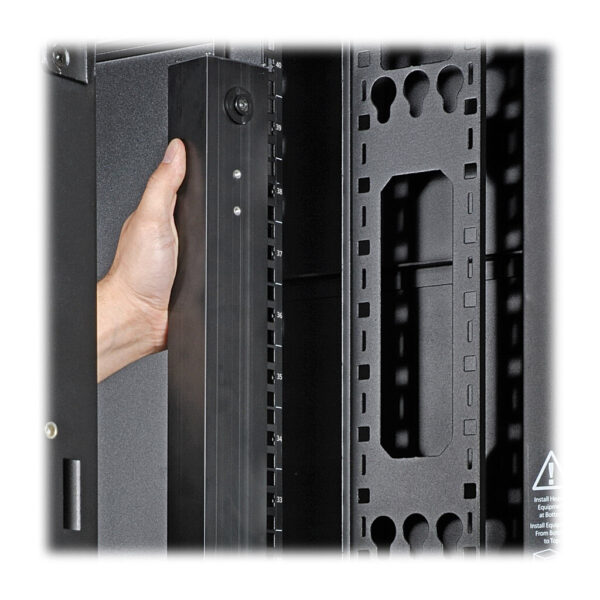

Easy 0U Installation in EIA-Standard 19 in. Racks

• Mounts vertically using included toolless buttons or rack-mounting brackets
• Included PDUMVROTATEBRKT allows mounting with rear-facing outlets

TAA-Compliant

• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Package Includes

• PDUMNV30HVLX 5.5kW Single-Phase Monitored PDU
• Configuration cable
• (24) Cable ties
• (2) Cord retention brackets
• Rack-mounting hardware
• PDUMVROTATEBRKT mounting bracket accessory
• Owner’s manual
