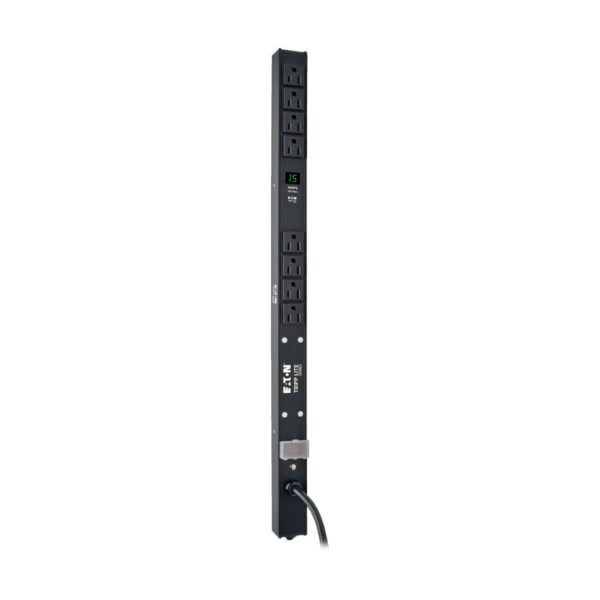

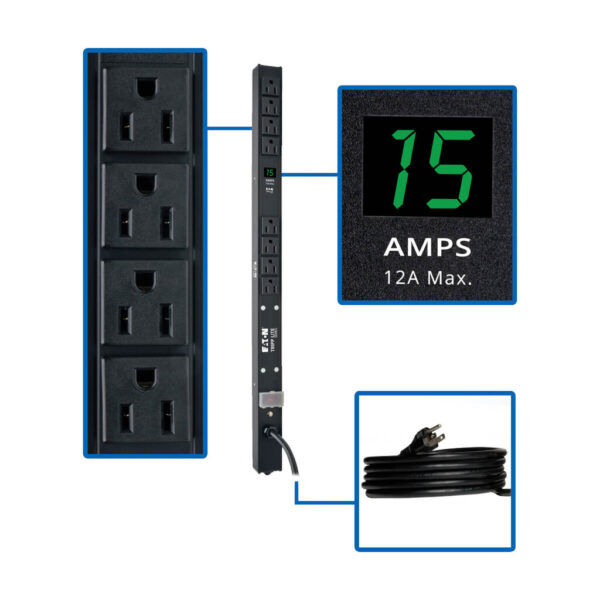

Local Metered single phase 12A 100-127V 0U 24in / 61cm vertical rackmount PDU
Two-digit current meter reports output current in amps

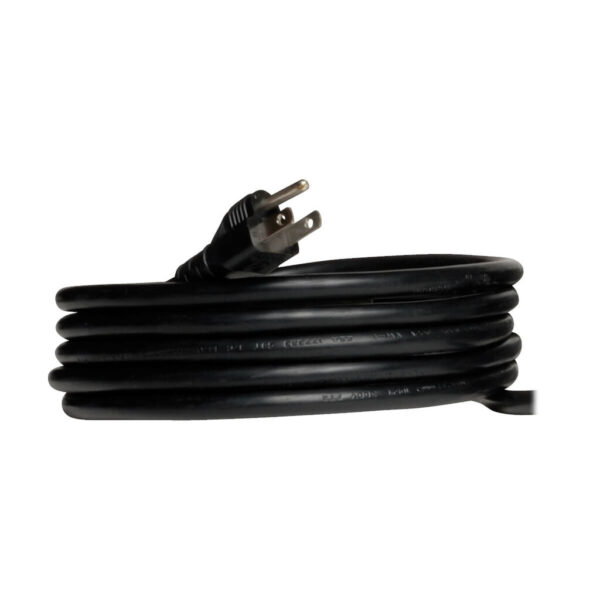

Attached 15-ft. (4.57 m) cord with NEMA 5-15P input plug

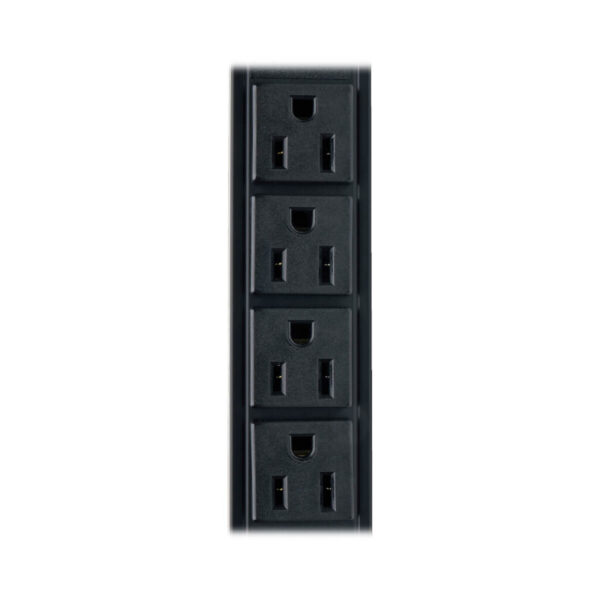

8 NEMA 5-15R outlets
Toolless button mount and bolt-down bracket installation hardware included
Features
15A single phase 120V Local Metered Power Distribution Unit / rack PDU (rPDU) (Agency de-rated to 12A continuous)

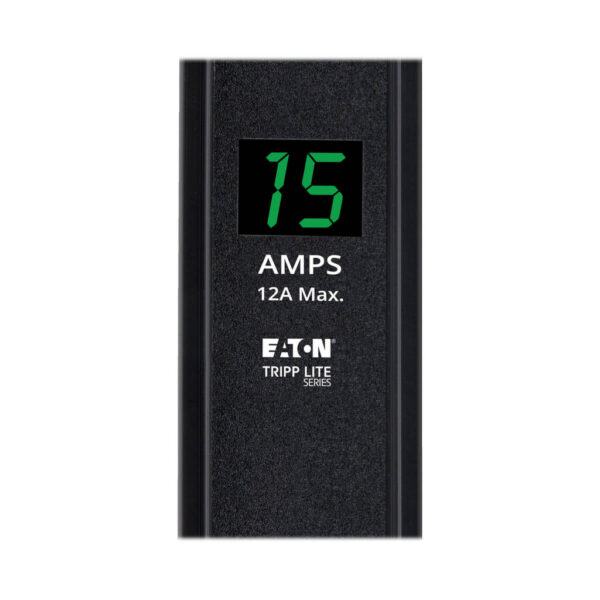

Two-digit lighted meter reports combined total output current in amps
Attached NEMA 5-15P 15A 120V input plug with 15-ft. (4.57 m) line cord
0U 24in / 61cm vertical rackmount format installs using no rack spaces
8 NEMA 5-15R outlets

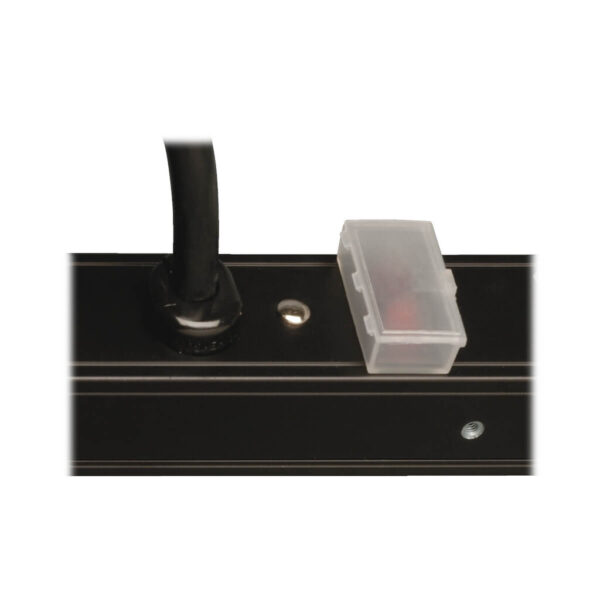

Includes 15A circuit breaker and lighted power switch inside a transparent protective cover

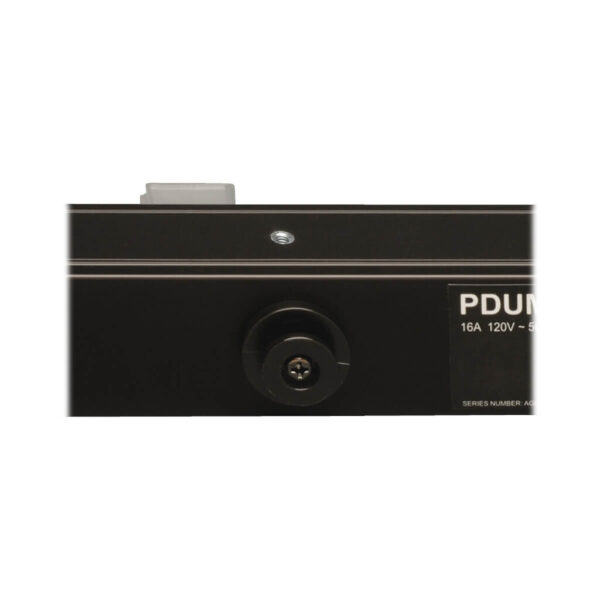

Toolless installation supported in button-mount compatible equipment racks
Rear facing installation buttons can be relocated to the left or right surface of the PDU for rear, center or forward-facing outlet orientation in compatible racks

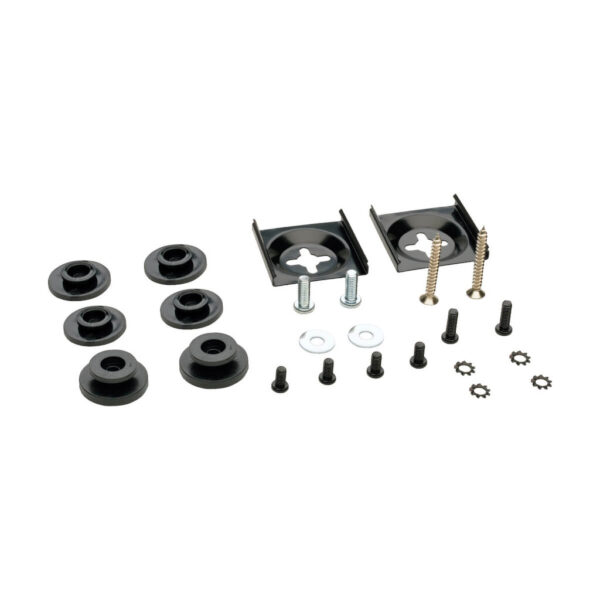

Included nut and bolt mounting brackets support installation in non button-mount compatible racks, wallmount and raceway applications
1.52kW (127V), 1.44kW (120V), 1.2kW (100V) / 12A total capacity; 12A max per outlet
Frequency Compatibility
50 / 60 Hz
Output Receptacles
(8) 5-15R
Output Nominal Voltage
100-127V
Overload Protection
15A circuit breaker
Front Panel LCD Display
Digital meter reports PDU output current in amps
Switches
Lighted on/off switch with integrated safety cover
Material of Construction
Metal
Rack Height
0U
Form Factors Supported
Vertical (0U) mounting in rack enclosures, horziontal mount in raceways and a variety of other applications
PDU Form Factor
Vertical (0U)
Shipping Dimensions (hwd / cm)
4.83 x 13.72 x 68.83
Shipping Weight (kg)
1.54
Unit Dimensions (hwd / cm)
61 x 4.45 x 3.2
Unit Weight (kg)
1.20
Operating Temperature Range
32° to 104°F (0° to 40°C)
Storage Temperature Range
-22° to 122°F (-30° to 50°C)
Relative Humidity
5% to 95% non-condensing
Operating Elevation
0-10000 ft. (0-3000 m)
Product Certifications
RETIE (Colombia); CAN/CSA-C22.2 No. 60950-1 (Canada); NOM (Mexico); UL 60950-1
Product Compliance
RoHS; FCC Part 15 Class A (USA)
Product Warranty Period (Worldwide)
2-year limited warranty
