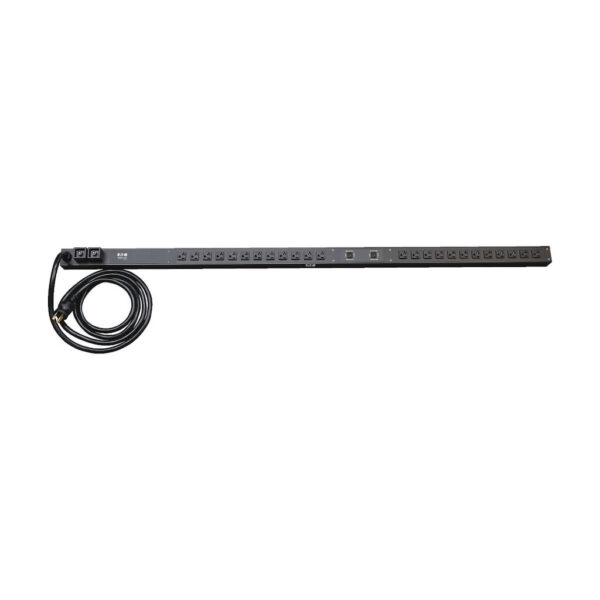

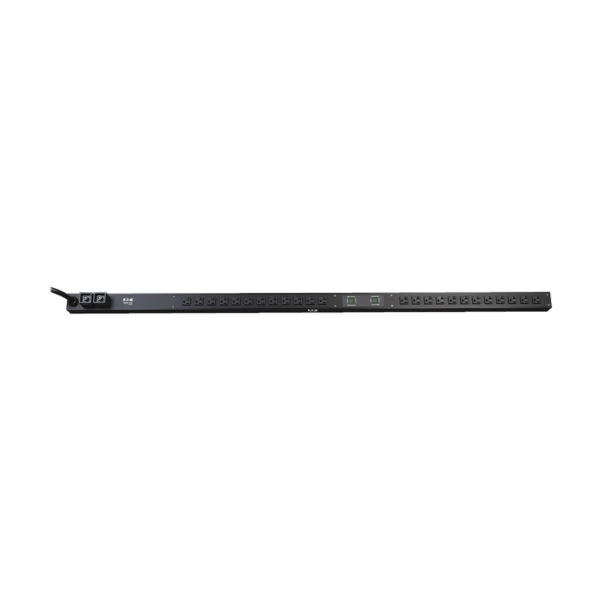

Tripp Lite series 2.9kW Single-Phase Local Metered PDU, 120V Outlets (24 5-15/20R), L5-30P, 10 ft. (3.05 m) Cord, 0U Vertical

Name: Tripp Lite series 2.9kW Single-Phase Local Metered PDU, 120V Outlets (24 5-15/20R), L5-30P, 10 ft. (3.05 m) Cord, 0U Vertical
Brand: Tripp Lite
SKU: PDUMV30
Price: 548.43 CAD
Availability: InStock

$548.43

Brand: Tripp Lite

Part Number (MPN): PDUMV30

UPC / GTIN: 037332139337

Datasheet: PDF

Tripp Lite series 2.9kW Single-Phase Local Metered PDU, 120V Outlets (24 5-15/20R), L5-30P, 10 ft. (3.05 m) Cord, 0U Vertical

Toronto Stock: 4 available

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Local metered single phase 24A 120V, 0U 63.75in / 162cm vertical rackmount PDU
Pair of digital meters report output current in amps for each load bank
Attached 10ft / 3.0m cord with NEMA L5-30P input plug
24 NEMA 5-15/20R outlets in two separately breakered load banks
Toolless button mount and bolt-down bracket installation hardware included

Features

30A single phase 120V Local Metered Power Distribution Unit / rack PDU (rPDU) (Agency de-rated to 24A continuous)
Set of two lighted meters report PDU output current in amps for each 12 outlet load bank
Attached NEMA L5-30P 30A 120V input plug with 10ft / 3m line cord
0U vertical rackmount format installs using no rack spaces
24 NEMA 5-15/20R output receptacles
Outlets are arranged in two 12 outlet load banks, each with separate 20A breaker and current metering
Toolless installation supported in button-mount compatible equipment racks
Bolt-down installation brackets support installation in other racks and additional surfaces
Cord retention brackets keep vital equipment plugs connected

Package Includes

PDUMV30 63.75 inch basic PDU with owner’s manual
Set of 2 bolt-on plug retention brackets and installation hardware
Set of mounting brackets and installation hardware

Weight	11 lbs
Dimensions	65 × 3 × 5 in
UPC Code	037332139337
Cord Length	10.01
Max Input Amps	24
Brand	Tripp Lite
PDU Type	Local Metered
Input Phase	Single-Phase
PDU Input Voltage	120
Recommended Electrical Service	Single-phase 30A 120V service
Maximum Input Amps Details	Agency de-rated to 24A continuous
PDU Plug Type	NEMA L5-30P
Input Cord Length (m)	3.05
Output Capacity (kW)	2.9
Output Capacity Details	2.88kW (120V) / 24A total capacity; 20A max per breakered load bank; 16A max per outlet
Frequency Compatibility	50 / 60 Hz
Output Receptacles	(24) 5-15/20R
Output Nominal Voltage	120V
Overload Protection	Two 20A breakers protect 12 outlets each
Front Panel LCD Display	Set of 2 digital current meters continuously report PDU output current in amps for Bank 1 (20A max) and Bank 2 (20A max) outlets
LED Indicators	Includes 2 built-in 2-character LED meters to display power consumption of items plugged into each separately breakered 20A loading bank.
Material of Construction	Aluminum
Rack Height	0U
Form Factors Supported	0u vertical installation in equipment racks, plus under-counter and wallmount
PDU Form Factor	Vertical (0U)
Shipping Dimensions (hwd / cm)	12.70 x 7.62 x 165.10
Shipping Weight (kg)	4.99
Unit Dimensions (hwd / cm)	162 x 5.7 x 9.5
Unit Weight (kg)	3.63
Operating Temperature Range	32° to 104°F (0° to 40°C)
Storage Temperature Range	-22° to 122°F (-30° to 50°C)
Relative Humidity	0-95% non-condensing
Operating Elevation	0-10000 ft. (0-3000 m)
Product Certifications	RETIE (Colombia); NOM (Mexico); UL 62368-1
Product Compliance	RoHS; FCC Part 15 Class A (USA)
Product Warranty Period (Worldwide)	2-year limited warranty
