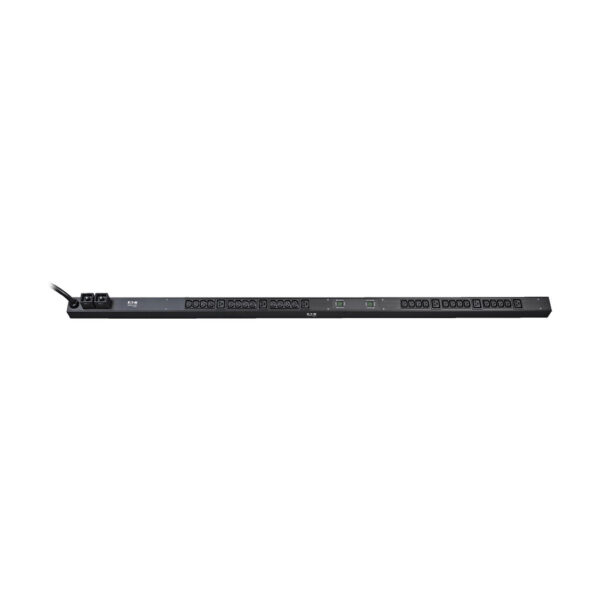

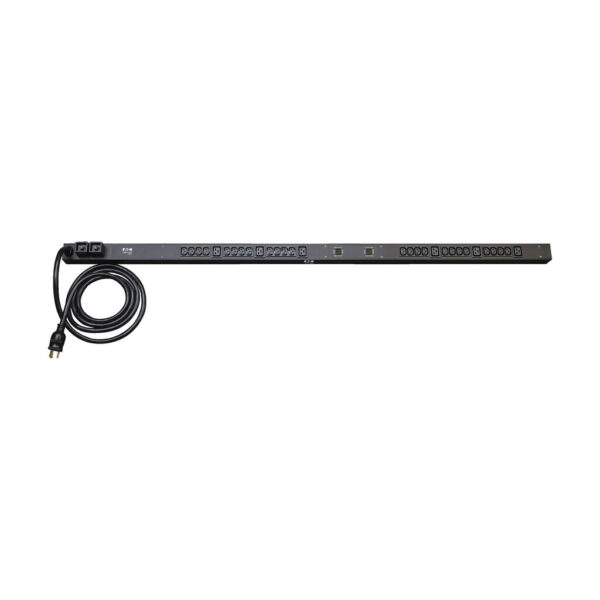

Tripp Lite series 5.5kW Single-Phase Local Metered PDU, 208/230V Outlets (6-C19 & 24-C13), L6-30P, 10 ft. (3.05 m) Cord, 0U Vertical

Name: Tripp Lite series 5.5kW Single-Phase Local Metered PDU, 208/230V Outlets (6-C19 & 24-C13), L6-30P, 10 ft. (3.05 m) Cord, 0U Vertical
Brand: Tripp Lite
SKU: PDUMV30HV
Price: 539.11 CAD
Availability: InStock

$539.11

Brand: Tripp Lite

Part Number (MPN): PDUMV30HV

UPC / GTIN: 037332139351

Datasheet: PDF

Tripp Lite series 5.5kW Single-Phase Local Metered PDU, 208/230V Outlets (6-C19 & 24-C13), L6-30P, 10 ft. (3.05 m) Cord, 0U Vertical

Toronto Stock: 21 available

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Local metered single phase 24A 208/230V, 0U 63.75in / 162cm vertical rackmount PDU
Pair of digital meters report output current in amps for each load bank
Attached 10ft / 3m cord with NEMA L6-30P input plug
30 outlets (6 C19, 24 C13) in two separately breakered load banks; Compatible with Eaton Tripp Lite power cords
Ready for immediate toolless 0U installation

Features

30A single phase 208/230V Local Metered Power Distribution Unit / rack PDU (rPDU) (Agency derated to 24A continuous)
Set of two lighted meters report PDU output current in amps for each output load bank
Attached NEMA L6-30P 30A 208/230V input plug and 10ft / 3m cord
0U 63.75in / 162cm vertical rackmount format installs using no rack spaces
30 output receptacles (6 C19, 24 C13)
Outlets are arranged in two 15 outlet load banks, each with separate 15A breaker and current metering
Toolless installation in button-mount compatible equipment racks
Included plug-lock inserts ensure components remain connected and powered

Package Includes

PDUMV30HV 63.75 inch Local Metered PDU
Plug-lock inserts (6 C20, 24 C14)
Spare installation buttons, 2.9 mm/4.6 mm
Set of mounting brackets and installation hardware
Owner’s Manual

Weight	11.4 lbs
Dimensions	65 × 3 × 5 in
UPC Code	037332139351
Cord Length	10.01
Max Input Amps	24
Brand	Tripp Lite
PDU Type	Local Metered
Input Phase	Single-Phase
PDU Input Voltage	208; 230
Recommended Electrical Service	Single-phase 30A 208/230V service
Maximum Input Amps Details	Agency de-rated to 24A continuous
PDU Plug Type	NEMA L6-30P
Input Cord Length (m)	3.05
Output Capacity (kW)	5.5
Output Capacity Details	5.5kW (230V), 5kW (208V) total capacity / 30A max (Agency de-rated to 24A),15A max per breakered outlet bank; 12A max per C13 outlet
Frequency Compatibility	50 / 60 Hz
Output Receptacle Details	Compatible with Eaton Tripp Lite Power Cords
Output Receptacles	(24) C13; (6) C19
Output Nominal Voltage	208/230V
Overload Protection	Two 15A breakers protect 15 outlets each
Front Panel LCD Display	Set of 2 digital current meters continuously report PDU output current in amps for Bank 1 (15A max) and Bank 2 (15A max) outlets
LED Indicators	Includes 2 built-in 2-character LED meters to display power consumption of items plugged into each separately breakered 15A loading bank.
Material of Construction	Aluminum
Rack Height	0U
Form Factors Supported	0u vertical installation in equipment racks, plus under-counter and wallmount
PDU Form Factor	Vertical (0U)
Shipping Dimensions (hwd / cm)	12.70 x 7.62 x 165.10
Shipping Weight (kg)	5.17
Unit Dimensions (hwd / cm)	162 x 5.7 x 9.5
Unit Weight (kg)	3.63
Operating Temperature Range	32° to 104°F (0° to 40°C)
Storage Temperature Range	-22° to 122°F (-30° to 50°C)
Relative Humidity	0-95% non-condensing
Operating Elevation	0-10000 ft. (0-3000 m)
Product Certifications	RETIE (Colombia); NOM (Mexico); UL 62368-1
Product Compliance	RoHS; FCC Part 15 Class A (USA)
Product Warranty Period (Worldwide)	2-year limited warranty
WEXT1C	Extended Warranty and Technical Support for Select Products – DC Power, KVM, PDU, Inverters, Power Management
WEXT2C	Extended Warranty and Technical Support for Select Products – DC Power Supplies, KVM Switches, PDUs, Power Inverters, Power Management
WEXT3C	Extended Warranty and Technical Support for Select Products – Cables and Connectivity, DC Power Supplies, KVM Switches, PDUs, Power Inverters
