NEMA L5-20P input with 15-ft. (4.57 m) cord and 5-20P adapter
14 NEMA 5-15/20R outlets
Switchless design prevents accidental shutdown
36 in. all-metal housing
Supports toolless 0U vertical mounting
Overview

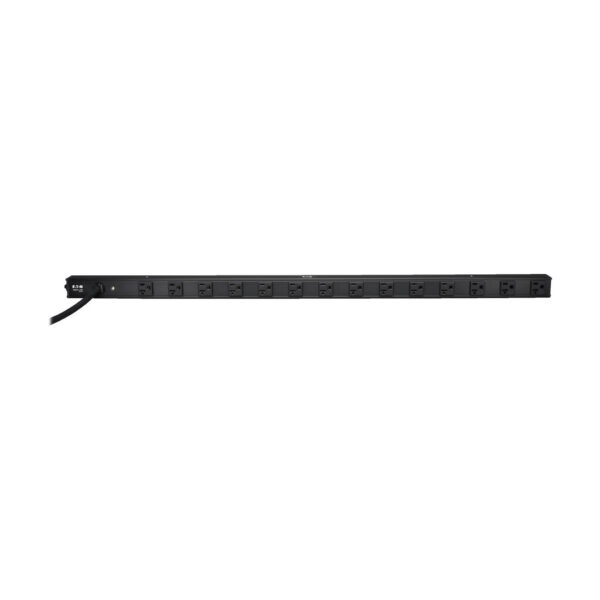

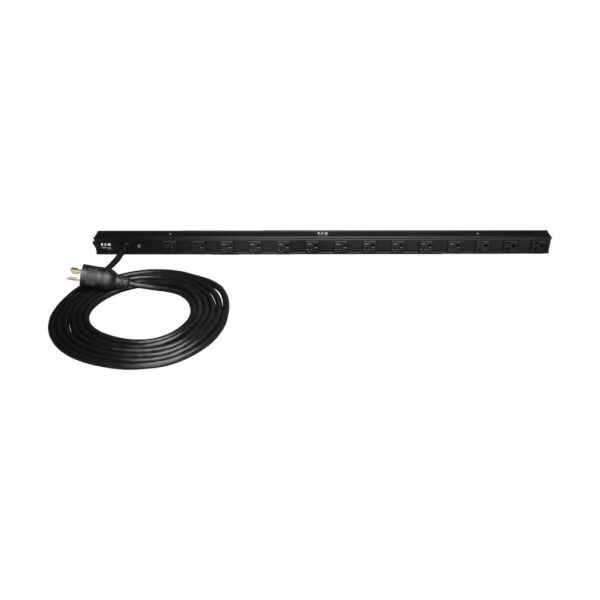

The PDUV20 1.9kW Single-Phase 120V Basic PDU is an excellent no-frills unit for data centers, server rooms and network wiring closets. Perfectly suited for high-density IT environments, the PDUV20 features 14 NEMA 5-15/20R outlets. The NEMA L5-20P input plug with long 15-ft. (4.57 m) cord connects to your facility’s compatible AC power source, generator or protected UPS to distribute power to connected equipment. An included adapter converts the input plug to NEMA 5-20P.

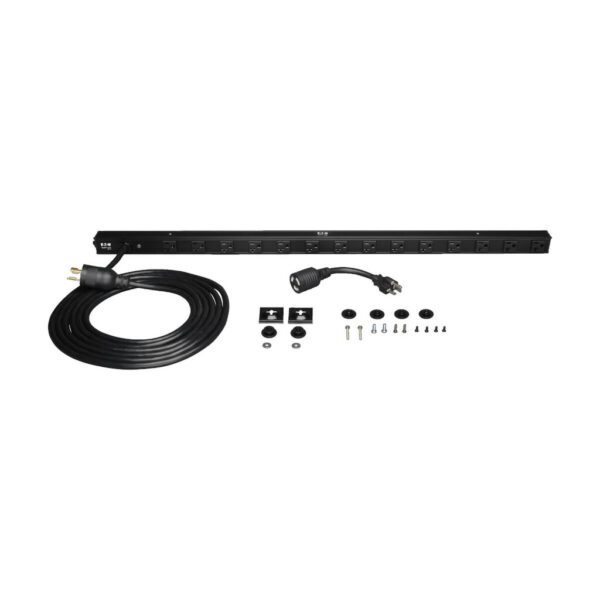

The switchless design prevents an accidental shutdown, which could lead to costly downtime. A 20A circuit breaker protects connected equipment from dangerous overloads. The 36-inch all-metal housing supports 0U vertical mounting in EIA-standard 19-inch racks using the included hardware and mounting clips or toolless mounting using the included buttons. You can also mount the PDUV20 on a wall or workbench or under a counter with user-supplied hardware.
Features
Reliable Single-Phase Power Distribution
Versatile no-frills rack PDU (rPDU) for data centers, server rooms and network wiring closets
14 NEMA 5-15/20R outlets

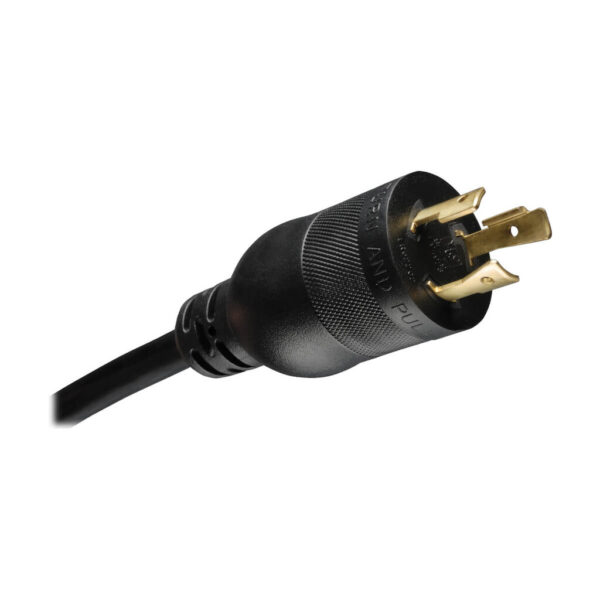

NEMA L5-20P input with 15-ft. (4.57 m) cord and 5-20P adapter

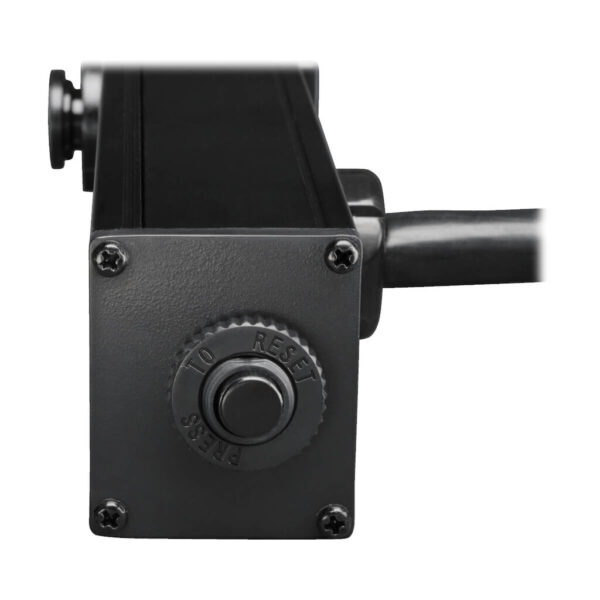

20A circuit breaker protects outlets against overloads
Switchless Design
Prevents accidental shutdowns and costly downtime
Versatile Installation Options

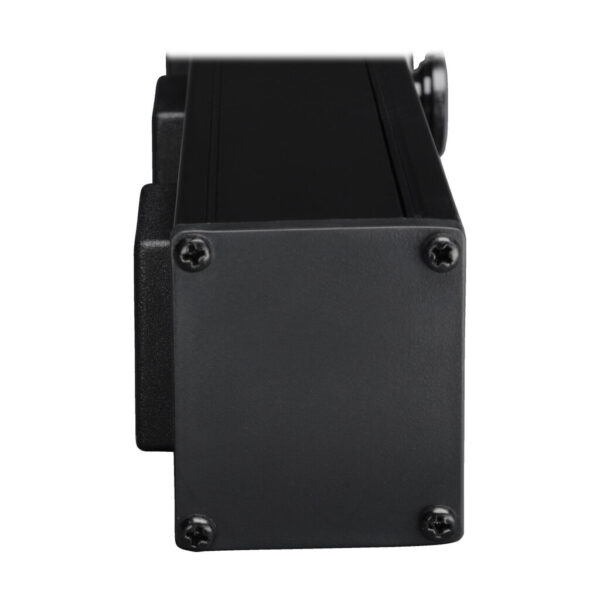

36 in. all-metal housing
Supports toolless 0U vertical mounting in EIA-standard 19 in. racks
Also supports 0U mounting using included hardware

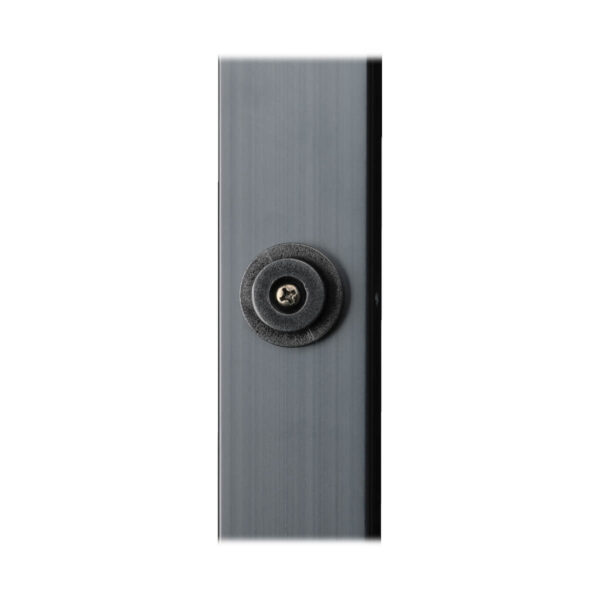

Rear installation buttons can be relocated to the left or right surface for rear, center or forward-facing outlet orientation
Also mounts on wall, workbench or under a counter with user-supplied hardware
1.92kW (120V) / 16A total capacity; 16A max per 5-15/20R outlet
Frequency Compatibility
50 / 60 Hz
Output Receptacles
(14) 5-15/20R
Output Nominal Voltage
120V
Overload Protection
20A circuit breaker
Material of Construction
Metal
Rack Height
0U
Form Factors Supported
Vertical (0U) mounting in rack enclosures, horizontal mount in raceways and a variety of other applications
PDU Form Factor
Vertical (0U)
Shipping Dimensions (hwd / cm)
100.99 x 11.71 x 6.10
Shipping Weight (kg)
2.49
Unit Dimensions (hwd / cm)
92.6 x 3.81 x 4.17
Unit Weight (kg)
1.82
Operating Temperature Range
32° to 104°F (0° to 40°C)
Storage Temperature Range
-22° to 122°F (-30° to 50°C)
Relative Humidity
5% to 95% non-condensing
Operating Elevation
0-10000 ft. (0-3000 m)
Product Certifications
CAN/CSA-C22.2 No. 60950-1 (Canada); NOM (Mexico); UL 60950-1
Product Compliance
RoHS
Product Warranty Period (Worldwide)
5-year limited warranty
