Ideal no-frills PDU for telecom, security, audio/video and other network applications

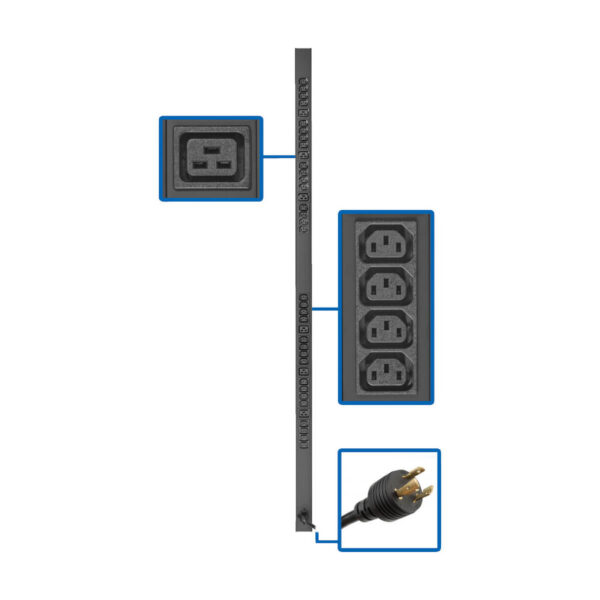

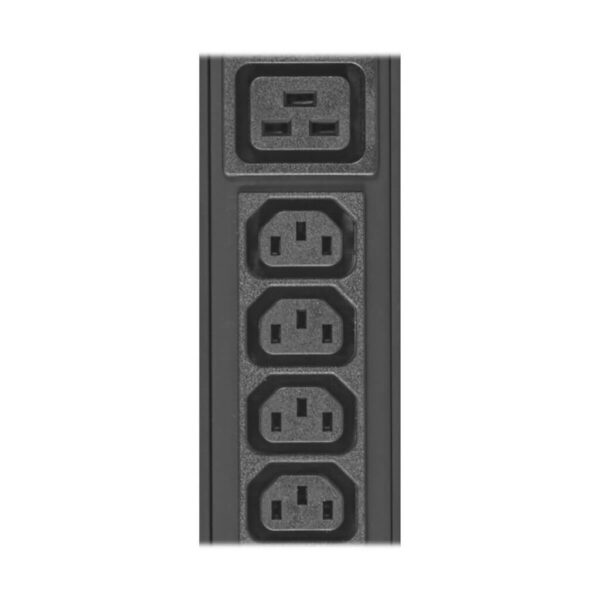

32 C13 and 6 C19 outlets distribute AC power to connected equipment; Compatible with Eaton Tripp Lite power cords.
Switchless design helps prevent accidental shutdowns that can lead to costly downtime

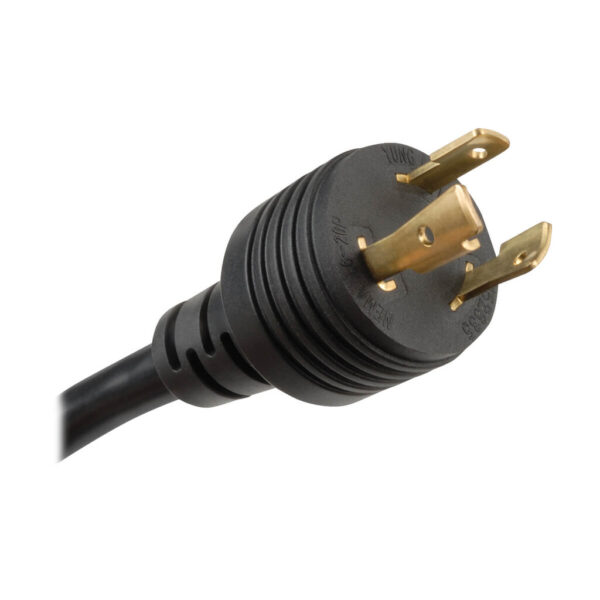

10 ft. cord with NEMA L6-20P single-phase input connects to compatible power source

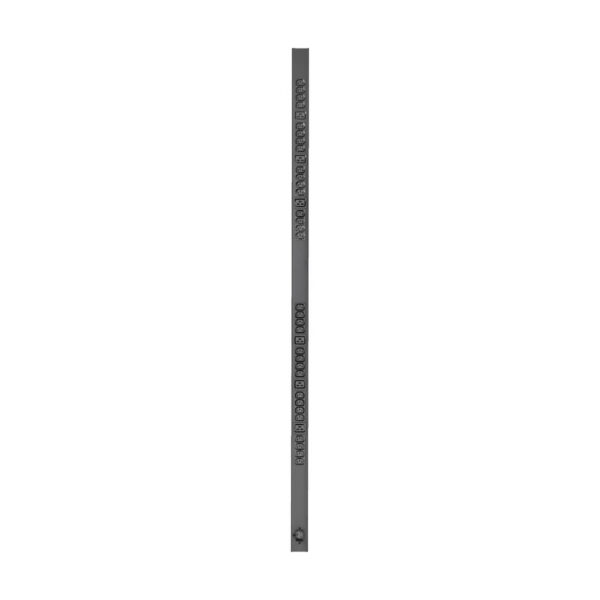

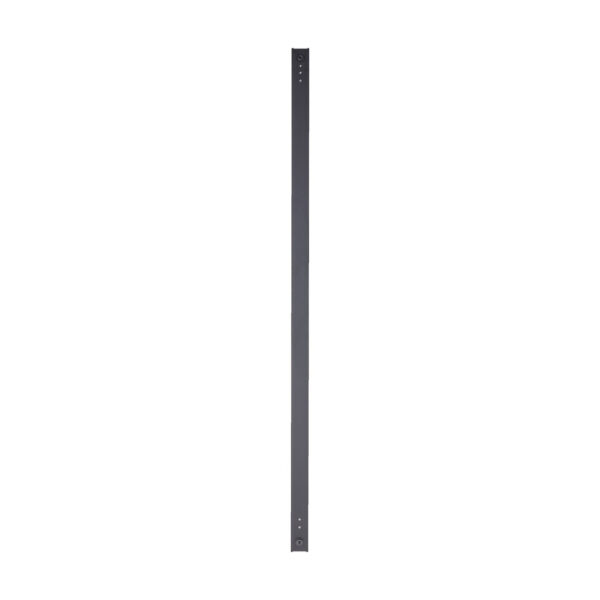

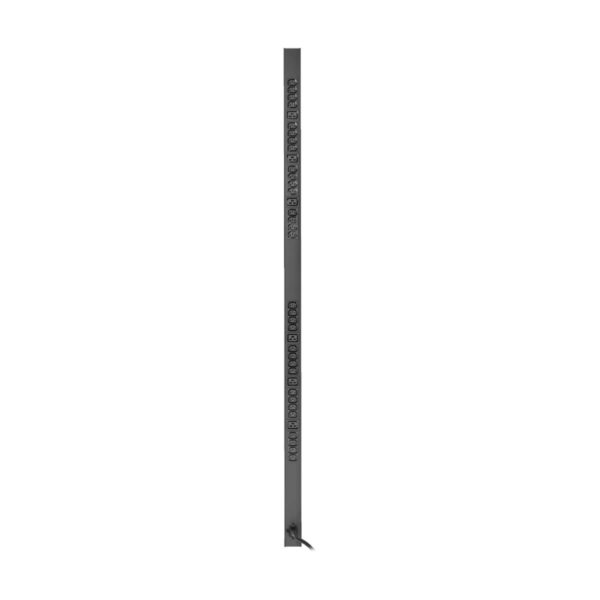

63.75 in. 0U PDU with included mounting hardware installs in rack or under counter
Features

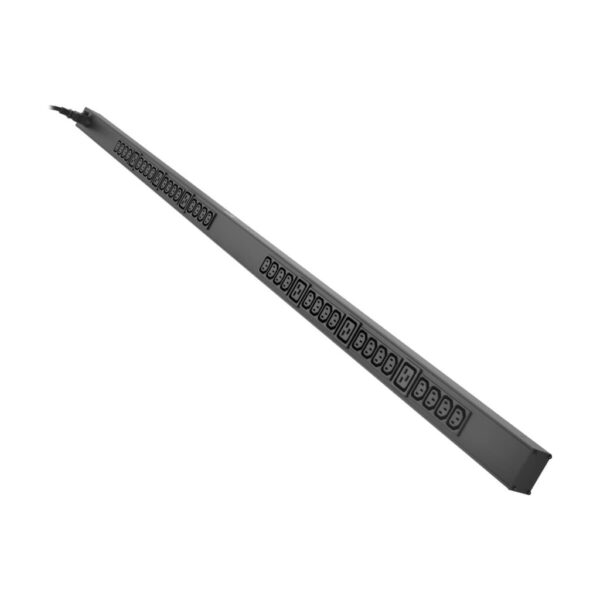

Single-Phase 208/230V rack PDU (rPDU) Distributes Network-Grade Power to Multiple Loads This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for small to mid-sized data centers, computer rooms and network closets, the PDUV20HVL6-72 features 32 C13 and six C19 outlets for connecting equipment. A 10-foot cord with NEMA L6-20P input plug connects to your facility’s AC power source, generator or protected UPS system to distribute power to connected loads. The switchless design helps prevent an accidental shutdown, which could lead to costly downtime.

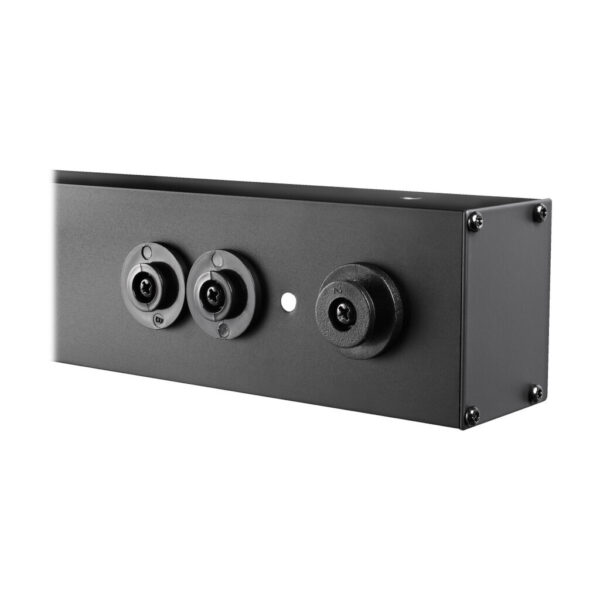

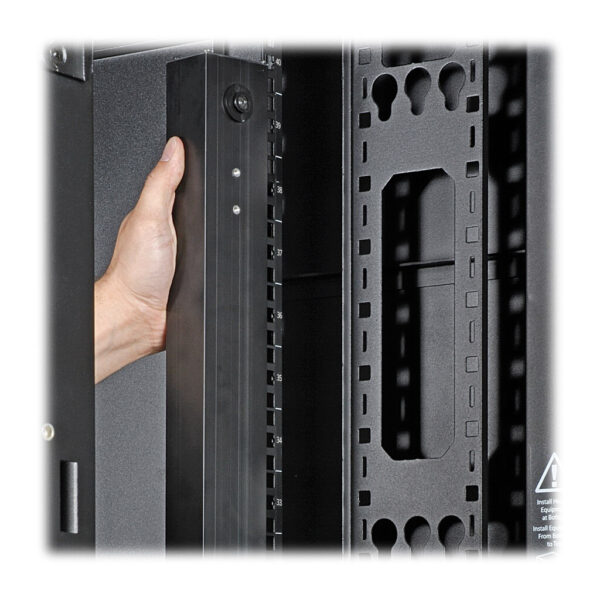

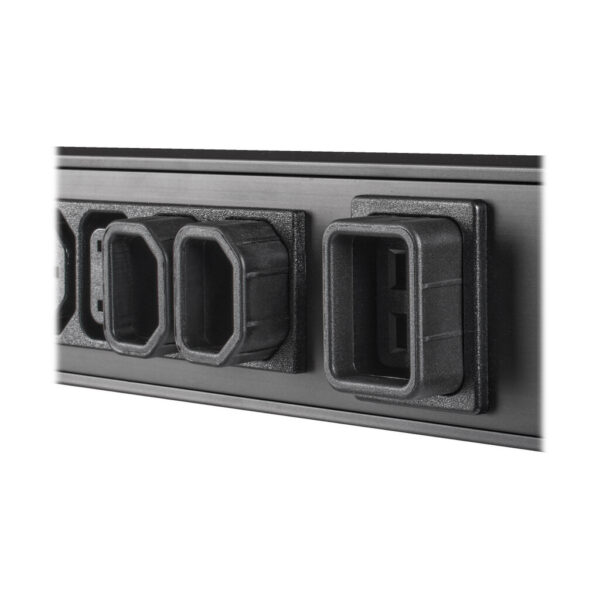

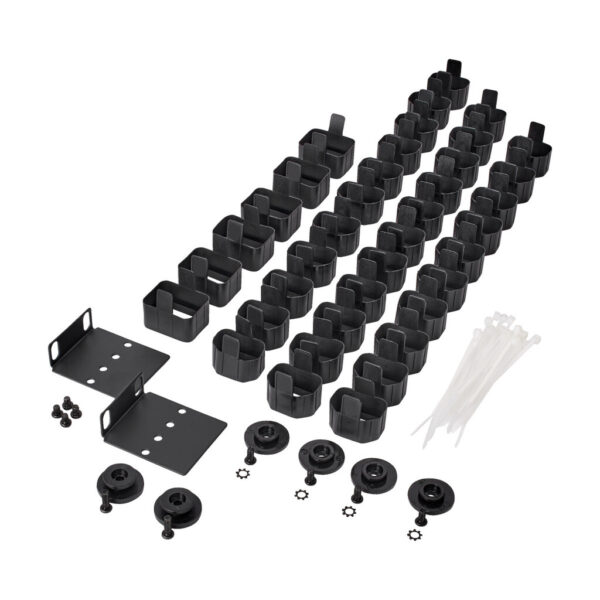

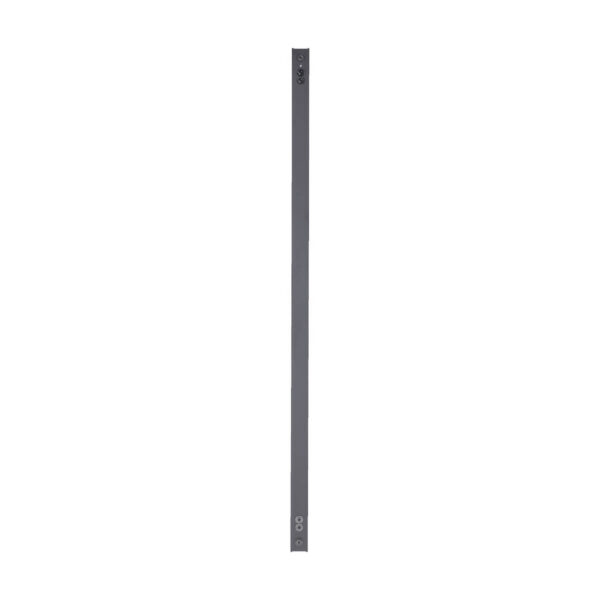

Versatile Installation Options Give You Plenty of Choices The 63.75-inch all-metal housing supports 0U vertical mounting in an EIA-standard 19-inch rack using the included toolless mounting buttons or the included mounting clips and hardware. You may also use the clips to secure the PDU to a wall, counter or other flat, secure surface. Included C20 and C14 plug-lock inserts attach to the connected components’ plugs to keep them connected and the devices continuously powered.
3.7kW (230V), 3.33kW (208V) / 20A total capacity (Agency de-rated 16A); 16A max per C19 outlet; 12A max per C13 outlet
Frequency Compatibility
50 / 60 Hz
Output Receptacle Details
Compatible with Eaton Tripp Lite Power Cords
Output Receptacles
(32) C13; (6) C19
Output Nominal Voltage
208/230V
Material of Construction
Metal
Rack Height
0U
Form Factors Supported
0u vertical installation in equipment racks, plus under-counter and wallmount
PDU Form Factor
Vertical (0U)
Shipping Weight (kg)
4.90
Unit Dimensions (hwd / cm)
162 x 5.7 x 9.5
Unit Weight (kg)
3.63
Operating Temperature Range
32° to 104°F (0° to 40°C)
Storage Temperature Range
-22° to 122°F (-30° to 50°C)
Relative Humidity
5% to 95% non-condensing
Operating Elevation
0-10000 ft. (0-3000 m)
Product Certifications
RETIE (Colombia); NOM (Mexico); UL 60950-1
Product Compliance
RoHS
Product Warranty Period (Worldwide)
5-year limited warranty
