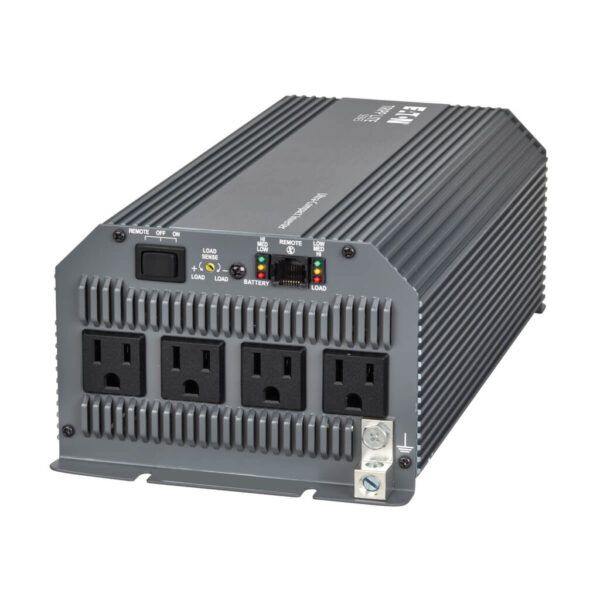

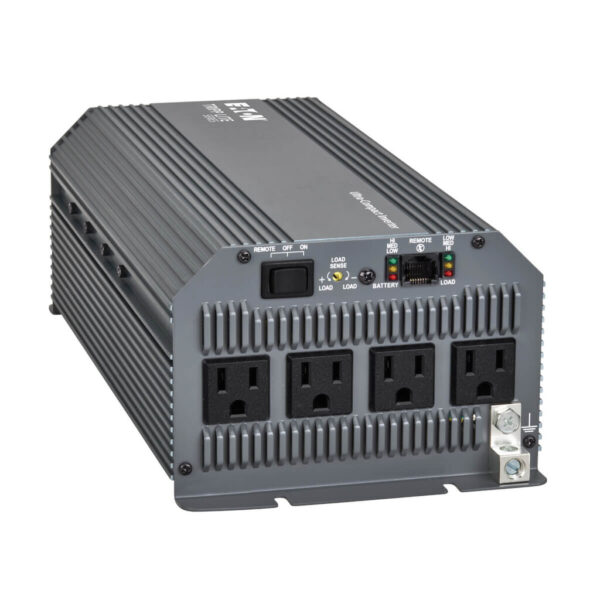

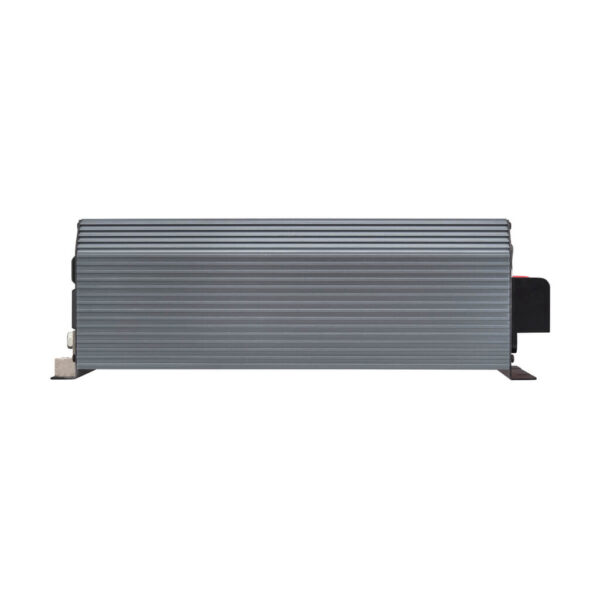

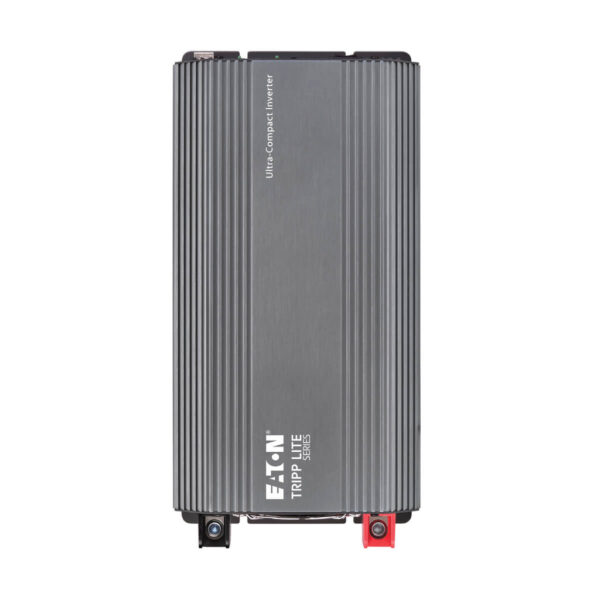

Tripp Lite series 1000W PowerVerter Compact Inverter for Trucks with 4 Outlets
$429.86
Tripp Lite series 1000W PowerVerter Compact Inverter for Trucks with 4 Outlets
Manufacturer Warehouse: 46 available
*Items typically ship within 3-4 weeks if stock at factory
*Items typically ship within 3-4 weeks if stock at factory
Need project pricing? Add items to your cart to request a custom project quote.
Quick Specs
- 12V DC input; 120V AC output; 4 outlets
- 1000 watts continuous output
- 2000 watts peak output (instantaneous)
- Powers an entire mobile office
Overview
Utilize your vehicle’s battery to efficiently power office equipment on the road or power tools at a work site. Continuously supplies up to 1000 watts of 120V AC power to 4 AC outlets from any 12V battery. Includes a set of DC terminals for simple installation. Compact, lightweight metal case design is among the smallest, most rugged inverters available at this power level.
NOTE: To protect against high current draw that may occur during inverter failure, a fuse link rated at 175a should be positioned no more than 18″ from the PV1000HF’s battery in the positive line.
Features
- Allows users to run AC appliances from any properly-sized 12V battery or automotive DC system
- Converts 12V DC battery power to 120V AC power
- 1000 watts continuous output power; 2000 watts peak output power (instantaneous)
- 4 outlets
- Compact, lightweight design with all-metal housing
- Remote control jack provides optional remote monitoring and control when used with optional remote module (APSRM4, sold separately)
- Low battery alarm with auto-shutoff prevents deep battery discharge
- High-efficiency operation conserves batteries to prolong run time
- Battery charge level LEDs indicate the approximate charge level (high/medium/low) of connected batteries
- Connected load level LEDs indicate the approximate wattage load level (high/medium/low) of connected equipment
- Operating mode switch controls inverter operation
- Battery Charge Conservation Dial conserves battery power by setting the load-level at which the inverter automatically shuts off
- Cooling fan regulates internal temperature and prolongs service life
- Mounting flanges provide safe, fixed installation
- Grounding lug connects to vehicle ground
- Grooved cooling surface provides additional surface area for more efficient cooling
Package Includes
- PV1000HF Inverter
- Warranty information
- Instruction manual
| Weight | 7.1 lbs |
|---|---|
| Dimensions | 18.4 × 7.8 × 4.4 in |
| UPC Code | 037332097187 |
| Output (W) | 1000 |
| Brand | |
| Maximum Input Amps / Watts | Full continuous load – 100A at 12V DC, No load – 1.5A at 12V DC, Shutdown / load sense mode – 100 micro amps |
| Recommended Electrical Service | Requires 12V DC input source capable of delivering 100A for the required duration (when used at full capacity). For automotive applications, hardwire installation with 175A battery system fusing is recommended. |

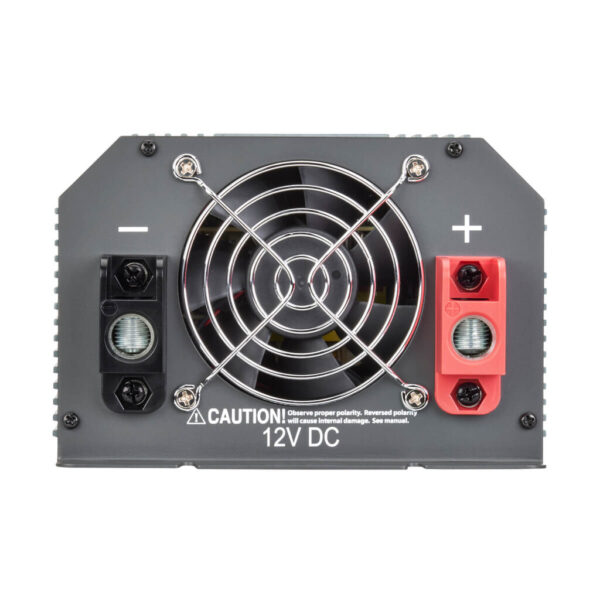

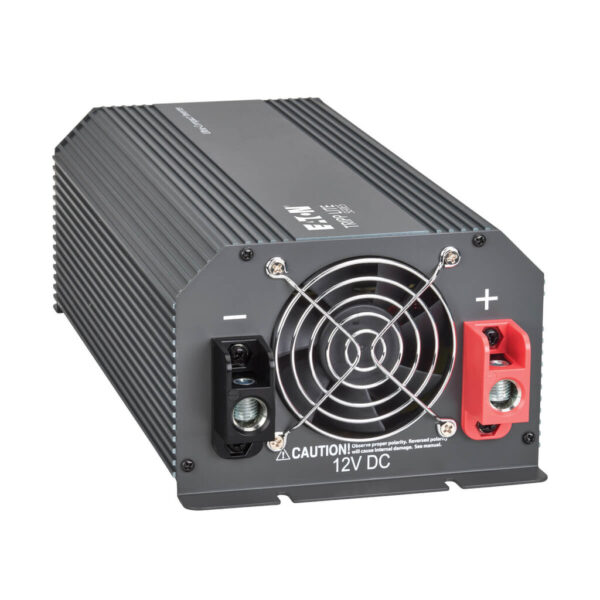

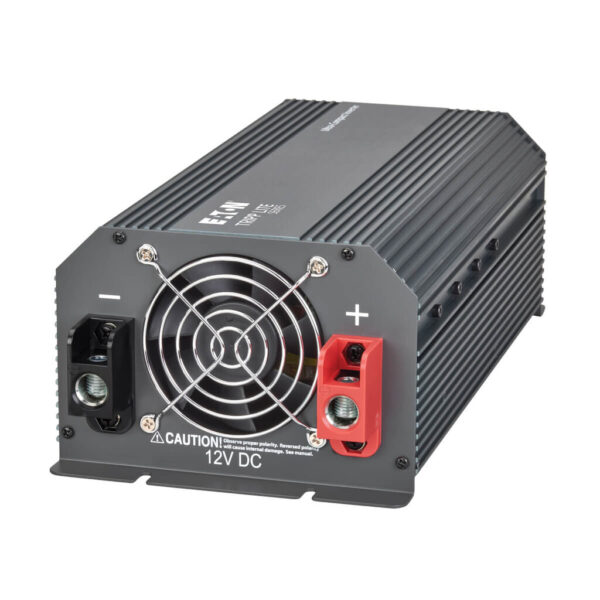

| Input Connection Type | Set of 2 DC bolt-down wiring terminals |
| Input Cord Length Details | User supplies cabling. Minimum gauges for full load operation: #4 wire (12 ft max), #2 wire (20 ft max), #0 wire (31 ft max). |
| Voltage Compatibility (VDC) | 12 |
| Frequency Compatibility | 60 Hz |
| Pure Sine Wave Output | No |
| Output (Watts) | 1000 |
| Nominal Output Voltage(s) Supported | 120V |
| Output Receptacles | (4) 5-15R |
| Continuous Output Capacity (Watts) | 1000 |
| Peak Output Capacity (Watts) | 2000 |
| Output Voltage Regulation | Maintains PWM sine wave output voltage of 115 VAC (+/- 10% VAC) |
| Output Frequency Regulation | 60 Hz (+/- 5% Hz) |
| Overload Protection | Automatic overload protection shuts down inverter system in the event of overloads. Inverter and electrical system are further protected via four internal 40A automotive fuses |
| DC System Voltage (VDC) | 12 |

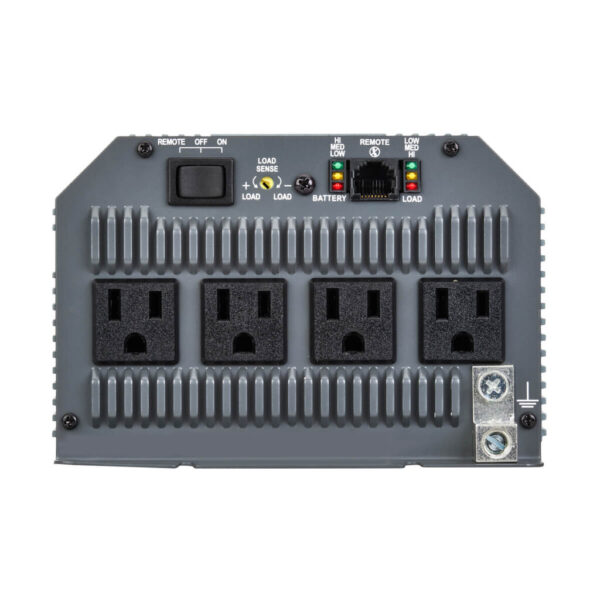

| Front Panel LEDs | Set of 6 LEDs offer continuous status information on battery and connected load conditions |
| Switches | 3 position rocker switch enables on/off power control, plus "remote" setting which enables inverter to be remotely powered on or off when used in conjunction with APSRM4 Remote Control Module (sold separately) |
| Audible Alarm | Dual function alarm indicates overload conditions or low DC input voltage of 10.5V or less |
| Material of Construction | Aluminum, Steel |
| Cooling Method | Fan |

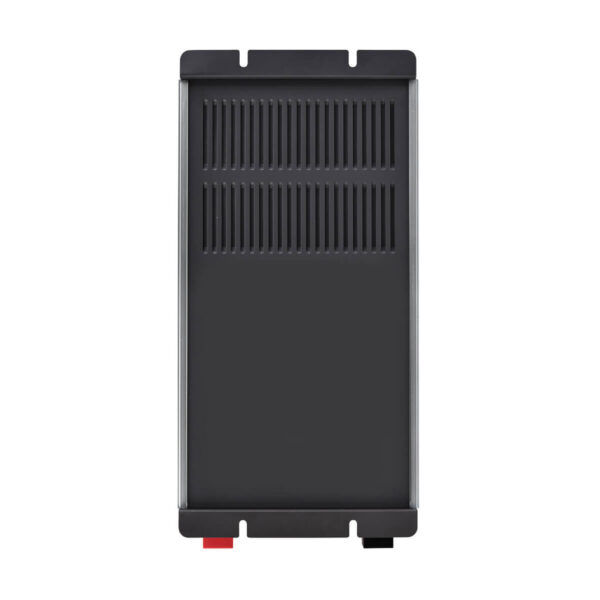

| Form Factors Supported | Mounting slots enable permanent placement of inverter on any horizontal surface (see manual for additional mounting information) |
| Shipping Dimensions (hwd / cm) | 11.18 x 19.81 x 46.74 |
| Shipping Weight (kg) | 3.22 |
| Unit Dimensions (hwd / cm) | 10.8 x 15.24 x 33.02 |
| Unit Weight (kg) | 2.72 |
| Relative Humidity | 0-95% non-condensing |
| Product Compliance | RoHS |
| Product Warranty Period (Worldwide) | 1-year limited warranty |
| WEXT1C | Extended Warranty and Technical Support for Select Products – DC Power, KVM, PDU, Inverters, Power Management |
| WEXT2C | Extended Warranty and Technical Support for Select Products – DC Power Supplies, KVM Switches, PDUs, Power Inverters, Power Management |
| WEXT3C | Extended Warranty and Technical Support for Select Products – Cables and Connectivity, DC Power Supplies, KVM Switches, PDUs, Power Inverters |
