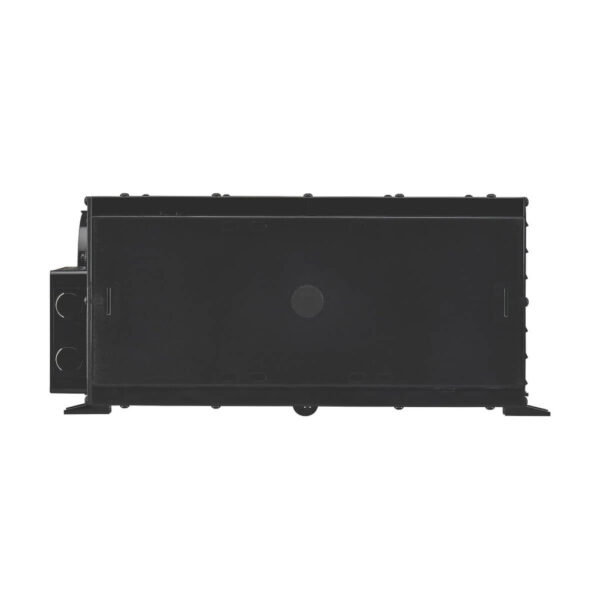

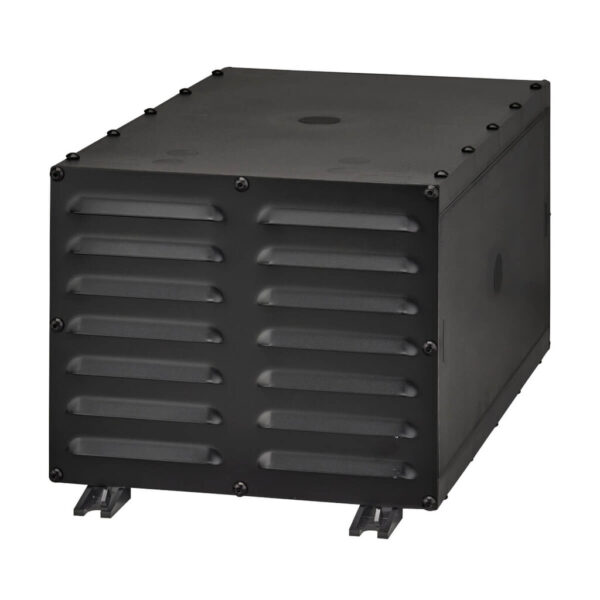

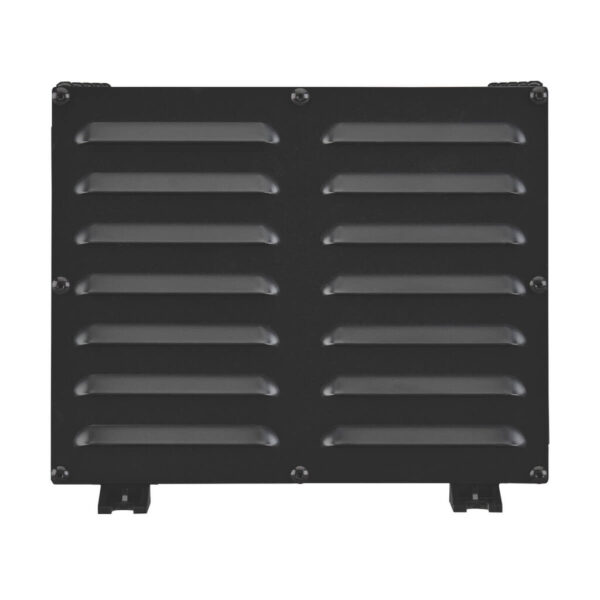

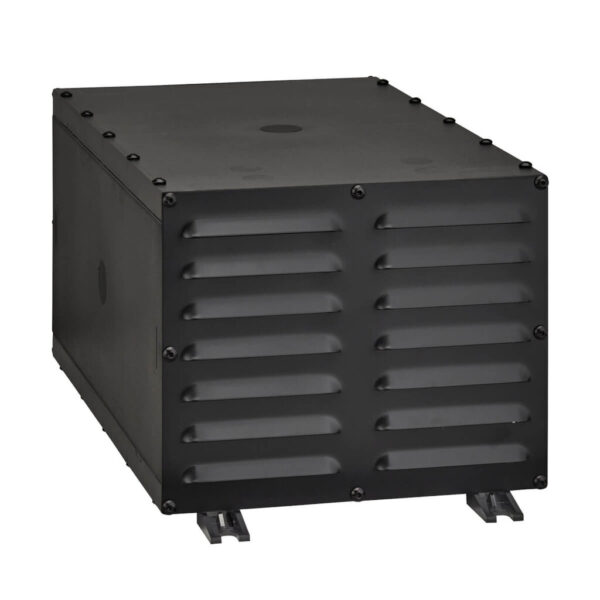

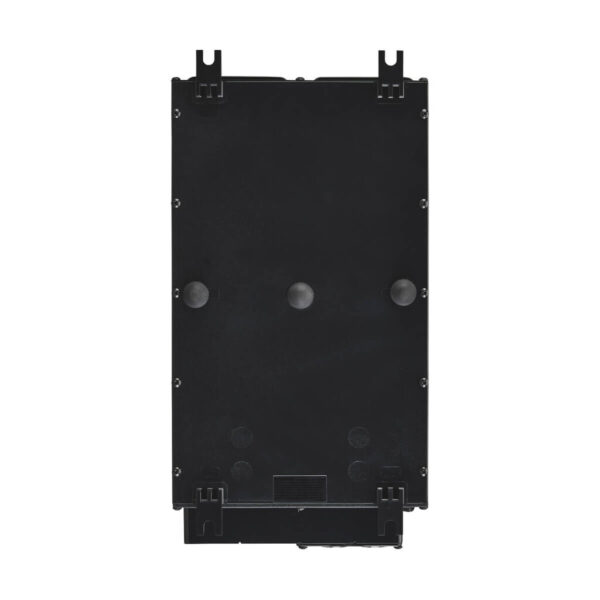

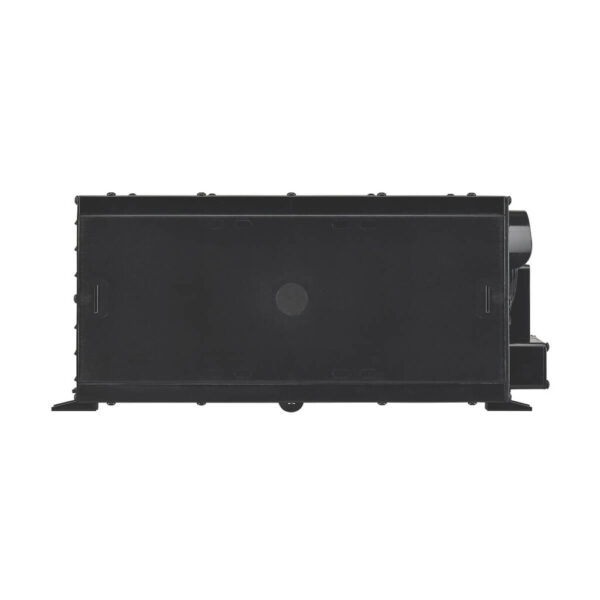

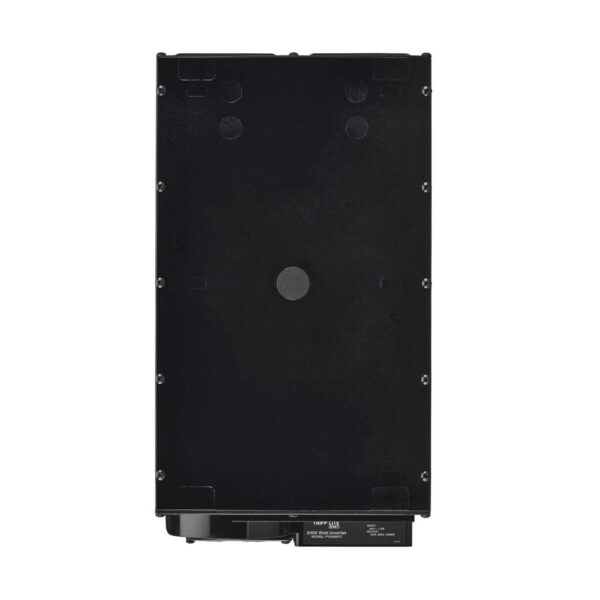

Tripp Lite series 2400W PowerVerter Plus Industrial-Strength Inverter with 2 Outlets

Quick Specs

• Designed for heavy duty and motor loads
• 24V DC input; 120V AC output; 2 outlets
• 2400W continuous output
• Peak surge output: OverPower (up to 1 hour)—3600W; Double-Boost (up to 10 seconds)—4800W
• High-efficiency power conversion
• Automatic overload protection

Overview

Continuously supplies up to 2400W of 120V AC power to 2 AC outlets from any 24V battery or automotive DC source. Frequency control locks AC output at 60Hz for operating stability of motor loads. Includes a set of high current DC input terminals for simple, permanent installation. Highly reliable large transformer design specializes in powering motors and other inductive loads with high-current startup needs.

NOTE: To protect against high current draw that may occur during inverter failure, a fuse link rated at 250a should be positioned no more than 18″ from the PV2400FC’s battery in the positive line.

Features

• Converts 24V DC battery power to 120V AC power
• 2400W continuous output power
• Peak surge output: OverPower (up to 1 hour), 3600 watts; Double-Boost (up to 10 seconds), 4800W

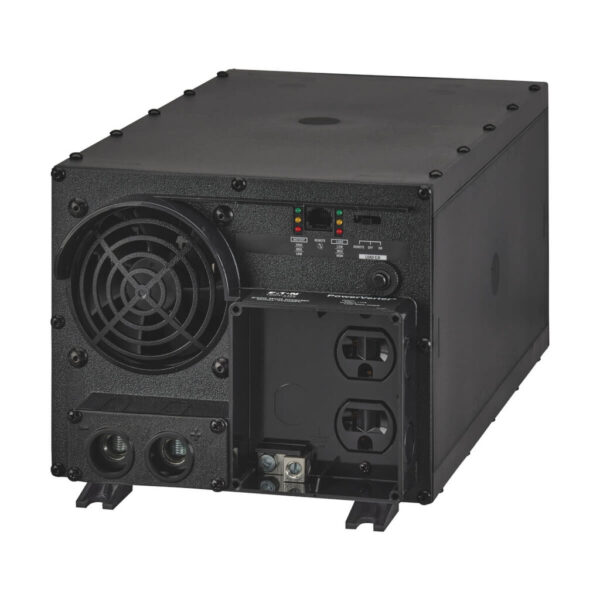

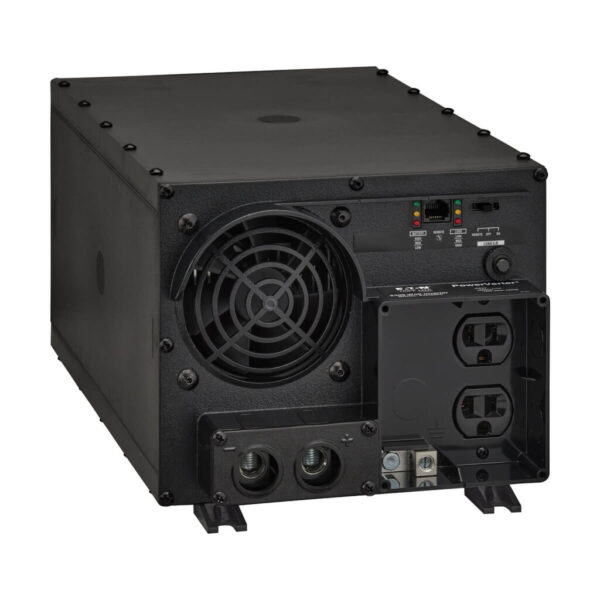

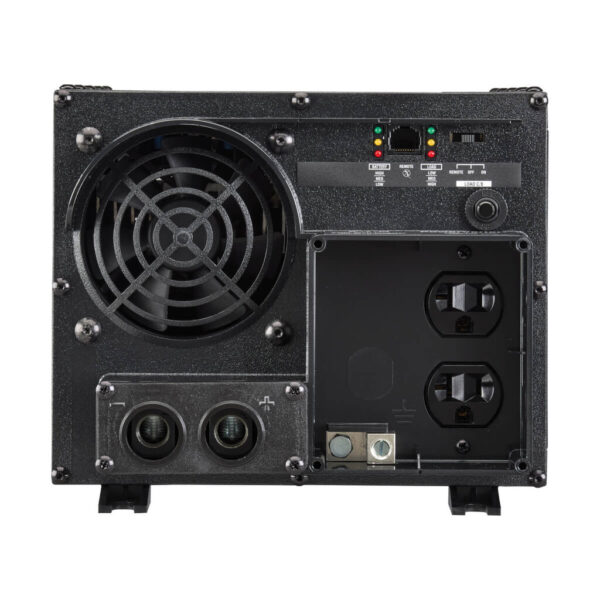

• Set of 2 bolt-down DC wiring terminals for 24V battery connection; 2 x NEMA 5-15/20R outlets
• Frequency control for operating stability
• High-efficiency operation conserves batteries to prolong run time
• Diagnostic LEDs indicate load level (high, medium, and low) and battery charge (high, medium, and low)
• DC fusing protects inverter against overload
• High-impact polycarbonate housing
• RJ45 port allows connection of APS/PowerVerter Remote Switch (APSRM4)

Package Includes

• PV2400FC Inverter
• Instruction manual
