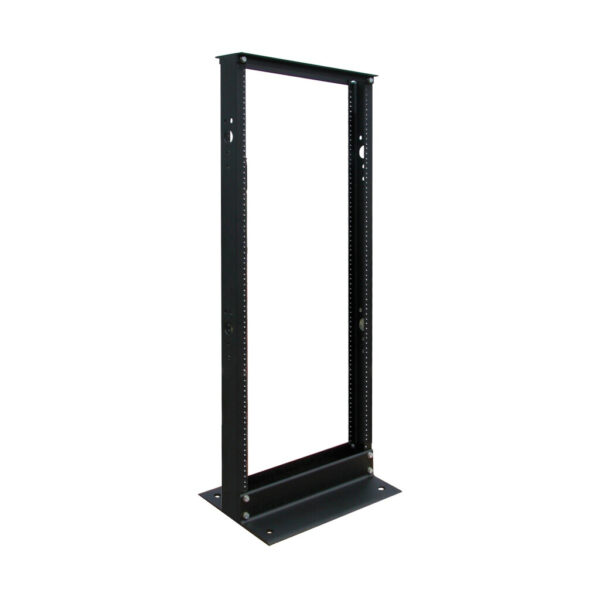

Tripp Lite series 25U SmartRack 2-Post Open Frame Rack – Organize and Secure Network Rack Equipment

Quick Specs

• 25U 2-post open frame rack
• Black aluminum with 12-24 threaded and numbered mounting holes
• Toolless button holes to accept PDUs or cable managers

Overview

SR2POST25 2-Post SmartRack® Open Frame Rack is an economical way to accommodate 25U of rack space for 19-inch rack-mount applications in limited spaces that do not require a lockable enclosure. Its heavy-duty, aluminum construction can safely support 800 pounds (362.9 kilograms) of rack-mount equipment, and its open design provides easy access to equipment and cabling. The black, textured powder coat finish makes it resistant to scratching while giving it a “classic” attractive appearance. The SR2POST25 is easy to install due to a self-squaring design combined with 12-24 threaded and numbered mounting positions and bolt-down provisions. It uses toolless button-hole mounting for vertical PDUs and cable managers. In high-density environments, multiple units can be bolted together side by side for easy expansion or customization. The SR2POST25 2-Post SmartRack Open Frame Rack has been approved by EIA-310-D, IEC 60297-3-100 and RoHS.

Features

• Supports 800 lbs (362.9 kgs) of rackmount equipment
• Textured powder coat finish
• Heavy Duty Aluminum construction
• 12-24 threaded and numbered mounting positions
• Toolless button holes to accept PDUs or cable managers
• Bolt down provisions
• Self squaring design
• Black finish
• Easy assembly

Package Includes

• SR2POST25
• 28 pieces each of 12-24 screws and washers for equipment mounting
• Installation hardware
• Cable management hooks
• Warranty Information
• Owner’s Manual
