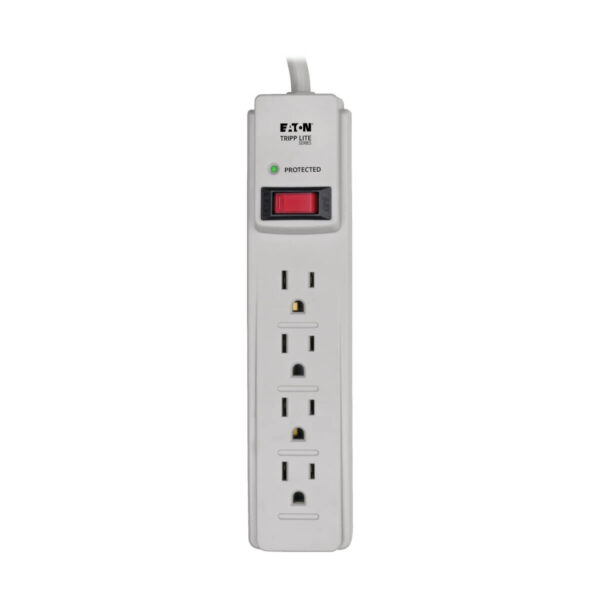

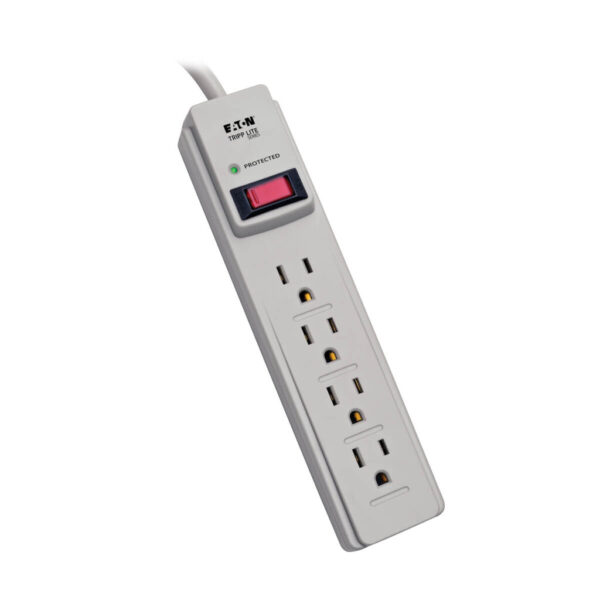

Tripp Lite series Protect It! 4-Outlet Home Computer Surge Protector Strip, 4 ft. (1.22 m) Cord, 500 Joules

$18.37

Brand: Tripp Lite
Part Number (MPN): TLP404
UPC / GTIN: 037332119131
Datasheet: PDF

Tripp Lite series Protect It! 4-Outlet Home Computer Surge Protector Strip, 4 ft. (1.22 m) Cord, 500 Joules

Toronto Stock: 39 available
Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

  • 4 outlets / 4-ft. (1.22 m) cord
  • 500 joule rating

Overview

The TLP404 offers economical AC surge suppression for protection of workstations, desktop PCs, telecom systems and other sensitive electronics. Built-in AC surge suppression shields connected equipment from damage and performance problems due to transient surges. TLP404 offers four total outlets, four-foot (1.2-meter) cord and diagnostic LED to warn of suppressor damage. AC suppression rated at 500 joules shields equipment from surges and line noise. Attractive light gray suppressor housing with keyhole mounting tabs and one designated transformer plug outlet offers convenient protection of desktop computer equipment and accessories.

Features

  • 4 outlets
  • 4-ft. (1.22 m) cord
  • Surge suppression rating: 500 joules
  • EMI/RFI noise filtering
  • 15 amp resettable circuit breaker
  • Diagnostic LED confirms surge protection status
  • Includes full normal mode (H-N) and common mode (N-G/H-G) line surge suppression

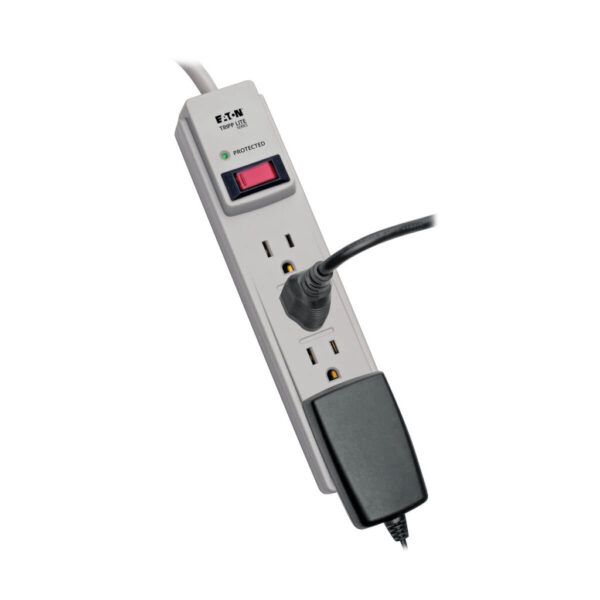

  • Can accommodate 1 large transformer plug without covering remaining outlets, 2 total transformers

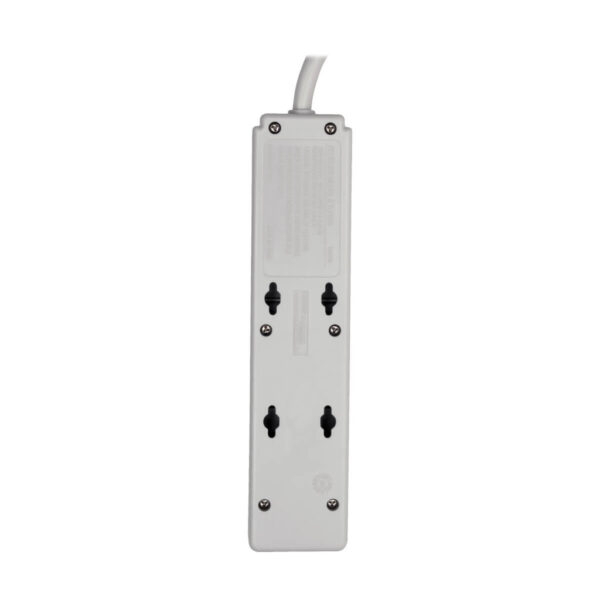

  • Keyhole supports for wall mounting
  • Non-Lighted power switch
  • $1,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only)
  • Automatic shutoff permanently cuts power to outlets if protection circuit is incapacitated, preventing equipment damage and indicating replacement is required

Package Includes

  • TLP404 surge suppressor
  • Instruction manual with warranty information
Weight 0.88 lbs
Dimensions 5 × 2 × 11.9 in
UPC Code

037332119131

Cord Length

4

Output (W)

1800

Joule Rating

500

Brand

Nominal Input Voltage(s) Supported

120V AC

Input Cord Gauge Type

14 gauge; SJT

Input Cord Gauge (AWG)

14

Voltage Compatibility (VAC)

120

Maximum Surge Amps

22500

Input Plug Type

NEMA 5-15P

Input Cord Details

SJT

Right-Angle Plug

No

Input Cord Length (m)

1.22

Frequency Compatibility

50 / 60 Hz

Output (Watts)

1800

Output Receptacles

(4) 5-15R

Circuit Breaker (amps)

15

Overload Protection

15A resettable combo switch / circuit breaker

Transformer Accommodation

(2) Yes

Outlet Orientation

Single row of 4 outlets

Diagnostic LED(s)

Yes

Switches

Combination AC circuit breaker and 2 position on/off power switch

Diagnostic LED Details

Built-in LED confirms suppressor "protection present" (green) status

AC Suppression Joule Rating

500

AC Suppression Response Time

< 1 ns

Protection Modes

Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression

UL1449 Let Through Rating

500V – UL Verified

EMI / RFI Filtering

Yes

Automatic Shut-Off

Yes

Network (Ethernet) Protection

No

Material of Construction

Plastic

Power Cord Color

Light Gray

Housing Color

Light Gray

Mounting Holes or Slots

Yes

Slot or Hole Mount Measurement (Center to Center)

Distance between slots = 57.5 mm; Distance between slot height = 26 mm

Outlets Measurement (Center to Center)

28.6mm

Receptacle Color

Gray

Shipping Dimensions (hwd / cm)

30.23 x 5.08 x 12.70

Shipping Weight (kg)

0.40

Unit Dimensions (hwd / cm)

3 x 4.7 x 20.6

Unit Weight (kg)

0.45

Operating Temperature Range

32° to 104°F (0° to 40°C)

Storage Temperature Range

5° to 104°F (-15° to 40°C)

Operating Humidity Range

20% to 85% RH

Storage Humidity Range

0% to 90% RH

Product Certifications

CAN/CSA-C22.2 No. 269.3 (Canada); CAN/CSA-C22.2 No. 308 (Canada); cUL Listed; UL 1449; UL 1363; UL Listed

Product Compliance

RoHS

Product Warranty Period (Worldwide)

Lifetime limited warranty

Connected Equipment Insurance (U.S., Canada & Puerto Rico)

$1,000 Ultimate Lifetime Insurance
