7 outlets (6 right-angle outlets and 1 designated transformer outlet)
4-ft. (1.22 m) cord
1080 joule rating
Overview

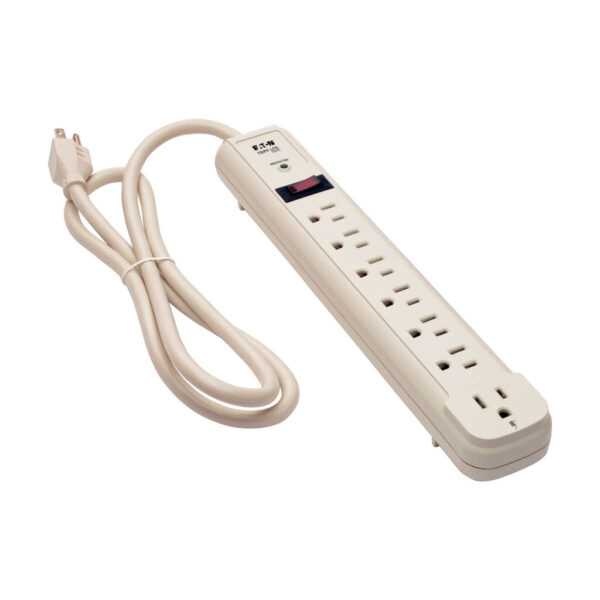

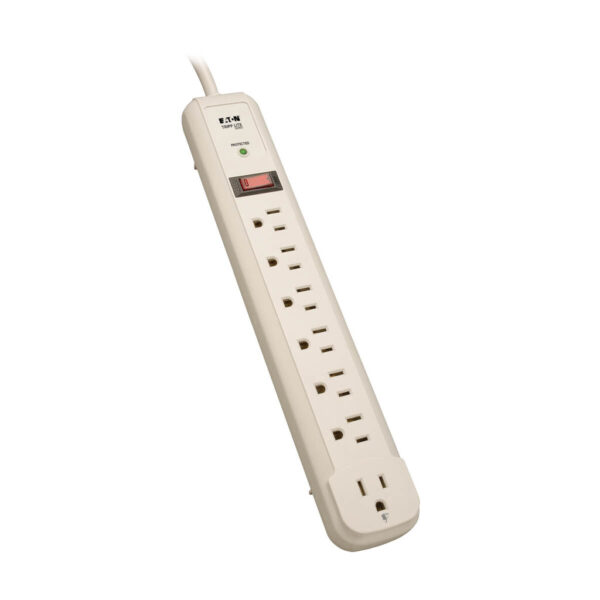

The TLP74R offers economical AC surge suppression for protection of workstations, desktop PCs, telecom systems and other sensitive electronics. Built-in AC surge suppression shields connected equipment from damage and performance problems due to transient surges. TLP74R offers seven total outlets (six at right angle and one designated transformer plug outlet), 4-foot (1.2-meter) cord and diagnostic LED to warn of suppressor damage. AC suppression rated at 1080 joules shields equipment from surges and line noise. Attractive gray housing with keyhole mounting tabs offering convenient protection of desktop computer equipment and accessories.
Features
1080 joules AC surge suppression shields equipment from the strongest surges and line noise

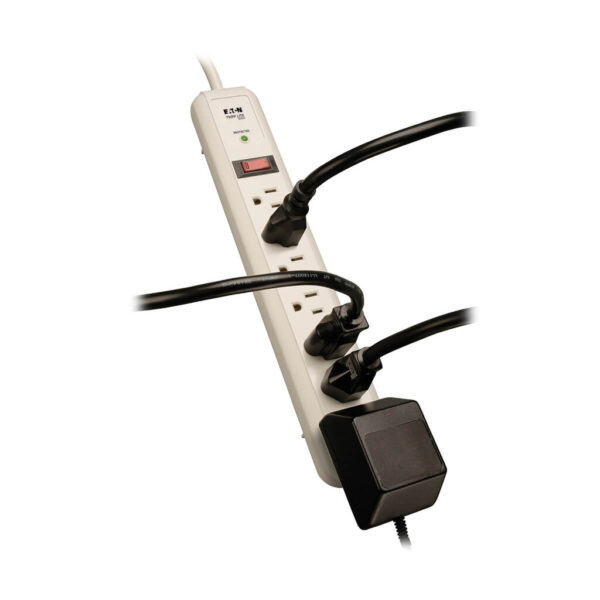

7 total AC outlets (6 right angle and 1 transformer plug outlet)

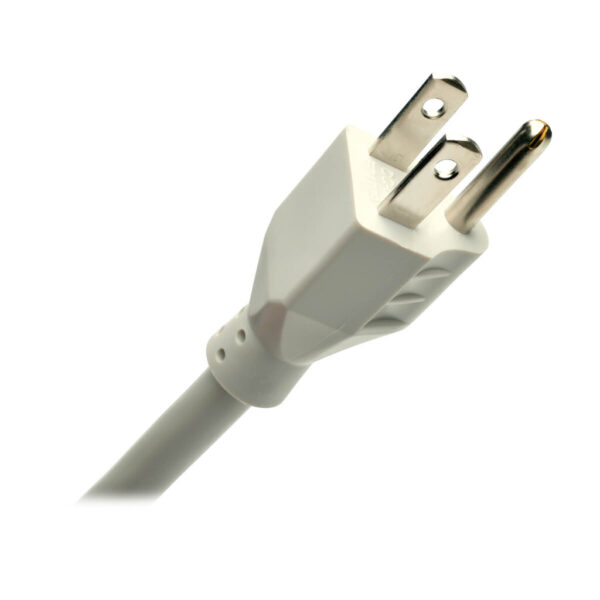

4-ft. (1.22 m) AC line cable
Lighted on/off switch with integrated circuit breaker for overload protection of all outlets
Diagnostic LED confirms surge suppression status

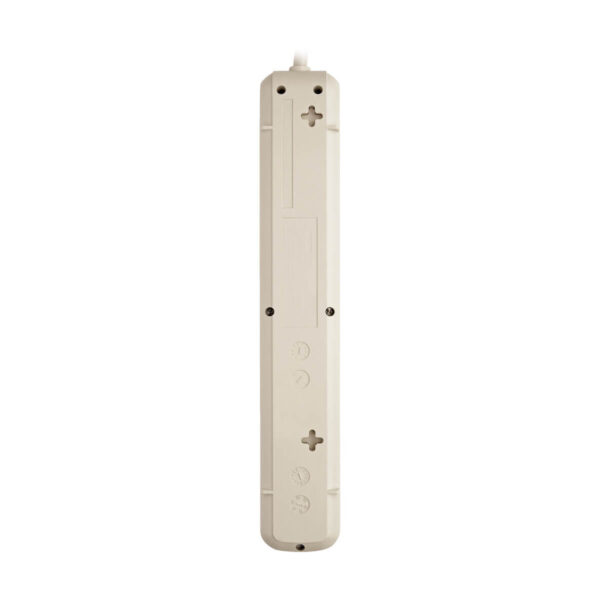

Integrated keyhole slots provide convenient wall/desk mounting
Exceeds IEEE 587 category A & B surge suppression specifications
$25,000 Ultimate Lifetime Insurance (USA and Canada Only)
Automatic shutoff permanently cuts power to outlets if protection circuit is incapacitated, preventing equipment damage and indicating replacement is required
Combination AC circuit breaker and 2 position on/off power switch

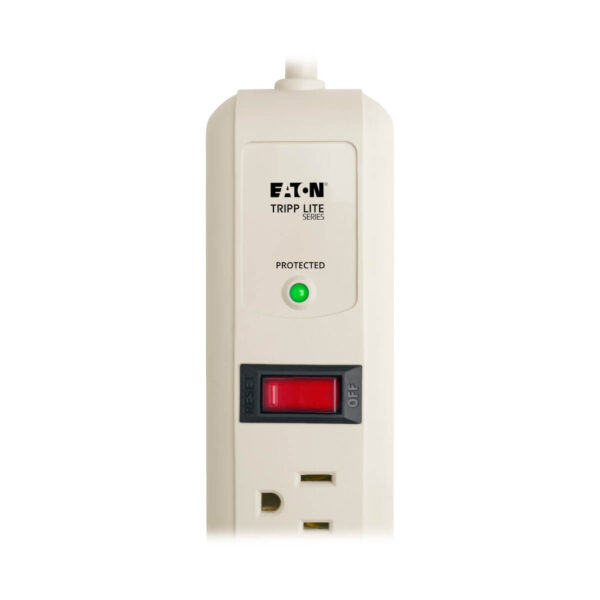

Diagnostic LED Details
Built-in LED confirms suppressor "protection present" (green) status
AC Suppression Joule Rating
1080
AC Suppression Response Time
< 1 ns
Protection Modes
Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression
UL1449 Let Through Rating
400V
Automatic Shut-Off
Yes
Network (Ethernet) Protection
No
Material of Construction
Plastic
Power Cord Color
Gray
Housing Color
Gray
Mounting Holes or Slots
No
Slot or Hole Mount Measurement (Center to Center)
300 mm
Outlets Measurement (Center to Center)
28.5mm
Receptacle Color
Black
Shipping Dimensions (hwd / cm)
5.08 x 10.92 x 35.56
Shipping Weight (kg)
0.50
Unit Dimensions (hwd / cm)
3.38 x 5.18 x 31.50
Unit Weight (kg)
0.47
Input Cord Color
Gray
Operating Temperature Range
32° to 104°F (0° to 40°C)
Storage Temperature Range
14° to 122°F (-10° to 50°C)
Operating Humidity Range
10% to 90% RH
Storage Humidity Range
5% to 95% RH
Product Certifications
CAN/CSA-C22.2 No. 269.3 (Canada); CAN/CSA-C22.2 No. 308 (Canada); cUL Listed; NOM (Mexico); UL 1449; UL 1363; UL Listed
Product Compliance
RoHS
Product Warranty Period (Worldwide)
Lifetime limited warranty
Connected Equipment Insurance (U.S., Canada & Puerto Rico)
$25,000 Ultimate Lifetime Insurance
