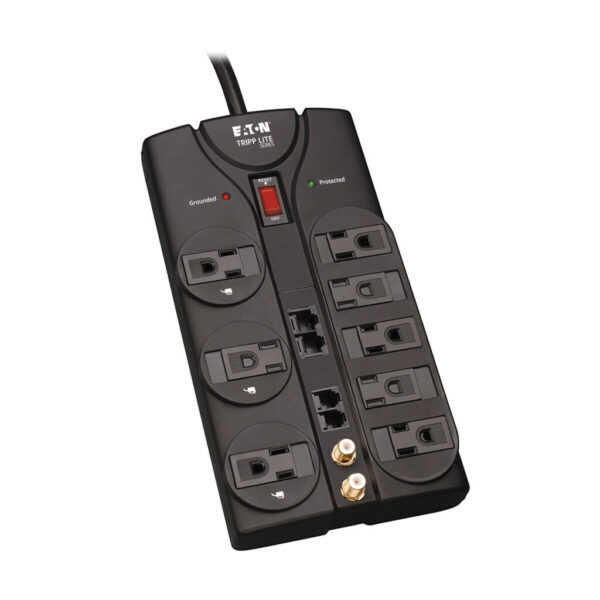

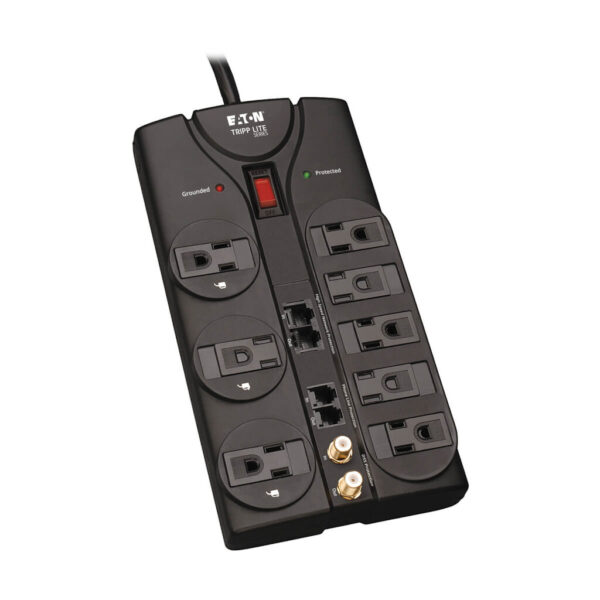

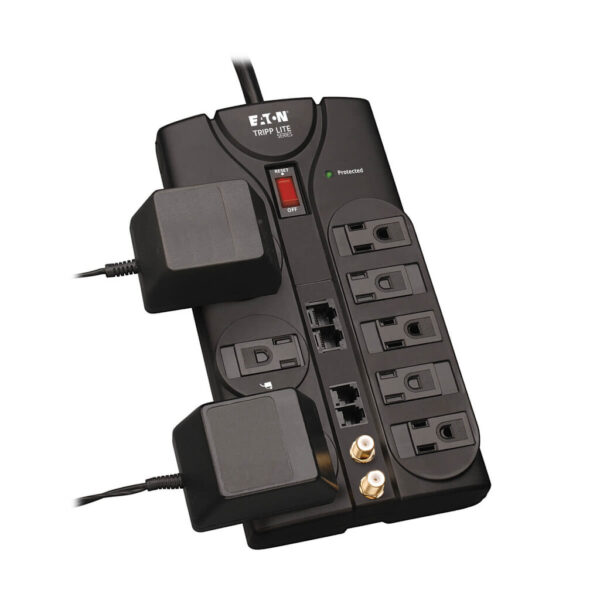

The TLP810NET surge suppressor has eight outlets, a 10-foot (3.1-meter) cord with a space-saving right-angle plug, and diagnostic LEDs. The unit has a surge suppression rating of 3240 joules to handle the strongest surges. Built-in RJ11, RJ45, and Type F coax jacks prevent surges from damaging your modem/fax/100Bt/cable/satellite equipment. Coaxial jacks provide digital broadband quality and can handle 2.2 GHz bandwidth.
Features
8 outlets with integrated child safety covers; black housing

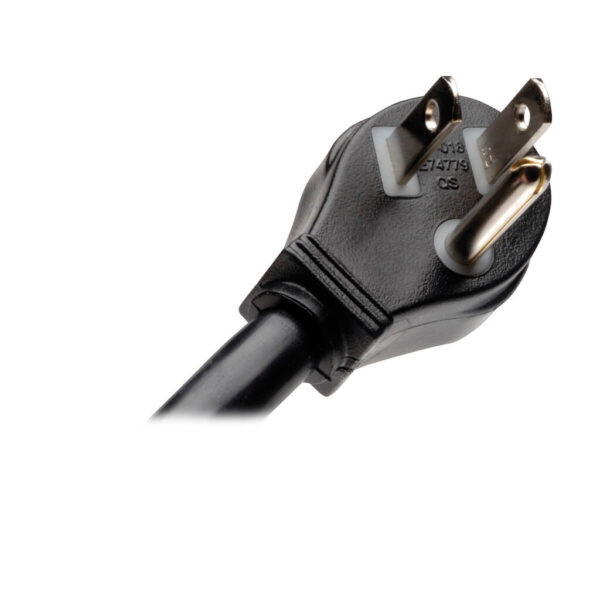

10 ft. cord with space-saving right-angle plug

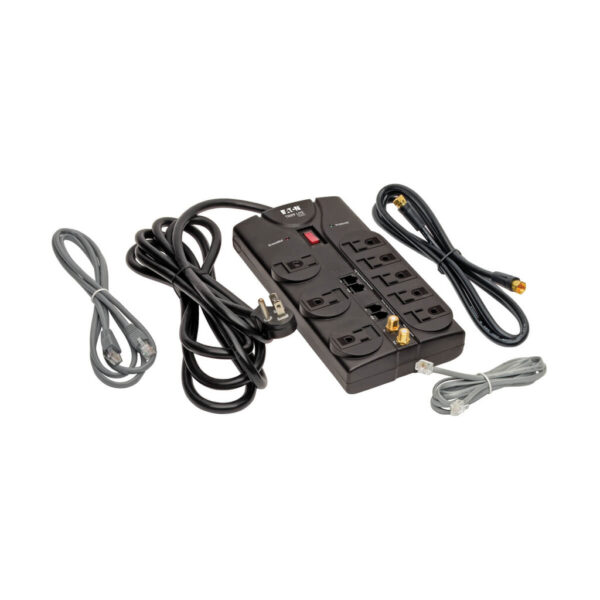

Built-in RJ11 jacks prevent surges from damaging your modem/fax/phone equipment on 2 lines simultaneously; 6 ft. telephone cord included
Built-in RJ45 jacks prevent surges from damaging your 100Bt equipment; 6 ft. network cable included

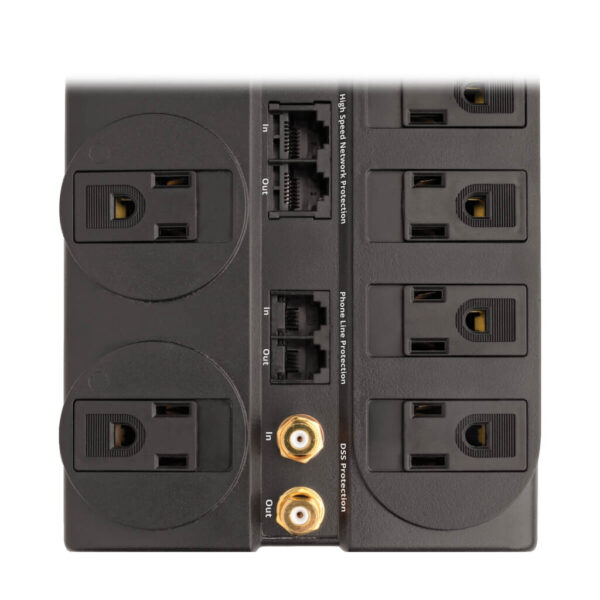

Built-in gold, Type F coax jacks prevent surges from damaging your cable/satellite equipment; digital broadband quality accommodates 2.2 GHz bandwidth; 6 ft. coax cable included
Surge suppression rating: 3240 joules
EMI/RFI noise filtering

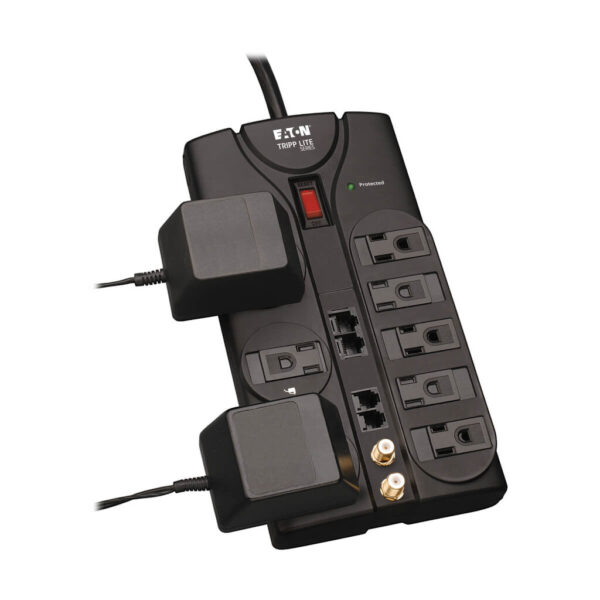

Can accommodate up to 3 transformers without blocking remaining outlets
$250,000 Ultimate Lifetime Insurance (U.S., Canada and Puerto Rico only)
Audible alarm notifies user when the unit is damaged and needs to be replaced

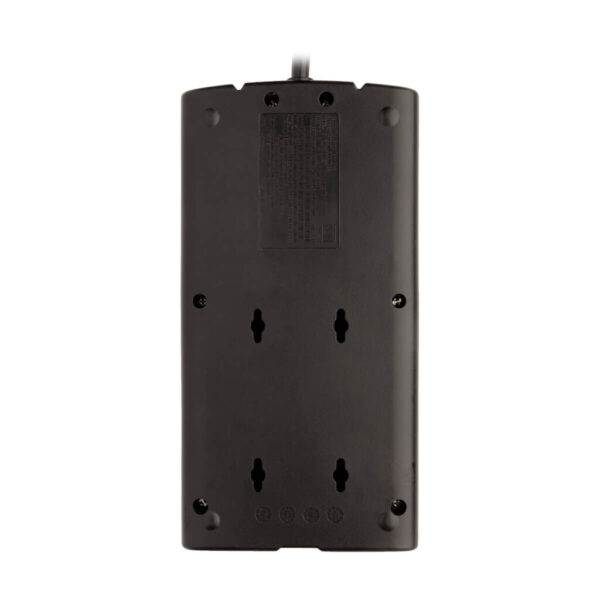

Keyhole supports for wall mounting
Lighted power switch
Automatic shutoff permanently cuts power to outlets if protection circuit is incapacitated, preventing equipment damage and indicating replacement is required

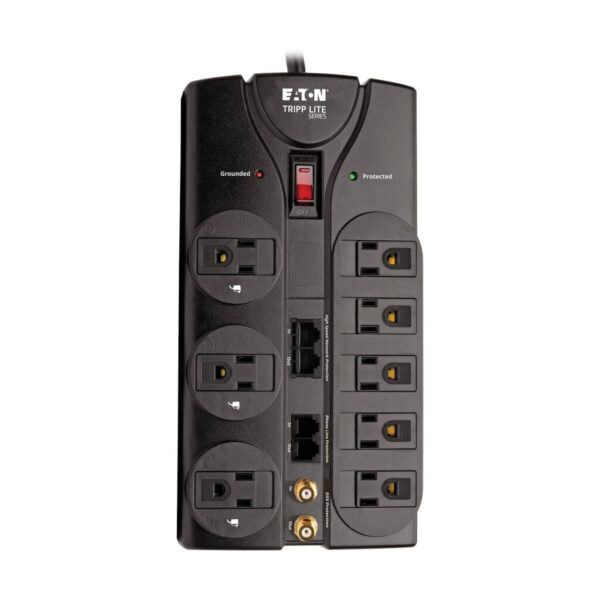

Single row of 5, plus a second row of 3 for transformer accommodation
Outlet Safety Covers Detail
Includes built-in sliding outlet safety covers
Diagnostic LED(s)
Yes
Switches
Combination AC circuit breaker and 2-position red illuminated on/off power switch
Audible Alarm
Audible alarm sounds to indicate damage to suppression components
Diagnostic LED Details

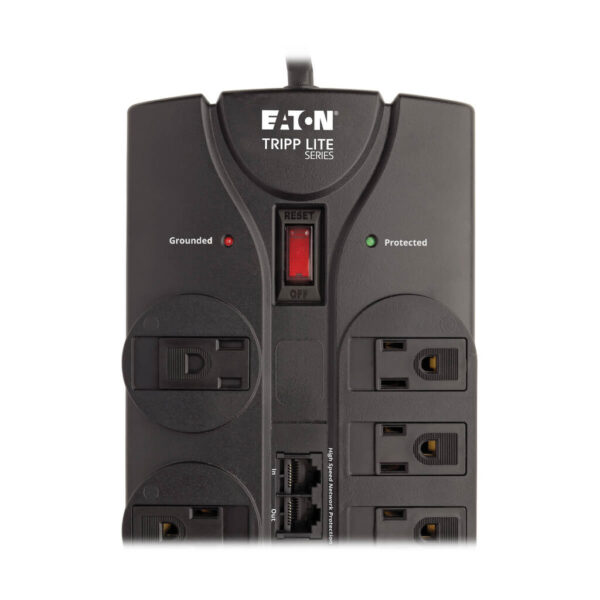

Built-in LEDs confirm suppressor "protection present" (green) and "grounded" (red) status
AC Suppression Joule Rating
3240
AC Suppression Response Time
< 1 ns
Protection Modes
Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression
UL1449 Let Through Rating
330/400/400
EMI / RFI Filtering
Up to 40 dB
Automatic Shut-Off
Yes
Telephone/DSL Protection Details
2 line
Cable (Coax) Protection
Yes
Cable (Coax) Protection Details
1 line (2.2 GHz Bandwidth)
Network (Ethernet) Protection
Yes
Telephone/DSL Protection
Yes
Material of Construction
Plastic
Power Cord Color
Gray
Housing Color
Gray
Mounting Holes or Slots
Yes
Slot or Hole Mount Measurement (Center to Center)
Distance between horizontal tabs = 75 mm; Distance between vertical tabs = 41.6 mm
Outlets Measurement (Center to Center)
Distance between standard outlets = 28.5mm; Distance between transformer outlets = 57mm
Receptacle Color
Gray
Shipping Dimensions (hwd / cm)
28.98 x 22.00 x 5.18
Shipping Weight (kg)
1.36
Unit Dimensions (hwd / cm)
12.34 x 24.26 x 3.84
Unit Weight (kg)
0.92
Input Cord Color
White
Operating Temperature Range
32° to 104°F (0° to 40°C)
Storage Temperature Range
14° to 122°F (-10° to 50°C)
Operating Humidity Range
10% to 90% RH
Storage Humidity Range
5% to 95% RH
Network Compatibility
100 Mbps (Fast Ethernet)
Product Certifications
CAN/CSA-C22.2 No. 269.3 (Canada); CAN/CSA-C22.2 No. 308 (Canada); cUL Listed; NOM (Mexico); UL 1449; UL 1363; UL Listed
Product Compliance
FCC Part 68; RoHS
Product Warranty Period (Worldwide)
Lifetime limited warranty
Connected Equipment Insurance (U.S., Canada & Puerto Rico)
$250,000 Ultimate Lifetime Insurance
Input Plug
5-15P
