Tripp Lite series Protect It! 6-Outlet Surge Protector, 6 ft. (1.8 m) Cord, 2420 Joules
$59.44
Tripp Lite series Protect It! 6-Outlet Surge Protector, 6 ft. (1.8 m) Cord, 2420 Joules
Manufacturer Warehouse: 1,302 available
*Items typically ship within 3-4 weeks if stock at factory
*Items typically ship within 3-4 weeks if stock at factory
Need project pricing? Add items to your cart to request a custom project quote.
Quick Specs
- 6 outlets/6 ft. (1.8 m) cord
- 2420 joule rating
Overview

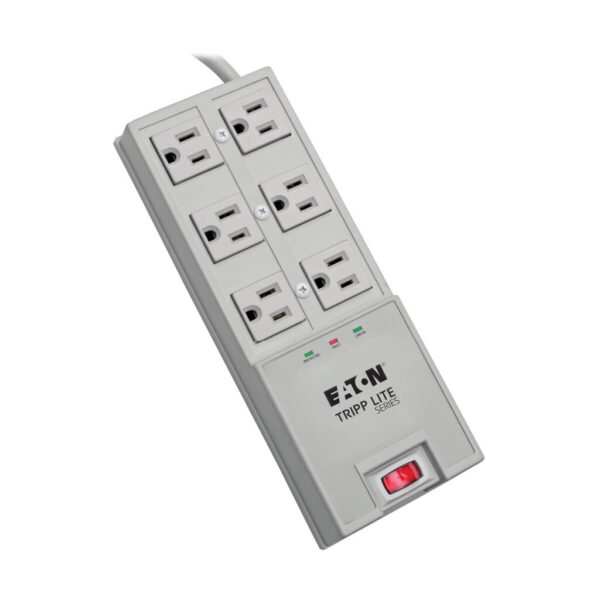

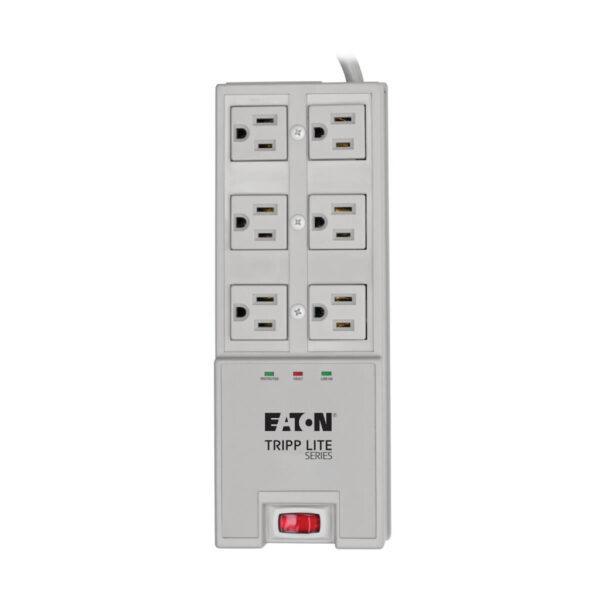

The TR-6 Surge Suppressor has six outlets and a six-foot (1.8-meter) cord with a space-saving right-angle plug. The unit has 2420 joules of surge energy absorption to handle the strongest surges. Diagnostic LEDs alert the user to potential power problems. The TR-6 comes with child safety covers and color-coded cord identifiers.
Features

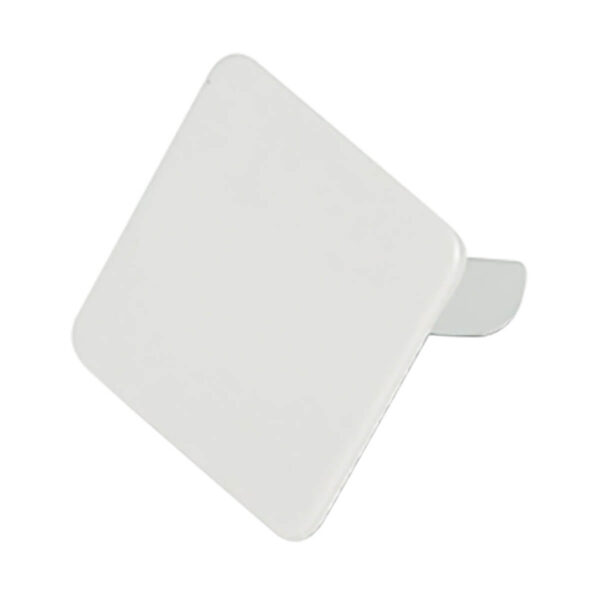

- 6 outlets with child safety covers

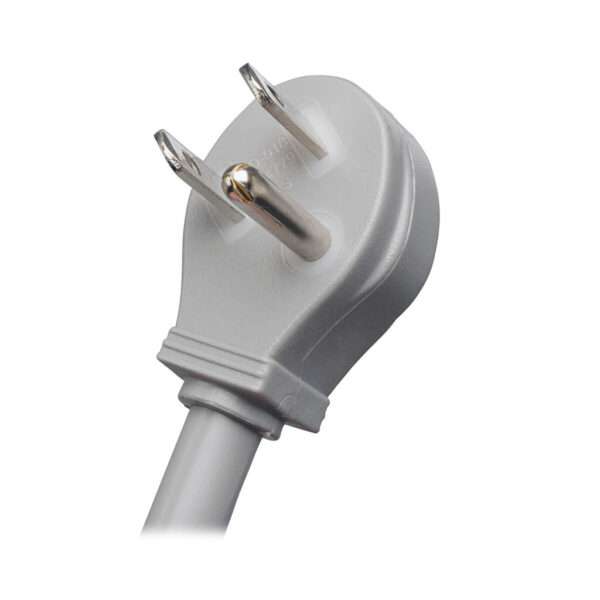

- 6 ft. (1.8 m) cord with space-saving right-angle plug
- Surge energy absorption: 2420 joules; 78,500 amps
- 15-amp circuit breaker
- 3 diagnostic LEDs indicate AC present, line fault & protection present
- EMI/RFI noise filtering

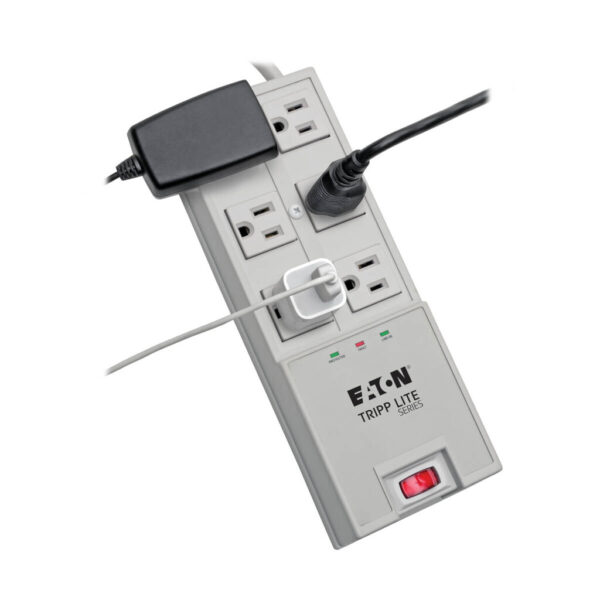

- Logical outlet spacing accommodates transformers without blocking remaining outlets

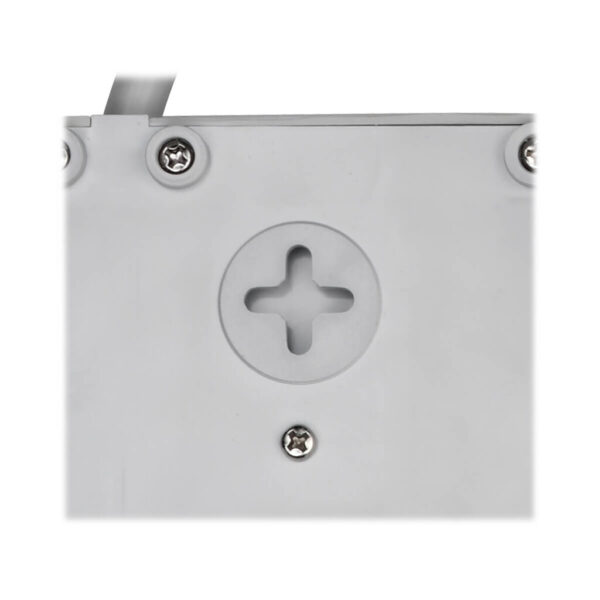

- Keyhole supports for wall mounting

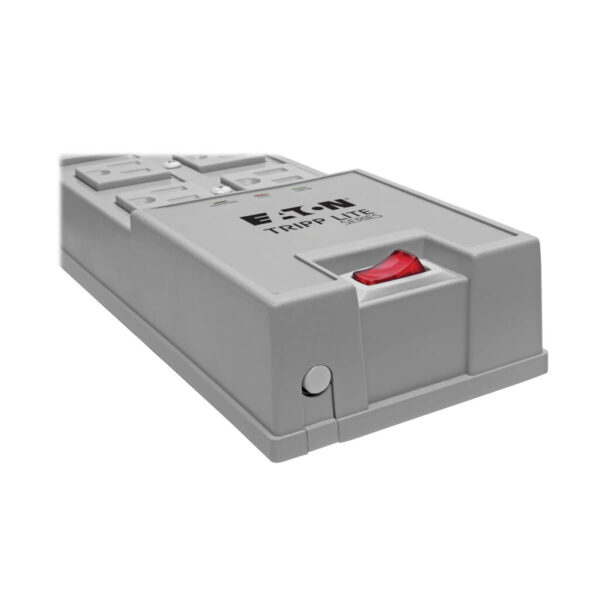

- Recessed and lighted power switch
- Color-coded cord identifiers
- $50,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only) covers connected equipment
- Automatic shutoff permanently cuts power to outlets if protection circuit is incapacitated, preventing equipment damage and indicating replacement is required
Package Includes
- TR-6 Surge Suppressor
- Child safety covers
- Color-coded cord identifiers
- Instruction manual and warranty information
| Weight | 1.8 lbs |
|---|---|
| Dimensions | 6.1 × 2.4 × 12 in |
| UPC Code | 037332010315 |
| Cord Length | 6 |
| Output (W) | 1800 |
| Joule Rating | 2420 |
| Brand | |
| Nominal Input Voltage(s) Supported | 120V AC |
| Recommended Electrical Service | 120V (110-125V) |
| Input Cord Gauge Type | 14 gauge; SJT |
| Input Cord Gauge (AWG) | 14 |
| Voltage Compatibility (VAC) | 120 |
| Maximum Surge Amps | 97000 |
| Input Plug Type | NEMA 5-15P |
| Input Cord Details | SJT |
| Right-Angle Plug | Yes |
| Input Cord Length (m) | 1.83 |
| Frequency Compatibility | 50 / 60 Hz |
| Output (Watts) | 1800 |
| Output Receptacles | (6) 5-15R |
| Circuit Breaker (amps) | 15 |
| Transformer Accommodation | (3) Yes |
| Diagnostic LED(s) | Yes |
| Switches | Two position red illuminated on/off power switch |
| Diagnostic LED Details | PROTECTION PRESENT (green), LINE FAULT (red) and LINE OK (green) |
| AC Suppression Joule Rating | 2420 |
| AC Suppression Response Time | < 1 ns |
| Protection Modes | Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression |
| AC Suppression Surge Current Rating | 78,500 amps |
| UL1449 Let Through Rating | 400V |
| EMI / RFI Filtering | Yes |
| Immunity | Conforms to IEE 587 / ANSI C62.41 |
| Automatic Shut-Off | Yes |
| Network (Ethernet) Protection | No |
| Material of Construction | Plastic |
| Power Cord Color | Light Gray |
| Housing Color | Light Gray |
| Mounting Holes or Slots | Yes |
| Slot or Hole Mount Measurement (Center to Center) | 88.8 mm |
| Outlets Measurement (Center to Center) | Distance between horizontal outlets = 44.20mm; Distance between vertical outlets = 39mm |
| Receptacle Color | Light gray |
| Shipping Dimensions (hwd / cm) | 30.48 x 6.10 x 15.49 |
| Shipping Weight (kg) | 0.82 |
| Unit Dimensions (hwd / cm) | 4.45 x 8.9 x 24.13 |
| Unit Weight (kg) | 0.73 |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Storage Temperature Range | 14° to 122°F (-10° to 50°C) |
| Operating Humidity Range | 10% to 90% RH |
| Storage Humidity Range | 5% to 95% RH |
| Product Certifications | UL 1449 |
| Product Compliance | RoHS |
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
| Connected Equipment Insurance (U.S., Canada & Puerto Rico) | $50,000 Ultimate Lifetime Insurance |
