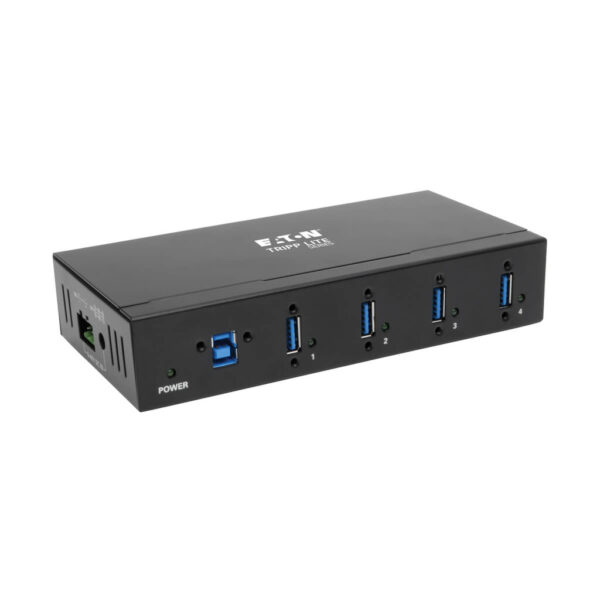

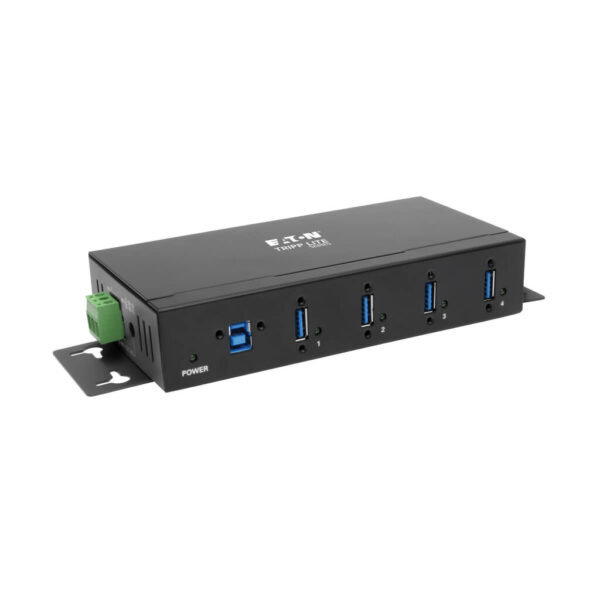

Tripp Lite series 4-Port Industrial-Grade USB 3.x (5Gbps) Hub – 20 kV ESD Immunity, Metal Housing, Mountable

Quick Specs

• Adds barcode scanner, serial device, sensor—up to 4 devices—to your host computer
• Supports USB 3.0 SuperSpeed rates up to 5 Gbps to ensure fast data transfers
• Rugged metal housing designed to withstand harsh warehouse and factory environments
• ESD protection to ±20 kV cuts potential static damage to your connected peripherals
• Plug-and-play operation with no software required for easy, immediate installation

Features

Industrial-Grade USB 3.0 Hub Adds up to 4 USB Devices to Your ComputerThis USB 3.0 hub with a heavy-duty all-metal housing connects as many as four USB devices, such as external hard drives, industrial printers, barcode scanners, serial devices and sensors, to your host PC, server or thin client. The durable metal housing withstands harsh physical conditions in industrial and commercial applications, such as factories, construction sites, supply rooms and warehouses.Supports SuperSpeed USB 3.0 to Ensure Fast Data TransfersThe hub supports USB 3.0 SuperSpeed data transfer rates up to 5 Gbps, which is 10 times faster than USB 2.0. It is especially recommended for high-bandwidth USB 3.0 devices, such as security cameras and high-resolution webcams. Each downstream port provides up to 900 mA for charging mobile devices. The hub is backward compatible with previous USB standards, so you can also continue using older peripherals while getting maximum performance from current devices.Protects Your Devices against Electrostatic Discharge (ESD) and OvercurrentMachines on the shop floor can generate electrostatic discharges, wiping out data and damaging sensitive electronics. This four-port hub includes ESD protection to ±20 kV, reducing potential static damage to your connected peripherals. This feature works in tandem with ±2.5kV-per-port overcurrent protection to safeguard your connected devices against damage and data loss from power surges.Plug-and-Play Hub Offers Flexible Power and Mounting OptionsThe U360-004-IND requires no software or drivers to download and install. It draws power from the connected computer through the included USB cable. You can also plug the included 3-wire terminal block into the hub to draw power from a power terminal, or connect a compatible 9V–40V DC LPS power supply (not included) to a standard AC outlet. The hub mounts easily to a wall or DIN rail using the included hardware.

System Requirements

• Compatible with all USB-enabled operating systems (USB 3.0 port needed to achieve USB 3.0 speeds)

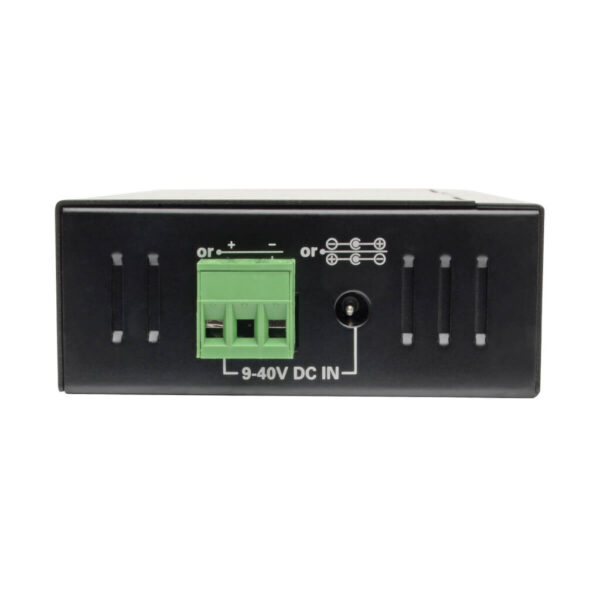

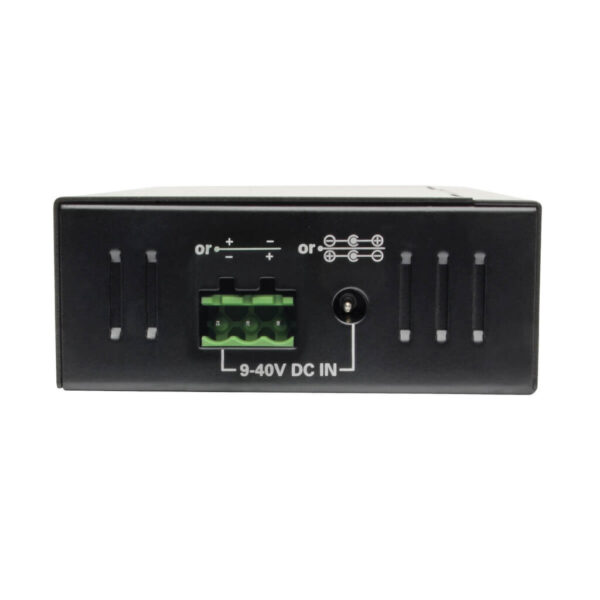

• If using an optional LPS power supply, requires 9–40V DC unit with 5.5 x 2.1 x 9.5 mm output plug with either positive pin/negative sleeve or negative pin/positive sleeve

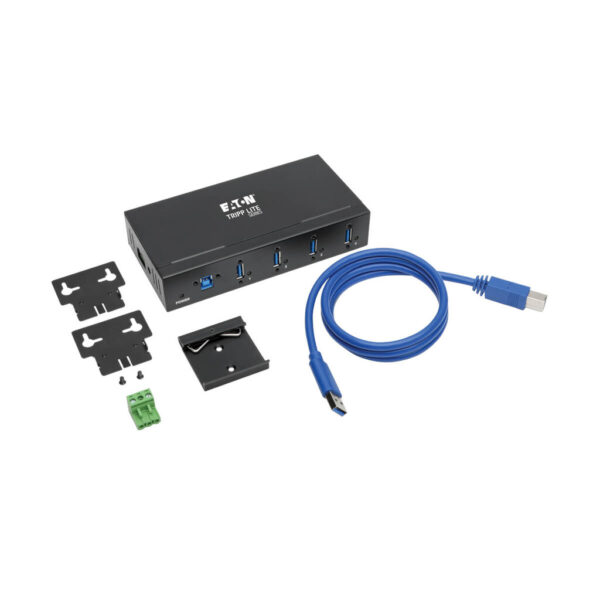

Package Includes

• U360-004-IND 4-Port Industrial-Grade USB 3.0 SuperSpeed Hub
• USB 3.0 cable, 3 ft.
• 3-pin power terminal block

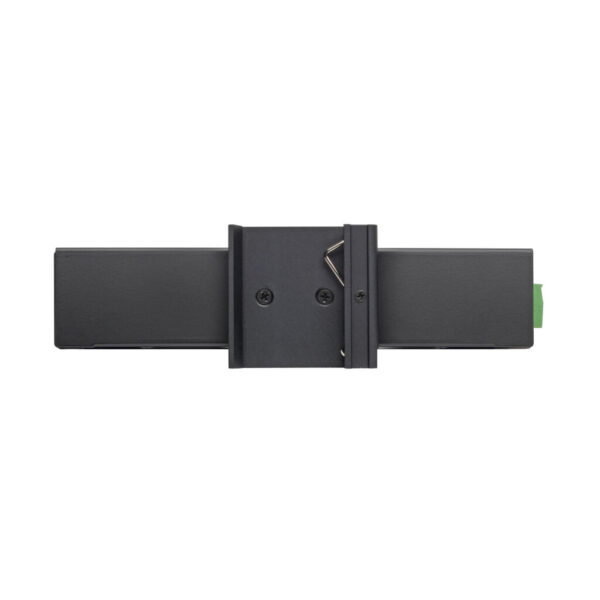

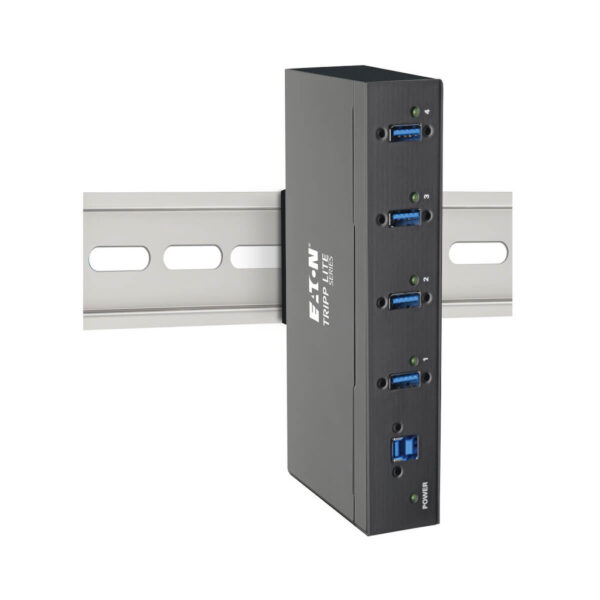

• DIN rail-mounting hardware
• Wall-mounting hardware
• Owner’s manual
