Tripp Lite series 4-Port USB 3.x (5Gbps) Hub

Name: Tripp Lite series 4-Port USB 3.x (5Gbps) Hub
Brand: Tripp Lite
SKU: U360-004-R
Price: 73.58 CAD
Availability: InStock

$73.58

Brand: Tripp Lite

Part Number (MPN): U360-004-R

UPC / GTIN: 037332161154

Datasheet: PDF

Tripp Lite series 4-Port USB 3.x (5Gbps) Hub

Manufacturer Warehouse: 494 available
*Items typically ship within 3-4 weeks if stock at factory

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

USB 3.0 SuperSpeed Compatible
5Gbps Transfer Speed – 10X as fast as USB 2.0
All 4 ports are USB Battery Charging (BC) 1.2-compliant, providing up to 1.5A for charging mobile devices
External power supply included for use with more power hungry devices

Overview

The U360-004-R USB 3.0 SuperSpeed 4-port hub carries your data from a USB 3.0 enabled computer at a blazing 5 Gbps transfer rate. Connect to a variety of USB enabled devices such as USB external hard drives, cameras, printers and more. Backward compatible to previous USB generations. Bus powered for use with devices that require minimal power. For more power-hungry devices, an external power supply is included. Sleek, compact design is perfect for USB port expansion.

Features

USB 3.0 SuperSpeed compatible
5Gbps Transfer Speed – 10X as fast as USB 2.0
Supports USB Battery Charging (BC) specification v1.2
On bus-power, 900mA from the USB 3.0 computer port is shared between all four ports
The included external power supply provides 2A of power, allowing each port to provide up to 1.5A of charging power to mobile devices.
Plug-and-Play – No Drivers Required
1 Upstream and 4 Downstream USB ports

System Requirements

Windows, MAC, or Linux computer with an available USB 3.0 port

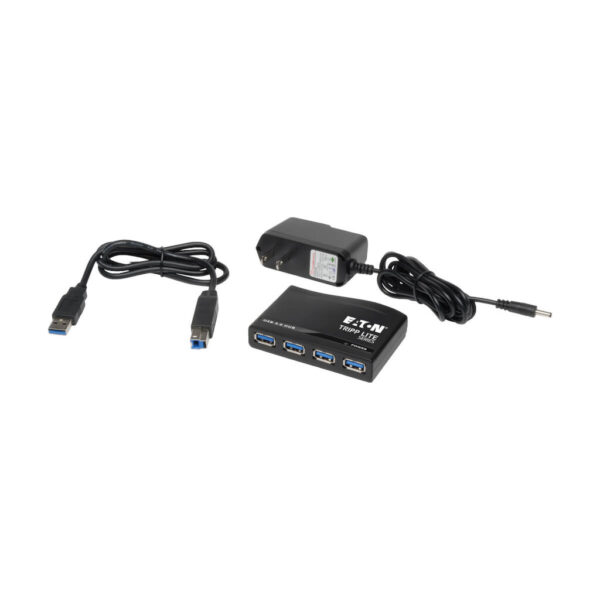

Package Includes

USB 3.0 SuperSpeed 4-Port Hub
External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A)
USB 3.0 Cable, 3-ft.
User manual

Weight	0.617 lbs
Dimensions	4.72 × 5.35 × 2.87 in
UPC Code	037332161154
Cord Length	4.92
Number of Ports	4
Brand	Tripp Lite
Product Type	Hub
Technology	USB 3.x
Host Connector	USB A (MALE)
Data Ports	(4) USB A (FEMALE)
Data Ports Details	(4) USB-A – USB 3.2 Gen 1 (5 Gbps)
AC Power Adapter Plug(s)	NEMA 1-15P North America
AC Power Adapter Input Specs (V / Hz / A)	100-240V / 50/60Hz / 0.35A
AC Power Adapter Output Specs (V / A)	5V / 2A
AC Power Adapter Cord Length (ft.)	5
AC Power Adapter Cord Length (m)	1.5
Voltage Compatibility (VAC)	100; 110; 120; 125; 127; 200; 208; 220; 230; 240
Power Source Type	AC Adapter
AC Adapter	Input: 100-240V, 50/60Hz, 0.35A; Output: 5V, 2A
DC Barrel Plug	OD: 3.5 x 1.35 x 10mm, Positive Pin, Negative Sleeve
Power Consumption (Watts)	0.7
Output Power Capacity (Amps)	1.50
Side A - Connector 1	USB 3.0 A (MALE)
Side B - Connector 1	(4) USB 3.0 A (FEMALE)
Connector Plating	Nickel
LED Indicators	Blue (Power)
Charging Ports	(4) USB-A: 5V 1.5A (7.5W)
Charging Ports Details	Any of the 4 ports
Charging Ports / Amps	(4) 1.5A
Charging Amps per Port	1.5
Color	Black
Material of Construction	ABS
Shipping Dimensions (hwd / cm)	13.59 x 7.29 x 11.99
Shipping Weight (kg)	0.28
Unit Packaging Type	Box
Unit Weight (kg)	0.06
Operating Temperature Range	-4° to 158°F (-20° to 70°C)
Storage Temperature Range	-4° to 185°F (-20° to 85°C)
Relative Humidity	20% to 80% RH, Non-Condensing
BTUs	2.4 BTU/Hr
Power Provided to Connected Device(s)	5V 0.9A (4.5W) Output per USB port
USB Hub Ports	Yes
Number of USB Hub Ports	4
USB Specification	USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps); USB 3.2 Gen 1 (up to 5 Gbps)
Driver Required	No
TAA Compliant Option	N
External Power Supply Certifications	FCC; UL; cUL; RoHS
Product Compliance	RoHS; CE (Europe); REACH; FCC (USA)
Product Warranty Period (Worldwide)	3-year limited warranty
