Connects Steam Deck or ROG Ally to a large-screen display for more immersive gaming
HDMI port supports 4K @ 60 Hz with HDR, 4:4:4 chroma and 36-bit Deep Color
USB-A and USB-C ports reach speeds up to 5 Gbps for storage drives or keyboard/mouse
RJ45 port allows wired access to a Gigabit Ethernet network for online gaming
Power Delivery port supports 20V 5A (100W) power output for charging game device
Features

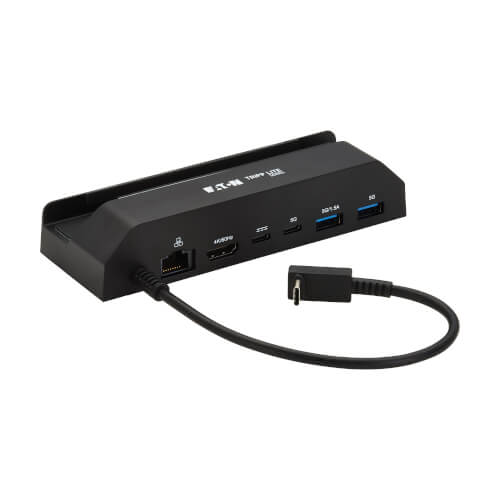

USB-C Docking Station Turns Your Handheld Gaming Console into a Desktop Gaming PC This USB-C dock with PD charging expands the potential of your Steam Deck or ASUS ROG Ally. Just insert your game console into the docking station’s cradle, and connect the dock’s built-in USB-C cable to your handheld’s USB-C port. You can now experience handheld gaming on a large 4K screen, connect a keyboard and mouse, transfer data to external storage, join a wired Gigabit Ethernet network and charge your gaming console to maximum power. Note: The U442-DOCKSD-1 is not compatible with Nintendo Switch because the Switch’s USB-C input is on the bottom of the unit.
Transmits 4K Video with HDR and 4:4:4 Color The HDMI port supports Ultra HD 4K resolutions up to 3840 x 2160 at 60 Hz with 36-bit Deep Color for gameplay on a large monitor. The U442-DOCKSD-1 supports HDR (High Dynamic Range), providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. This dock also supports uncompressed 4:4:4 chroma subsampling for top-level PC gaming.
PD Charging Port Supports up to 100W for Rapid Syncing and Charging The Power Delivery port provides power output up to 20V 5A (100W), which is sufficient for fast-charging your Steam Deck or ROG Ally when not in use. Connect a user-provided USB-C charging cable (sold separately) between the USB-C PD charging port and a compatible USB-C PD charger. Note: The USB-C charger (power supply) that connects to this USB-C docking station must be certified for safety (UL/CSA/IEC/EN 62368-1) for the region in which the device will be used.
USB Ports Connect Keyboards, Thumb Drives and Other Peripherals One USB-C and one USB-A hub port accept USB peripherals, such as external storage drives, mice and keyboards. They support USB 3.2 Gen 1 data transfer rates up to 5 Gbps (10 times faster than USB 2.0) and are backward compatible with USB 2.0 and USB 1.1 devices.
Accesses a Wired Gigabit Ethernet Network The RJ45 port offers access to a Gigabit Ethernet network when Wi-Fi is unavailable or when a wired connection offers faster speeds. Connect using a UTP cable (sold separately), and enjoy true 10/100/1000 Mbps Ethernet speeds for fast lag-free gaming.
Ready to Use Right Out of the Package The plug-and-play USB-C dock is specifically designed for use with the Smart Deck or ROG Ally. It requires no extra software to be downloaded and installed.
System Requirements
Steam Deck, ASUS ROG Ally or other similar handheld gaming system with USB-C input on top
Host must support PD charging and DP Alt Mode from the USB-C port for device charging and video output
Package Includes
U442-DOCKSD-1 USB-C Docking Station for Steam Deck and ROG Ally
PD CHARGING: 100W (15W DEDICATED TO POWERING DOCK) USB CHARGING: 1.5A (1x USB-A PORT); 900mA (1x USB-A PORT) USB-C AND USB-A DATA PORTS SHARE A MAXIMUM OF 12W (5V/2.4A) OF CHARGING OUTPUT
Charging Ports / Amps
0.9A; 1.5A; 2.4A; 5A
Compatible Devices
Video Game Console
Material of Construction
TPE, PC+ABS
Cable Jacket Color
Black
Connector Color
Black
Cable Jacket Material
TPE
Cable Jacket Rating
VW-1
Cable Outer Diameter (OD)
4.3mm
Cable Length (m)
0.18
Housing Color
Black
Cable Length (cm)
17
Total Number of Ports
6
Shipping Dimensions (hwd / cm)
3.51 x 17.50 x 11.99
Shipping Weight (kg)
0.14
Unit Dimensions (hwd / cm)
2.95 x 14.20 x 5.11
Unit Dimensions (hwd / mm)
142 x 51 x 29.5
Unit Packaging Type
Box
Unit Weight (kg)
0.13
Operating Temperature Range
32° to 113°F (0° to 45°C)
Storage Temperature Range
14° to 158°F (-10° to 70°C)
Operating Humidity Range
10% to 85% RH (No Condensation)
Storage Humidity Range
5% to 90% RH (No Condensation)
Power Provided to Connected Device(s)
100W (15W DEDICATED TO POWERING DOCK); 1.5A (1x USB-A PORT); 900mA (1x USB-A PORT); USB-C AND USB-A DATA PORTS SHARE A MAXIMUM OF 12W (5V/2.4A) OF CHARGING OUTPUT
