Tripp Lite series USB-C Triple Display Adapter, 4K 60Hz HDMI, Displayport and VGA with MST

Quick Specs

• Transmits video signals from laptops and tablets supporting USB-C DisplayPort Alt Mode
• Connects DisplayPort/HDMI/VGA with no need to carry separate adapters for each display
• DisplayPort/HDMI ports deliver UHD quality at resolutions up to 3840 x 2160 (4K x 2K)
• VGA port delivers HD quality at video resolutions up to 1920 x 1200 (including 1080p)
• Supports DisplayPort MST mode for playing video on multiple displays at once

Features

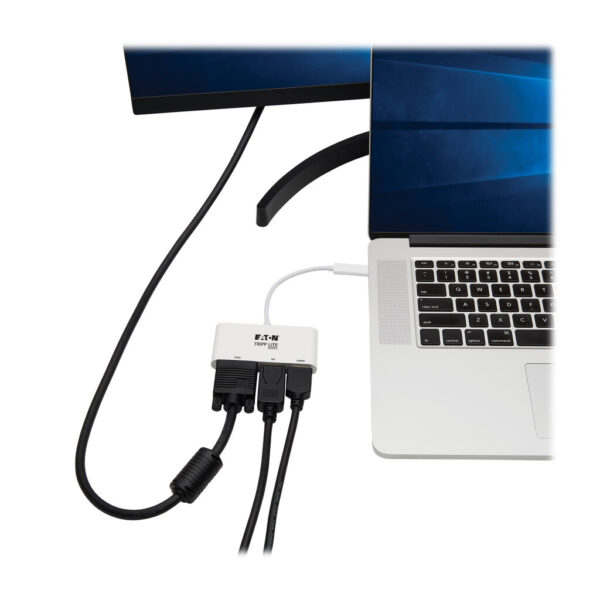

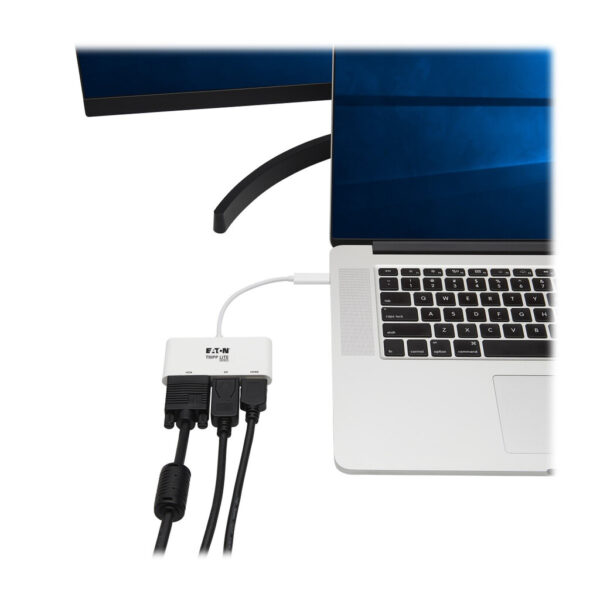

USB-C All-in-One Adapter Connects DisplayPort/HDMI/VGA Displays to Your USB-C Device No more carrying around separate adapters to match various monitors, projectors and televisions. This USB-C all-in-one adapter connects the USB-C or Thunderbolt 3 port on your tablet, laptop, Chromebook, MacBook, smartphone or PC to a DisplayPort (DP), HDMI or VGA display—or all three at the same time. A simple all-in-one solution for displaying video content on a larger screen, the U444-06N-HVDPW is ideal for creating video walls, giving video presentations in conference rooms and classrooms, editing multiple documents on a larger screen, or streaming video for digital signage in crystal-clear 4K x 2K. Supports USB-C DisplayPort Alternate Mode for Transmitting Audio/Video Signals By connecting the built-in USB-C cable to a source device that supports USB DisplayPort Alt Mode, you can output 4K video and digital audio to a compatible monitor, television or projector without installing special software drivers. The U444-06N-HVDPW also supports DisplayPort MST (Multi-Stream Transport) mode, which allows you to show different video on each display, duplicate the same video on all displays, or combine all monitors into one large display. Transmits Crystal-Clear 4K HDMI and DisplayPort Video and Digital Audio To send digital audio and Ultra High Definition video to a 4K-ready HDMI and/or DP television, projector and/or monitor, connect the HDMI and DP ports to the displays with user-supplied cabling (such as P569-Series HDMI and P580-Series DP cables). The adapter supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz (HDMI) and 60 Hz (DP). You Can Keep Using Your Current VGA Monitor and Save Money The all-in-one unit also features an HD15 port, in addition to HDMI and DP. This allows you to continue using an existing VGA display, instead of investing money in something new. The HD15 port supports high-definition resolutions up to 1920 x 1200, including 1080p, at 60 Hz. Built-In USB-C Cable Connects in Either Direction Connect the reversible USB-C plug to your source device’s USB-C or Thunderbolt 3 port. The fumble-free USB-C plug connects in either direction to ensure fast, easy connection every time. Ready to Use Right Out of the Package The plug-and-play USB-C all-in-one adapter is specifically designed for use with the MacBook, Google Chromebook Pixel and other laptops, tablets and devices equipped with a USB-C or Thunderbolt 3 port. It requires no software, drivers or external power. Its low-profile design makes it easy to carry in a briefcase or laptop bag for connecting on the go.

System Requirements

• Source device with USB-C or Thunderbolt 3 output that supports USB DisplayPort Alternate Mode
• Display device(s) with HDMI, DisplayPort and/or VGA input

Package Includes

• U444-06N-HVDPW USB-C Multiport Adapter – HDMI/DisplayPort/VGA, White
• Owner’s manual
