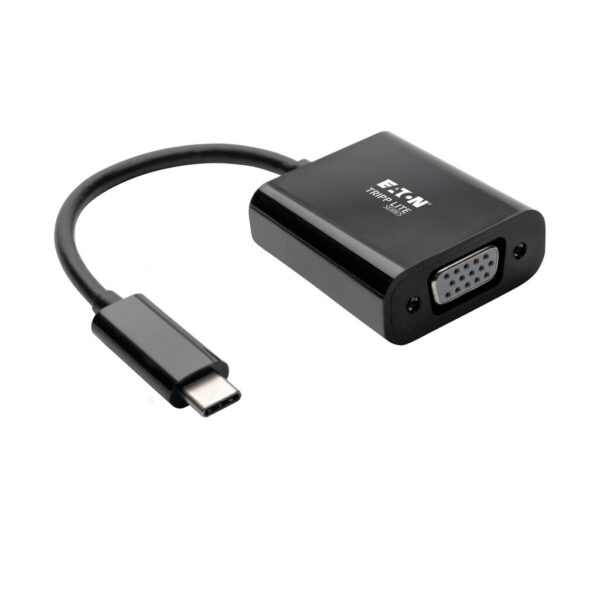

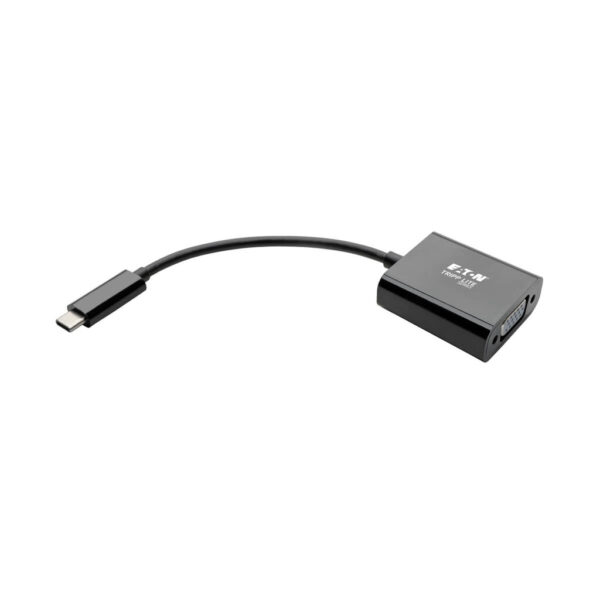

Tripp Lite series USB-C to VGA Adapter with Alternate Mode – DP 1.2, Black

Quick Specs

• Transmits video signals from sources supporting USB DisplayPort Alt Mode
• Delivers HD picture quality at resolutions up to 1920 x 1200 (1080p) @ 60 Hz
• Supports USB 3.2 Gen 1 speeds up to 5 Gbps to ensure fast data transfers

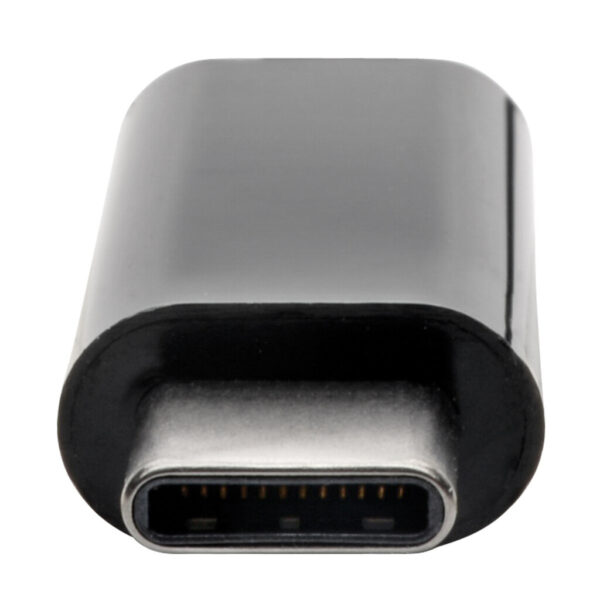

• Reversible USB-C plug connects in either direction for immediate no-fuss use
• Easy installation with plug-and-play operation-no software required

Features

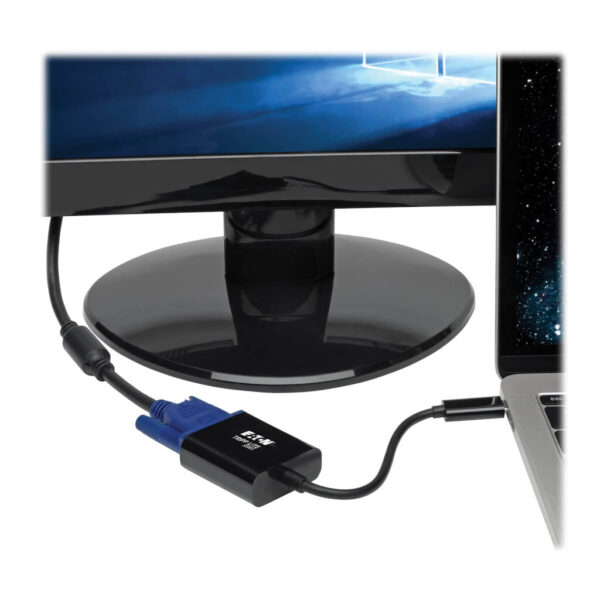

Connects a VGA Display to Your USB-C or Thunderbolt 3 Device This USB 3.2 Gen 1 to VGA adapter helps you transmit video from your tablet, laptop, Chromebook, MacBook, smartphone or PC to a VGA-enabled television, monitor or projector. It’s ideal for giving video presentations in conference rooms and classrooms, editing multiple documents on a larger screen or streaming video for digital signage in crystal-clear 1080p. Supports USB DisplayPort Alternate Mode for Transmitting Video Signals With a source device that also supports USB DisplayPort Alt Mode, you can extend video from your primary display to another, duplicate the same video on both displays, or change the second display to your primary. Transmits Crystal-Clear 1080p Video to a VGA Display To send high-definition video to a VGA television, projector or monitor, connect the VGA port to the display using a VGA cable (sold separately). The VGA port supports HD video resolutions up to 1920 x 1080 (1080p) at 60 Hz, 36-bit Deep Color (12 bits per channel) and VGA digital transfer rates up to 6.75 Gbps (2.25 Gbps per channel). The U444-06N-VB-AM is also compatible with non-1080p VGA displays. Built-In USB-C Cable Connects in Either Direction Connect the reversible USB-C plug to your source device’s USB-C or Thunderbolt 3 port. The fumble-free USB-C plug connects in either direction to ensure fast, easy connection every time. Ready to Use Right Out of the Package The plug-and-play Thunderbolt 3 and USB to VGA cord requires no software, drivers or external power. It’s about half the size of a credit card, making it easy to carry in a pocket, briefcase or laptop bag for connecting on the go. 3-Year Warranty and Environmentally Responsible Design The U444-06N-VB-AM comes with a 3-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting commitment to environmental responsibility.

System Requirements

• Source device with USB-C or Thunderbolt 3 port that supports USB DisplayPort Alternate Mode
• Display device with VGA input

Package Includes

• U444-06N-VB-AM USB-C to VGA Adapter, Thunderbolt 3 – M/F, USB 3.2, 1080p, Black
• Quick Start Guide
