Converts audio/video signals from sources supporting USB-C DisplayPort Alt Mode
Plays 4K video on 2 displays simultaneously for multitasking and increasing productivity
Plays 8K video on one connected display for brilliant digital signage and presentations
Carries High Dynamic Range (HDR) signals for rich contrast and expanded color accuracy
Plug-and-play operation with no software required for easy, immediate installation
Features

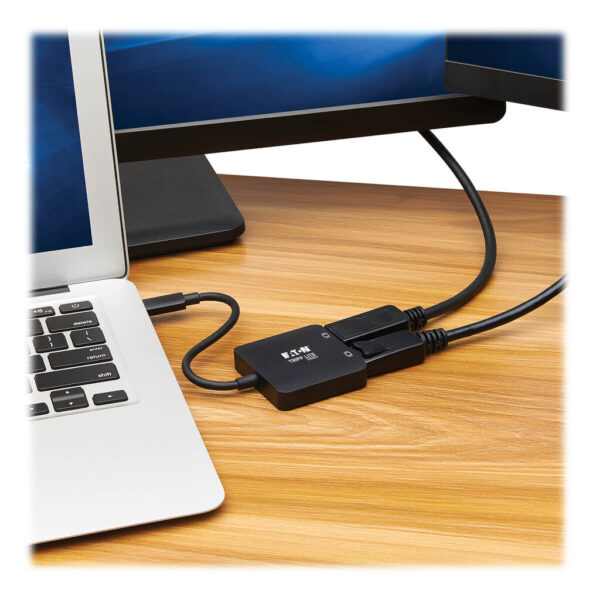

USB-C to DisplayPort Adapter Connects 8K or 4K DisplayPort Monitors to Your USB-C Device This USB adapter connects one 8K or two 4K DisplayPort monitors, projectors and/or televisions to the USB-C or Thunderbolt 3 port on your MacBook Pro, Chromebook or Windows laptop. It’s an ideal connector for creating video walls, giving video presentations in conference rooms and classrooms, editing multiple documents or high-definition video on a larger screen, or streaming video for digital signage in crystal-clear 8K or 4K.
Supports USB-C DisplayPort Alternate Mode for Converting Audio/Video Signals By connecting the built-in USB-C cable to a source device that supports USB DisplayPort Alt Mode, you can output 8K/4K video and digital audio to DisplayPort monitors, televisions or projectors without installing special software drivers. Note: To achieve 8K/4K resolution, the source device should support DP 1.4 Alt Mode. When a monitor is connected to a DP 1.2 Alt Mode source, the corresponding resolution will be decreased due to bandwidth limitation.
DisplayPort SST and MST Modes Allow Connection of Multiple Displays By connecting the USB-C adapter to a source that supports DisplayPort Single-Stream Transport (SST) or Multi-Stream Transport (MST) mode, you may connect up to two displays simultaneously. This allows you to display the same image on both monitors, extend your host desktop across both with different windows open on each, or combine both into one large display as a video wall, depending on your operating system.
Enjoy the Clarity of 8K/4K Video with HDR, 4:4:4 Color and 7.1-Channel Audio This USB to DisplayPort adapter supports connection of one 8K/30 Hz monitor or two 4K/60 Hz monitors with 7.1-channel surround sound. High Dynamic Range (HDR) provides a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This adapter also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.
Ready to Use Right from the Package, So You Can Plug and Play Immediately The adapter requires no software or external power. Just connect the USB-C cable to the USB-C or Thunderbolt 3 port on a source device that supports USB DisplayPort Alternate Mode, and connect the DisplayPort outputs to your displays with user-provided cables (such as P580-Series cables).
System Requirements
Source device with USB-C or Thunderbolt 3 port that supports USB DisplayPort Alternate Mode (DP 1.4 Alt Mode required for some features)
Display device(s) with DisplayPort input
Multi-Stream Transport (MST) required to achieve extended dual displays; typically, Windows systems support MST
Single-Stream Transport (SST) required to achieve mirrored dual displays; typically, Mac systems support SST
Package Includes
U444-2DP-MST4K6 USB-C Adapter, Dual Display, Black
When used with a DP 1.4 host device the product supports single output up to 8K (7680 x 4320 @ 30 Hz), or dual output 4K (3840 x 2160) @ 60 Hz maximum When used wiht a DP 1.2a host device the product supports single and dual output 4K (3840 x 2160) @ 30 Hz maximum
x2 DisplayPort ports support dual output 4K/60 Hz video, or single 8K/30 Hz When used on a Windows PC the device supports MST Mode to transmit different videos/pictures When used on a Mac the device supports SST mode to transmit mirror mode only
Mirror Mode
Yes
Mirror Mode Details
x2 DisplayPort ports support dual output 4K/60 Hz video, or single 8K/30 Hz When used on a Windows PC the device supports MST Mode to transmit different videos/pictures When used on a Mac the device supports SST mode to transmit mirror mode only
Max Supported Color Depth
48-bit Deep Color
HDR Support
Yes
3D Video Supported
Yes
Chroma Sub Sampling
4:2:0; 4:2:2; 4:4:4
Audio Ports
(2) DISPLAYPORT (FEMALE)
Audio Ports Details
Supports pass-through audio function via dual DisplayPort outputs
Audio Input
USB-C
Audio Output
DisplayPort
Audio Specification
7.1 Channel Surround Sound
Built-In Cable Length (m)
0.12
Built-In Cable Length (cm)
12
Bus Powered
Yes
Battery Charging (5V/1.5A Port)
No
USB Power Delivery (PD) Charging Support
No
Side A - Connector 1
USB C (MALE)
Side B - Connector 1
(2) DISPLAYPORT (FEMALE)
Connector Plating
Nickel
LED Indicators
N/A
Color
Black
Material of Construction
PC, ABS, TPE
Cable Jacket Color
Black
Cable Jacket Material
TPE
Cable Outer Diameter (OD)
4.3mm
Number of Displays
2
Unit Dimensions (hwd / cm)
1.15 x 5.51 x 5
Unit Packaging Type
Box
Unit Weight (kg)
0.04
Operating Temperature Range
32° to 115°F (0° to 46°C)
Storage Temperature Range
14° to 158°F (-10° to 70°C)
Operating Humidity Range
10% ~ 85% RH, Non Condensing
Storage Humidity Range
5% ~ 90% RH, Non Condensing
USB Specification
USB 3.1 Gen 2 (up to 10 Gbps)
MST Support
Yes
Multi-Resolution Support
No
Displayport Specification
1.4
HDCP Specification
2.2
Driver Required
No
Product Certifications
EN 55032; EN 55035; IEC/EN 63000
Product Compliance
CE (Europe); FCC (USA); REACH; RoHS; UKCA; WEEE
Product Warranty Period (Worldwide)
3-year limited warranty
Reviews
There are no reviews yet.
Be the first to review “Tripp Lite series USB-C Adapter, Dual Display – 4K 60 Hz DisplayPort, 8K, HDR, 4:4:4, HDCP 2.2, DP 1.4 Alt Mode, Black”Cancel Reply
IN STOCK
IN STOCK
IN STOCKManufacturer: Tripp LitePart Number: B093-008-2E4U-M $1,808.68
