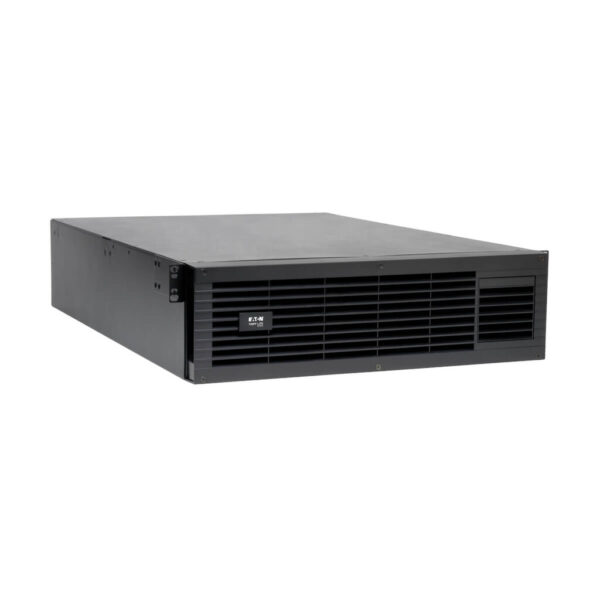

Tripp Lite series External 36V 3U Rack/Tower Battery Pack for Select UPS Systems (BP36V42-3U), TAA

Tripp Lite series External 36V 3U Rack/Tower Battery Pack for Select UPS Systems (BP36V42-3U), TAA

Name: Tripp Lite series External 36V 3U Rack/Tower Battery Pack for Select UPS Systems (BP36V42-3U), TAA
Brand: Tripp Lite
SKU: BP36V42-3U
Price: 2520.41 CAD
Availability: InStock

$2,520.41

Brand: Tripp Lite

Part Number (MPN): BP36V42-3U

UPC / GTIN: 037332123312

Datasheet: PDF

Tripp Lite series External 36V 3U Rack/Tower Battery Pack for Select UPS Systems (BP36V42-3U), TAA

Manufacturer Warehouse: 21 available
*Items typically ship within 3-4 weeks if stock at factory

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Extends the runtime of expandable 36V DC UPS Systems
Included daisychain connector supports the addition of multiple compatible external battery packs
Supports 3U rack-mount installation; 4-post installation accessories included
Options for 2-post rack-mount and tower installation available

Overview

BP36V42-3U rack/tower external battery pack offers extended battery runtime when used in conjunction with expandable 36V rack-mount and tower UPS systems. Includes heavy-gauge cabling with high-current DC connector for safe, simple installation. Included daisy-chain connector enables the connection of additional compatible 36V external battery packs to the host UPS. Included mounting accessories support 3U rack-mount installation in 4-post racks. Options for 2-post center-mounting and upright tower installation available.

Compatible with SMART1000RMXL2U, SMART1200XLHG, SMART1500RMXL2UA, SMART1500RMXLN, SMART1500XL, SMX1200XLHG, SMX1500XLRT2U and other UPS systems that specify the use of this battery pack.

Features

Offers extended-run UPS operation when used in conjunction with compatible 36V DC UPS systems
Includes heavy-gauge cabling with high-current DC connectors for simple installation
Daisychain connector enables the connection of additional compatible 36V external battery packs to the host UPS
Included mounting brackets support rack-mount installation in 4-post racks using only 3 rack spaces (3U)
2POSTRMKITHD option supports balanced two-point center-mounting in 2-post equipment racks
2-9USTAND option enables upright tower placement

Package Includes

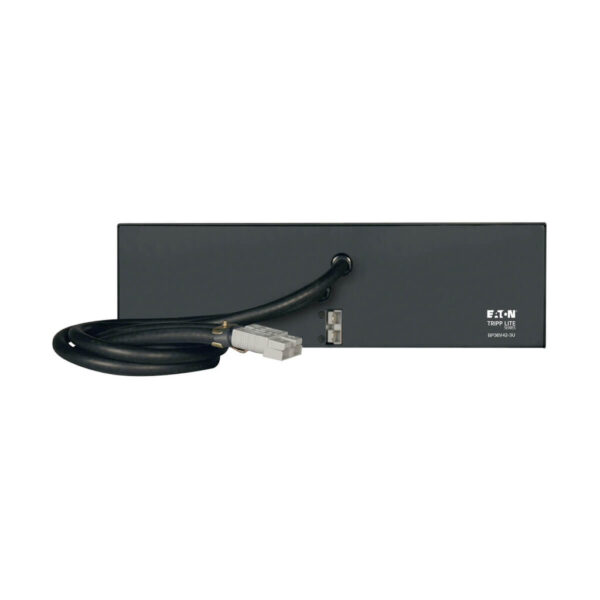

BP36V42-3U external battery pack with attached DC cabling
4 post compatible mounting hardware
Owner’s manual

Weight	185 lbs
Dimensions	33 × 23 × 12 in
UPC Code	037332123312
Rack Depth	28
Brand	Tripp Lite
Input Phase	Single-Phase
Expandable Runtime	Yes
DC System Voltage (VDC)	36
UPS Connection	Detachable cable with UPS specific DC connector (36 in length, 6 gauge)
Typical Battery Lifespan	4-6 years typical (North America)
Material of Construction	Steel
Rack Height	3U
External Battery Pack Form Factor	Rack/Tower
Installation Form Factors Supported with Optional Accessories	2 post rackmount ( 2POSTRMKITWM ); Wallmount ( 2POSTRMKITWM )
Minimum Required Rack Depth (cm)	71.12
Optional Mounting Accessory Notes	2POSTRMKITWM enables wall-mount and 2-post rackmount installation
Shipping Dimensions (hwd / cm)	30.48 x 58.42 x 83.82
Shipping Weight (kg)	83.91
Unit Dimensions (hwd / cm)	13.3 x 44.45 x 63.5
Unit Weight (kg)	78.97
Mounting Details	Included 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm)
Product Compliance	RoHS; CE (Europe); Trade Agreements Act (TAA)
Product Warranty Period (U.S. & Canada)	2-year limited warranty
