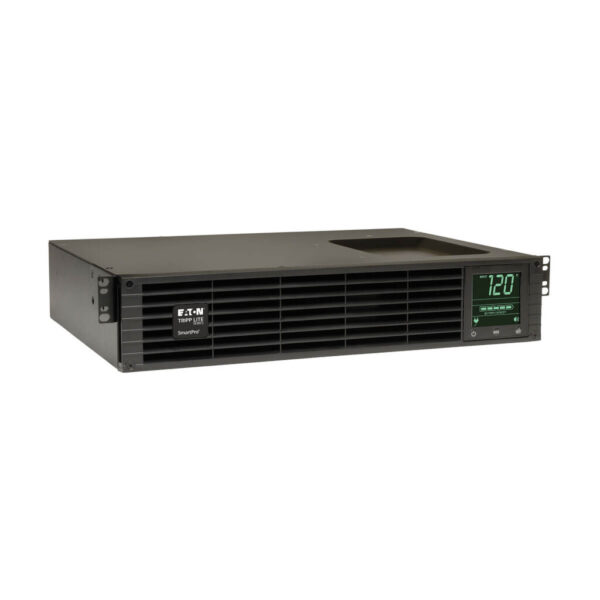

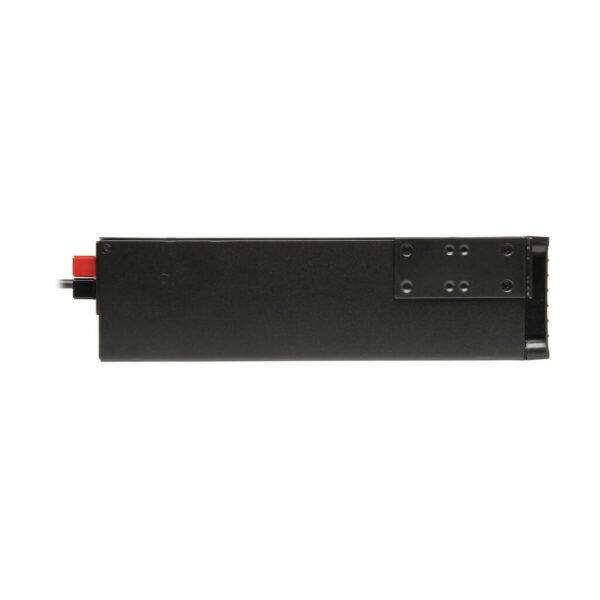

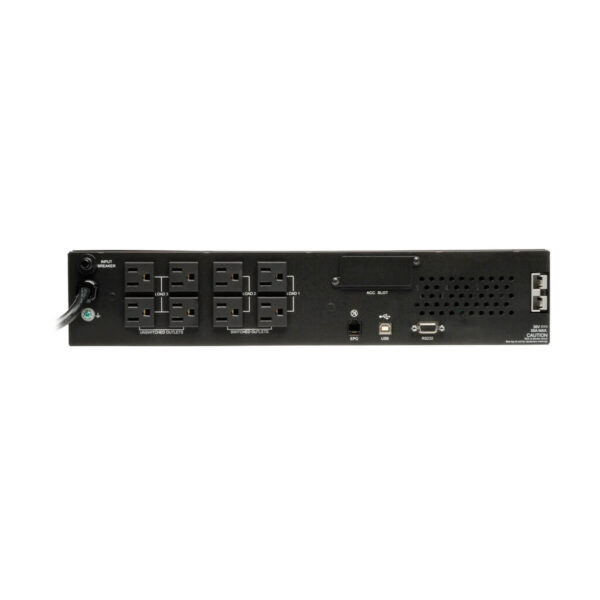

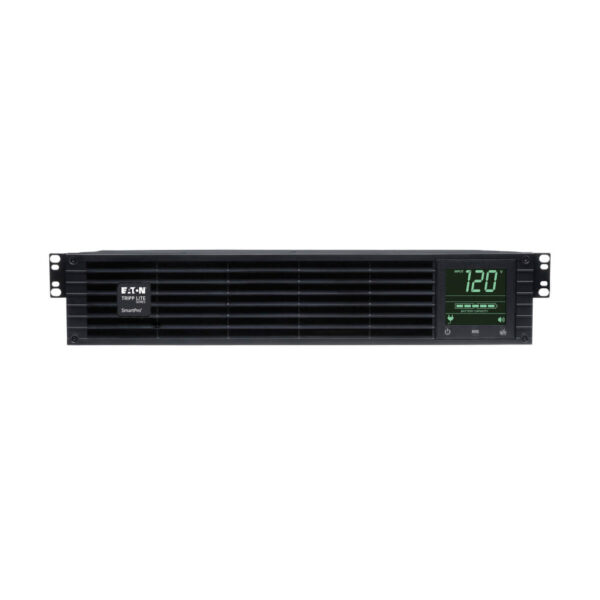

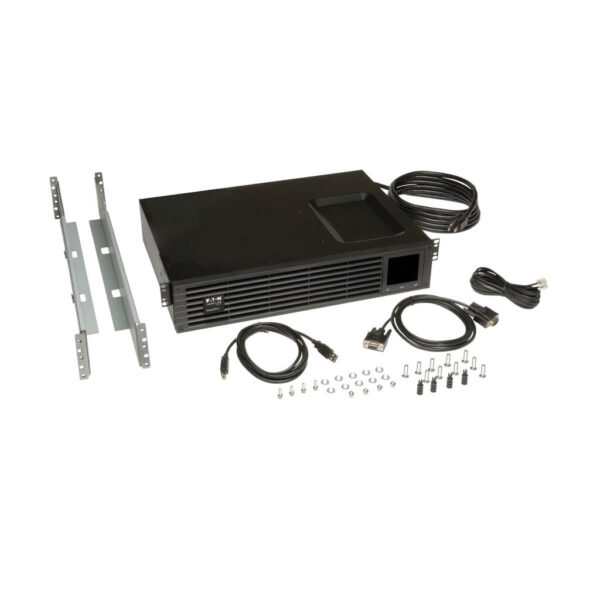

TAA SmartPro 120V 1.5kVA 1.35kW Line-Interactive Sine Wave UPS, 2U, Extended Run, Network Card Options, LCD, USB, DB9
$1,489.72
TAA SmartPro 120V 1.5kVA 1.35kW Line-Interactive Sine Wave UPS, 2U, Extended Run, Network Card Options, LCD, USB, DB9
Tripp Lite’s SM1500RMXL2UTAA is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. This intelligent, line interactive rack/tower uninterruptible power supply prevents data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges. Requires only two rack spaces (2U) in a standard rack enclosure. Large internal batteries offer 21 minutes half load runtime and 7.5 minutes at full load. Runtime is expandable with optional BP36V15-2U external battery pack (limit 1) or BP36V42-3U (multi-pack compatible). Maintains regulated 120V nominal output without using battery power during brownouts and overvoltages from 75 to 147V. 1500VA / 1000 watt power handling capability supports a variety of networking, telecom and other sensitive electronic applications. Includes a total of 8 outlets with 3 load banks that are individually controllable via software interface to reboot select equipment on demand or shed less significant loads to extend battery runtime for more critical equipment. Supports remote monitoring of UPS and site power conditions via built-in USB and DB9 monitoring ports. Includes PowerAlert UPS monitoring and unattended shutdown software with complete cabling. Built-in accessory slot supports SNMP with optional SNMPWEBCARD adapter. Emergency Power Off (EPO) interface offers option for instantaneous power-off of UPS and connected equipment in the case of fire or emergency. Multi-function audible alarms and set of 5 front panel LEDs offer at-a-glance notification of UPS and line power status. Network-grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges and line noise. Attractive all-black color scheme. Two year warranty with $250,000 connected equipment insurance (USA & Canada only).
| Weight | 57.4 lbs |
|---|---|
| Dimensions | 19.3 × 23 × 8.8 in |
| Form Factor | |
| Color | Black |
| Cord Length | 3 |
| Brand | |
| Input operation voltage (min) | 75 V |
| Input operation voltage (max) | 147 V |
| Input frequency | 60 Hz |
| Output operation voltage (min) | 120 V |
| Output operation voltage (max) | 120 V |
| Audible alarm(s) | Yes |
| Battery technology | Sealed Lead Acid (VRLA) |
| Display type | LCD |
| LED indicators | Yes |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -15 – 50 °C |
| Certification | UL1778<br />TAA |
| Width | 439,4 mm |
| Depth | 341,6 mm |
| Height | 87,6 mm |
| Waveform | Sine |
| Power protection features | Over voltage, Under voltage |
| USB port | Yes |
| Typical backup time at full load | 7,5 min |
| Typical backup time at half load | 21 min |
| Cable length | 3 m |
| Weight | 21,1 kg |
| Nominal output voltage | 120 V |
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | NEMA 5–15R |
Compatible accessories
-
IN STOCKTripp Lite series External 36V Battery Pack for Select UPS Systems, 2U Rack/Tower
Manufacturer: Tripp LitePart Number: BP36V27-2US $1,268.53 -

Tripp Lite series External 36V 2U Rack/Tower Battery Pack for Select UPS Systems (BP36V15-2U)
Manufacturer: Tripp LitePart Number: BP36V15-2U $1,007.48 -
IN STOCKTripp Lite series External 36V 3U Rack/Tower Battery Pack for Select UPS Systems (BP36V42-3U), TAA
Manufacturer: Tripp LitePart Number: BP36V42-3U $2,520.41
