Tripp Lite series SmartPro 120V 1kVA 750W Medical-Grade Line-Interactive Tower UPS, 4 Outlets, Full Isolation, Expandable Runtime, TAA

Quick Specs

• 940-joule surge protection rating protects connected equipment
• 4 NEMA 5-15R-HG outlets and 120V NEMA 5-15P-HG plug
• Approved to EN60601-1-2:2015 and IEC60601-1-2:2014
• Alarm mute/quiet control ideal for use near patients
• 28 min. runtime at half load; 10 min. at full load

Overview

The SMART1200XLHG medical-grade UPS system provides dependable battery backup and is fully compliant with UL 60601-1 regulations when plugged into a hospital-grade outlet, making it ideal for use in patient-care vicinities. The 1kVA/750W capacity provides up to 28 minutes of runtime for a half load or 10 minutes for a full load, so you can work through short power failures and perform an orderly system shutdown in a prolonged blackout.Built-in line-interactive voltage regulation corrects brownouts as low as 81V and overvoltages as high as 143V to normal 120V nominal output without drawing battery power. The SMART1200XLHG’s built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise, while maintaining full AC surge suppression in all modes.This UPS system features four NEMA 5-15R-HG hospital-grade outlets and has a hospital-grade NEMA 5-15P-HG plug with a six-foot cord for flexibility in placement. All four outlets provide both backup protection and surge protection rated to 940 joules.The SMART1200XLHG also features diagnostic LEDs, as well as a USB port and a DB9 serial port that work with included PowerAlert® software for safe, unattended system shutdown in the event of a prolonged power failure.Application Usage This UPS contains a lead acid battery designed to be connected continuously to an AC power source, except during brief power outages. It is not intended for frequent charge/discharge cycles, such as mobile cart applications where the UPS is often disconnected from the power source. Using the SMART1200XLHG in this type of application will void the battery warranty. For mobile applications, the SMART1200XLHGL with lithium iron phosphate (LiFePo4) battery is recommended.

Features

Ideal UPS Backup in Healthcare Facilities

• Complies with UL 60601-1 standards for use in patient-care facilities
• Isolation transformer with Faraday shield offers full isolation and removes common mode noise

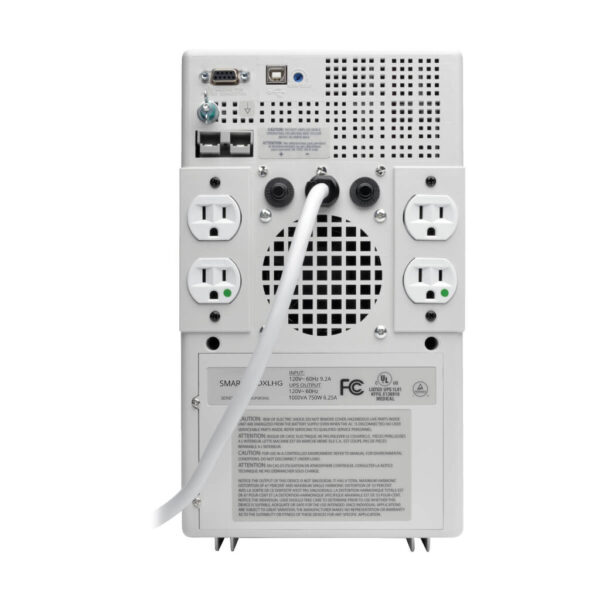

• 6 ft. power cord with 120V NEMA 5-15P-HG plug
• Floating AC output prevents noise coupling and meets agency requirements for isolation

Reliable Battery Backup and Surge Protection

• Supports half load up to 28 min. and full load up to 10 min.
• 4 NEMA 5-15R-HG outlets with 940-joule surge protection
• Filters out disruptive EMI/RFI line noise that can cause equipment damage or data loss
• Resists electrostatic discharge

LEDs and Audible Alarms

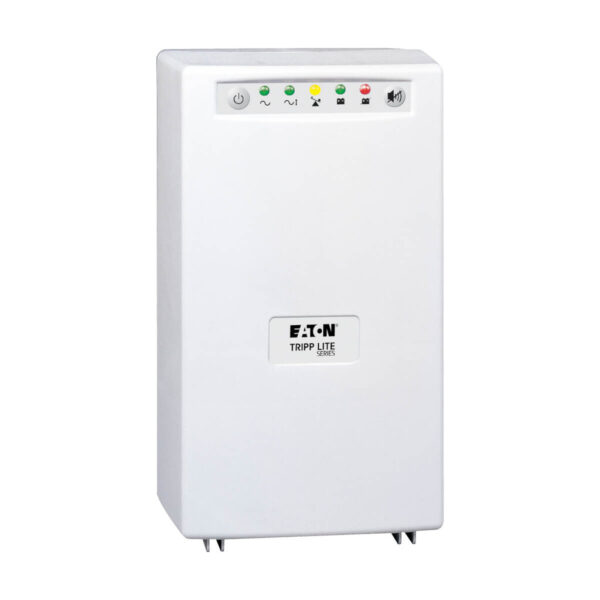

• Front LEDs indicate power, mode, load and battery status
• Alarms alert you to power failure, overload and low battery
• Mute/quiet mode ideal for use in quiet patient-care vicinities

Saves Files When You’re Away

• Included PowerAlert® software enables safe, unattended system shutdown and file saving during power failures
• Connects to computer via DB9 or USB port with included cables

Package Includes

• SMART1200XLHG 1kVA/750W Medical-Grade Tower UPS System
• USB monitoring cable, 6 ft.
• DB9 serial monitoring cable, 6 ft.
• PowerAlert Software
• Owner’s Manual
