Tripp Lite series External 48V 2U Rack/Tower Battery Pack for select UPS Systems (BP48V27-2US)

Tripp Lite series External 48V 2U Rack/Tower Battery Pack for select UPS Systems (BP48V27-2US)

Name: Tripp Lite series External 48V 2U Rack/Tower Battery Pack for select UPS Systems (BP48V27-2US)
Brand: Tripp Lite
SKU: BP48V27-2US
Price: 1715.42 CAD
Availability: InStock

$1,715.42

Brand: Tripp Lite

Part Number (MPN): BP48V27-2US

UPC / GTIN: 037332181404

Datasheet: PDF

Tripp Lite series External 48V 2U Rack/Tower Battery Pack for select UPS Systems (BP48V27-2US)

Toronto Stock: 1 available

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Extends the runtime of compatible 48V UPS Systems
Included daisychain connector supports the addition of multiple compatible external battery packs
Supports 2U rack-mount installation; 4-post installation accessories included
Options for 2-post rack-mount and wall-mount installation available

Overview

BP48V27-2US rack-mount external battery pack offers extended battery runtime when used in conjunction with expandable 48V rack-mount UPS systems. Includes heavy-gauge cabling with high-current DC connector for safe, simple installation. Included daisy-chain connector enables the connection of additional compatible 48V external battery packs to the host UPS. Included mounting accessories support 2U rack-mount installation in 4-post racks. Options for 2-point front-rail mounting, 2-post center-mounting and wall-mount installation available. Compatible with these UPS systems: SM2200RMXL2UP, SM2200RMXL2UPN, SMART5000RT3U, SMART5000XFMRXL, SMX2200XLRT2U, SMX2200XLRT2UN, and other UPS systems that specify the use of this battery pack.

Features

Offers extended-run UPS operation when used in conjunction with compatible 48V DC UPS systems
Includes heavy-gauge cabling with high-current DC connectors for simple installation
Daisychain connector enables the connection of additional compatible 48V external battery packs to the host UPS
Included mounting brackets support rack-mount installation in 4-post racks using only 2 rack spaces (2U)
Set of optional-use detection jacks automatically configure host UPS systems supporting this feature for one or more external battery packs
UPDHDEARKIT option supports two-point front-rail rack-mount installation without rear supports
2POSTRMKITWM option supports balanced two-point center-mounting in 2-post equipment racks
2POSTRMKITWM option also enables wallmount installation

Package Includes

BP48V27-2US external battery pack with attached DC cabling with grounding wire.

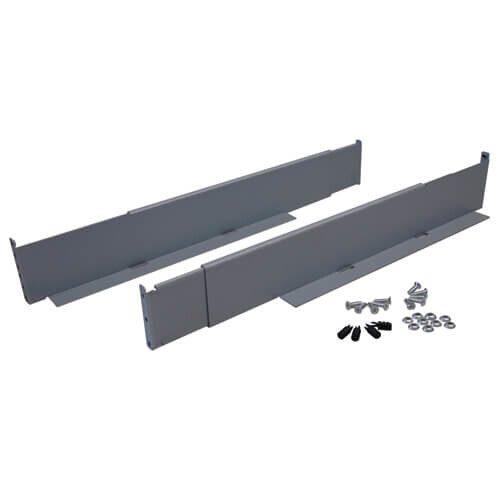

4 post compatible mounting hardware
Owner’s manual

Weight	124 lbs
Dimensions	28.27 × 26.42 × 9.67 in
UPC Code	037332181404
Rack Depth	26
Brand	Tripp Lite
Input Phase	Single-Phase
DC System Voltage (VDC)	48
UPS Connection	Attached cable with blue 2-point DC connector
Typical Battery Lifespan	4-6 years typical (North America)
Rack Height	2U
External Battery Pack Form Factor	Rack/Tower
Installation Form Factors Supported with Optional Accessories	2 post rackmount ( 2POSTRMKITWM ); Wallmount ( 2POSTRMKITWM ); 2-4 post front rail rackmount ( UPSHDEARKIT )
Minimum Required Rack Depth (cm)	66.04
Shipping Dimensions (hwd / cm)	24.56 x 67.11 x 71.81
Shipping Weight (kg)	56.25
Unit Dimensions (hwd / cm)	8,6 x 7,9 x 57,4
Unit Weight (kg)	39.96
Product Compliance	CE (Europe); RoHS
Product Warranty Period (U.S. & Canada)	2-year limited warranty
