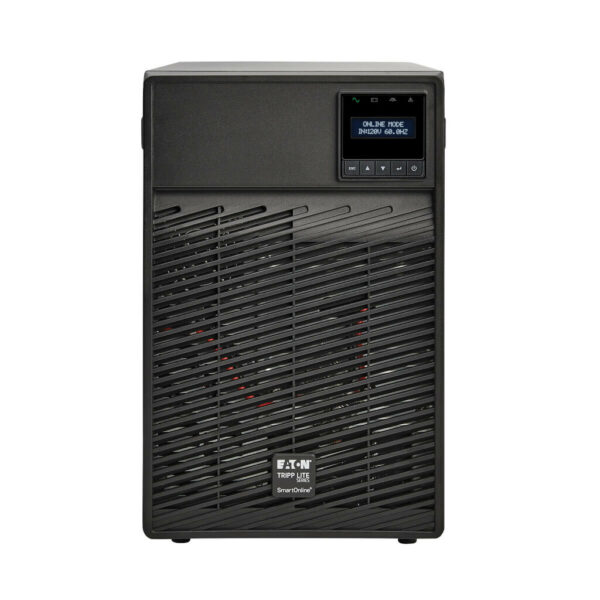

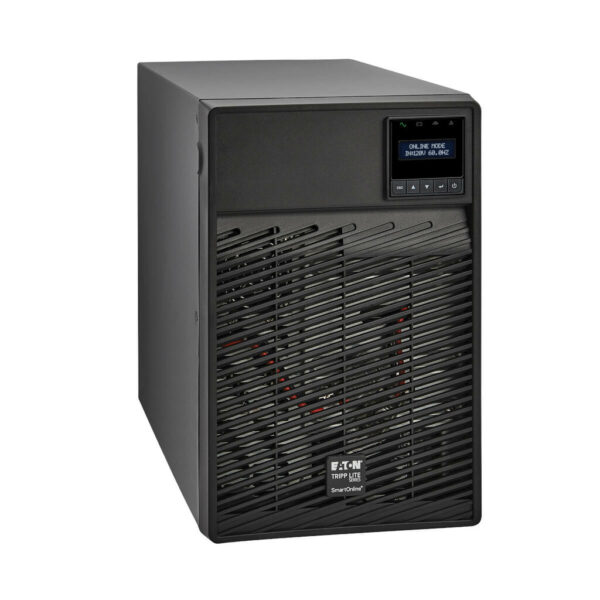

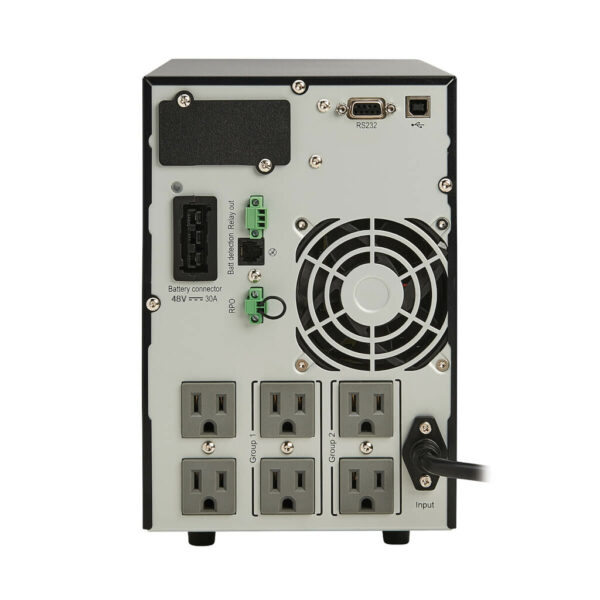

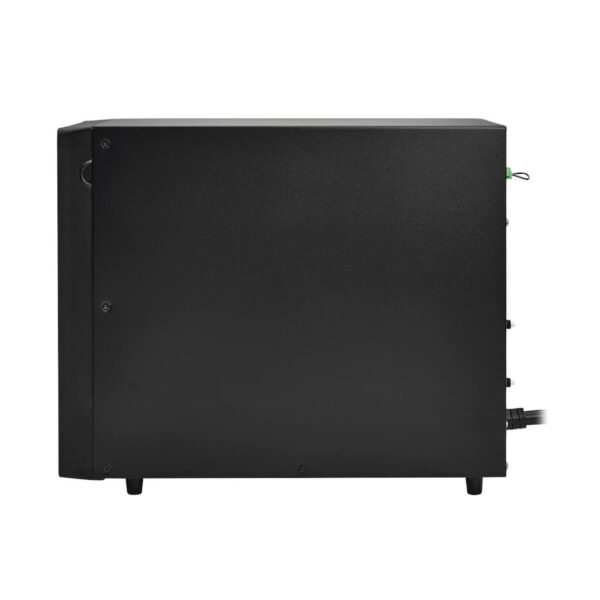

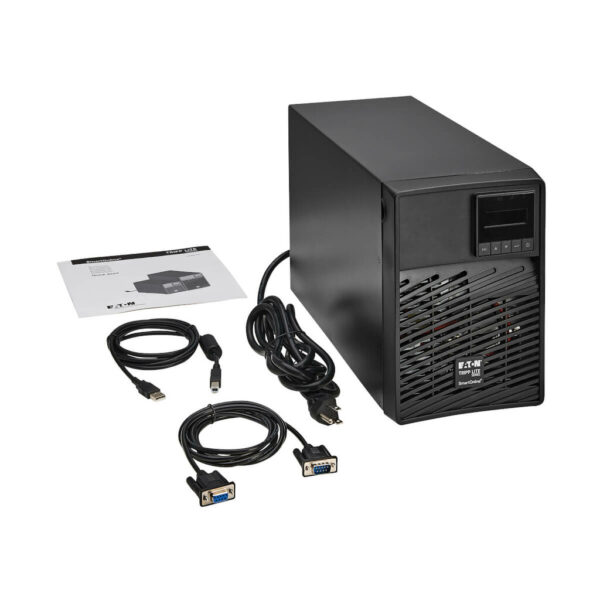

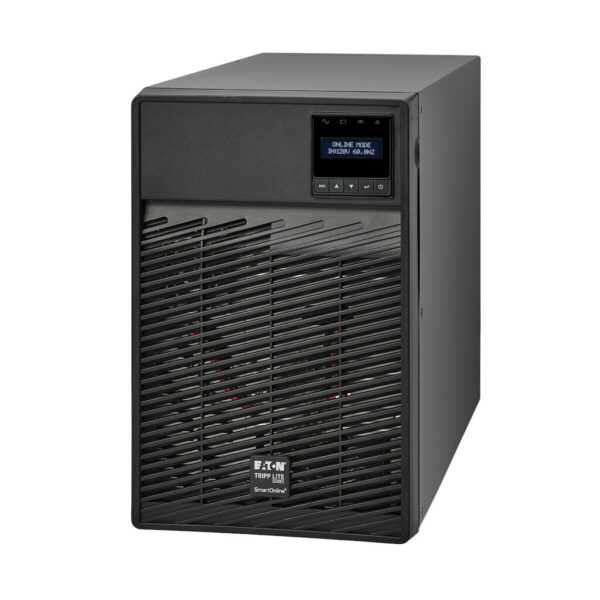

Tripp Lite SU1500XLCD uninterruptible power supply (UPS) Double-conversion (Online) 1,5 kVA 1350 W 6 AC outlet(s)
$1,601.20
SmartOnline 100-127V 1.5kVA 1.35kW On-Line Double-Conversion UPS, Extended Run, SNMP, Webcard, Tower, LCD display, USB, DB9 Serial
Do you need to protect small- to medium-size servers, networking equipment and telecom systems against data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges? Tripp Lite’s SU1500XLCD SmartOnline® Tower UPS System is the solution! Featuring a 1500VA/1350W capacity and true on-line operation with pure sine wave output and zero transfer time to battery, it provides the highest level of power protection for mission-critical equipment. The SU1500XLCD’s large internal battery set supports connected equipment during blackouts, and runtime is expandable with optional external battery packs BP48V24-2U (limit 1), BP48V60RT-3U (multi-pack compatible) and BP48V27-2US (multi-pack compatible), sold separately. The SU1500XLCD has 6 5-15R outlets, including 2 load banks of 3 outlets each that are individually controllable to reboot select equipment on demand or maximize battery runtime for mission-critical equipment. USB and DB9 communication ports support messaging of detailed UPS operational parameters and line power status. Included PowerAlert power management software supports an unlimited number of network UPS systems. The SU1500XLCD also accepts an optional SNMPWEBCARD accessory that enables the UPS to operate as a managed device on the network. It comes backed by a 2-year warranty and $250,000 of Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only).
– Ideal for Protection of Mission-Critical Equipment
– True On-Line Operation with Pure Sine Wave Output and Zero Transfer Time
– Individually Controllable Outlets
– Reliable, Expandable Battery Backup
– High Power Factor and Highly Efficient Operation Reduces BTU Output
– AC Line and Tel/Ethernet Surge Suppression
– EMI/RFI Line Noise Filtering
– LCD Screen and Audible Alarm
– USB/DB9 Ports, SNMP Capability and Included PowerAlert Software
– Emergency Power Off (EPO) Capability
– Peace of Mind
| Weight | 55 lbs |
|---|---|
| Dimensions | 23.3 × 12.9 × 14.8 in |
| Form Factor | |
| Color | Black |
| Cord Length | 3 |
| Brand | |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 127 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 100 V |
| Output operation voltage (max) | 127 V |
| RS-232 ports | 1 |
| Battery technology | Sealed Lead Acid (VRLA) |
| Display type | LCD |
| LED indicators | Charging, Power |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -15 – 50 °C |
| Width | 228,6 mm |
| Depth | 495,3 mm |
| Height | 259,1 mm |
| Waveform | Sine |
| USB 2.0 ports quantity | 1 |
| Typical backup time at full load | 4,5 min |
| Typical backup time at half load | 14 min |
| Cable length | 3 m |
| Built-in fan | Yes |
| Weight | 18,5 kg |
| Power plug | NEMA 5-15P |
| Ethernet LAN (RJ-45) ports | 2 |
| Hot-swap battery | Yes |
| AC outlets quantity | 6 AC outlet(s) |
| Output voltage regulation | 2% |
| AC outlet types | NEMA 5–15R |
| Cold start | Yes |
| Operating relative humidity (H-H) | 0 – 95% |
| Compliance certificates | RoHS |
| Cooling type | Active |
| Auto-restart | Yes |
| Emergency Power Off (EPO) | Yes |
| Modem (RJ-11) ports | 1 |
| Surge energy rating | 570 J |
| Crest factor | 3:1 |
| Package width | 327,7 mm |
| Package depth | 591,8 mm |
| Package height | 375,9 mm |
| Package weight | 24,9 kg |
| Quantity per master (outer) case | 1 pc(s) |
| Country of origin | China |
| Housing material | Metal |
| Master (outer) case width | 327,7 mm |
| Master (outer) case length | 591,8 mm |
| Master (outer) case height | 375,9 mm |
| Master (outer) case weight | 24,9 kg |
| Off-mode charging | Yes |
Compatible accessories
-

Tripp Lite series 48V Extended Battery Module (EBM) for SU1500XLCD SmartOnline UPS System, Tower
Manufacturer: Tripp LitePart Number: BP48V $1,063.28 -
IN STOCKManufacturer: Tripp LitePart Number: BP48V24-2U $1,122.67 -
IN STOCKTripp Lite series External 48V 2U Rack/Tower Battery Pack for select UPS Systems (BP48V27-2US)
Manufacturer: Tripp LitePart Number: BP48V27-2US $1,715.42
