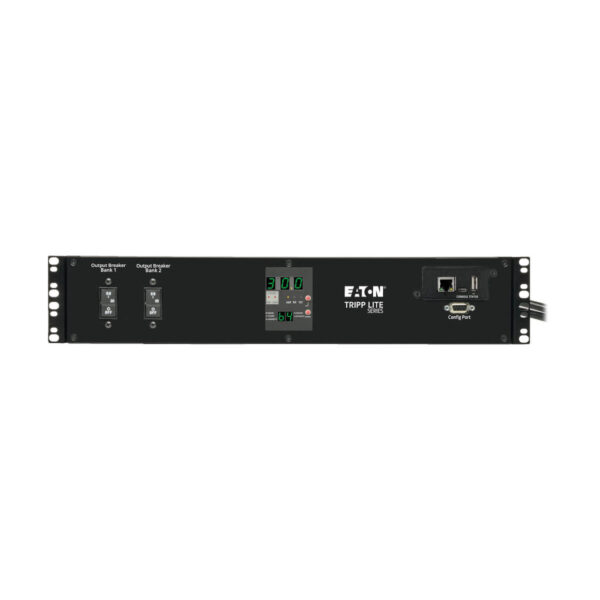

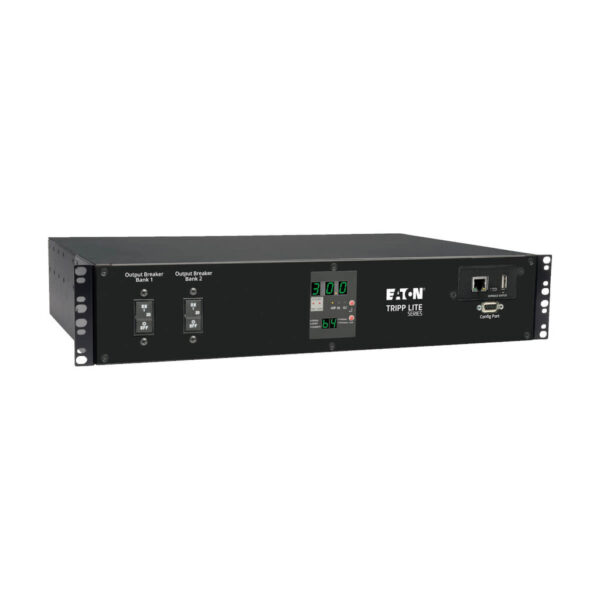

Tripp Lite series 5.8kW Single-Phase Switched Automatic Transfer Switch PDU, Two 200-240V L6-30P Inputs, 16-C13 2-C19 & 1 L6-30R Outlet, 2U, TAA

Quick Specs

• Single phase 24A 200-240V Auto Transfer Switch / ATS PDU with Solid State Switching
• Separate primary and secondary inputs enable redundant-power option for non-redundant network devices
• Pre-installed WEBCARDLX with latest version of PADM20 for IP-based Auto Probe feature
• 2U rackmount, 2 L6-30P inputs, 19 switched outlets (16 C13, 2 C19, 1 L6-30R)
• Compatible with Eaton Tripp Lite power cords to simplify deployment and enhance reliability
• Individually switched outlets, network interface and visual current, voltage and environmental monitoring

Features

• 200-240V 30A Automatic Transfer Switch (ATS) / Switched rack PDU (rPDU) (Agency de-rated to 24A continuous)
• ATS features provide redundant power for critical network equipment with a single input power cord

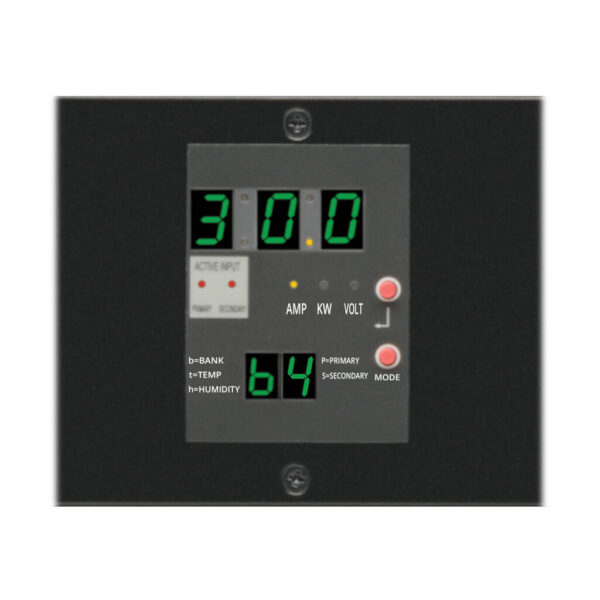

• 2 digit display reports output power consumption in amps

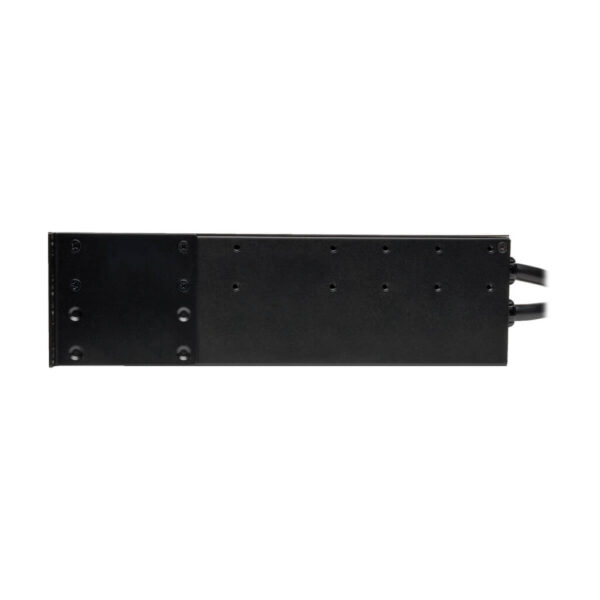

• 2U horizontal rack-mount form factor; 12.5 in. / 31.8 cm depth

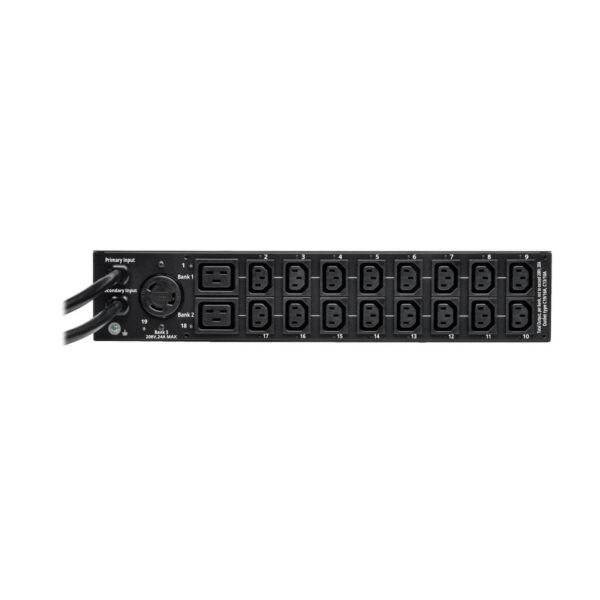

• 19 built-in switched outlets (16 C13, 2 C19 & 1 L6-30R)
• Set of Plug-lock output power cable retention sleeves prevent accidental disconnection of connected devices

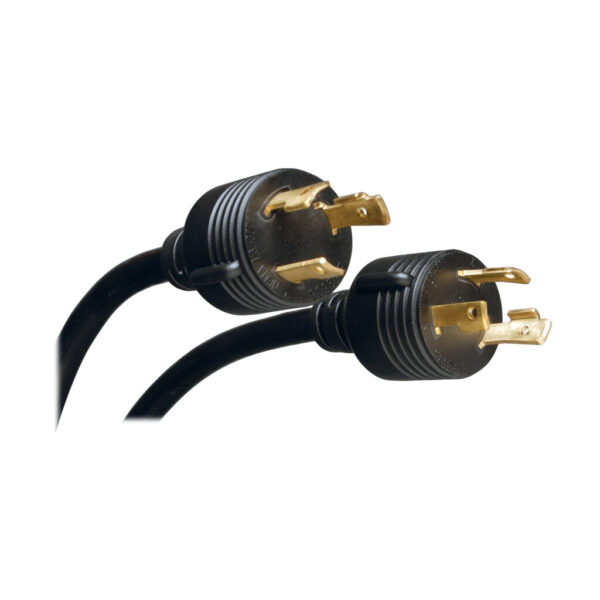

• Set of two 10-ft. / (3.05 m) NEMA L6-30P input cables support connection to separate PRIMARY and SECONDARY inputs
• ATS circuits normally maintain output sourced from the primary input cable; As primary input power fails or becomes unstable, the ATS will switch to maintain output sourced from the secondary input cable until power on the primary input is restored and stable
• ATS configurations enable fault-tolerant, hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system (in a two-UPS environment, the primary input cable must be supported by an online UPS with zero transfer time similar to SmartOnline series)
• Advanced ATS configurations utilizing separate mains circuits, backup generators and even separate out of phase utility power grid feeds are fully supported
• On-board ATS processor constantly evaluates power quality on both inputs to prevent transfer to the secondary source when unavailable or of lower quality than the primary source
• Super-fast switch-over between primary and secondary power sources occurs in 2-6 milliseconds
• Switched outlets and Ethernet interface supports individual outlet control on a real-time or programmable basis and user-specified alarm notification thresholds for all reported site power conditions
• Pre-installed WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
• PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
• IP-based Auto Probe detects lost connectivity and restores service autonomously
• Outlets are factory programmed for sequential turn-on at 250 millisecond intervals when the PDU is first energized to prevent inrush-related equipment interaction on startup
• Front panel LED’s confirm power availability on both input lines and for each output receptacle
• Includes IEC plug retention sleeves to keep vital network equipment plugged in and continuously powered
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

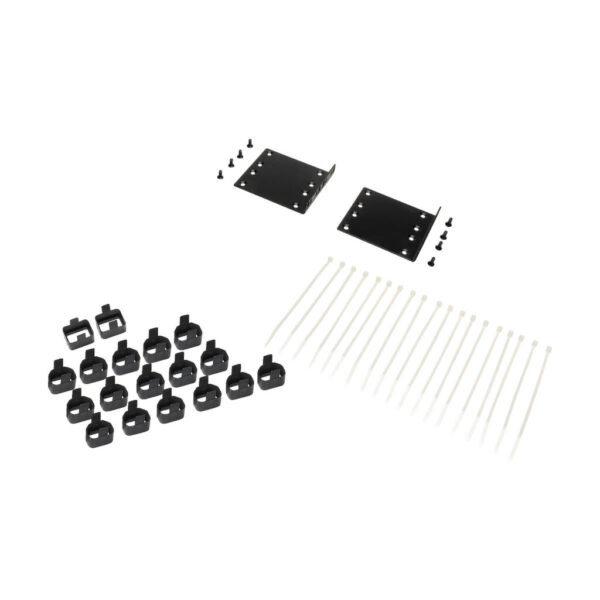

Package Includes

• 2U PDUMH30HVATNET 24A ATS SWITCHED PDU
• 2U rackmount installation brackets
• (16) IEC C13 plug retention sleeves
• (2) IEC C19 plug retention sleeves
• (1) Micro-USB-to-USB A configuration cable (73-1689)
• User manual
