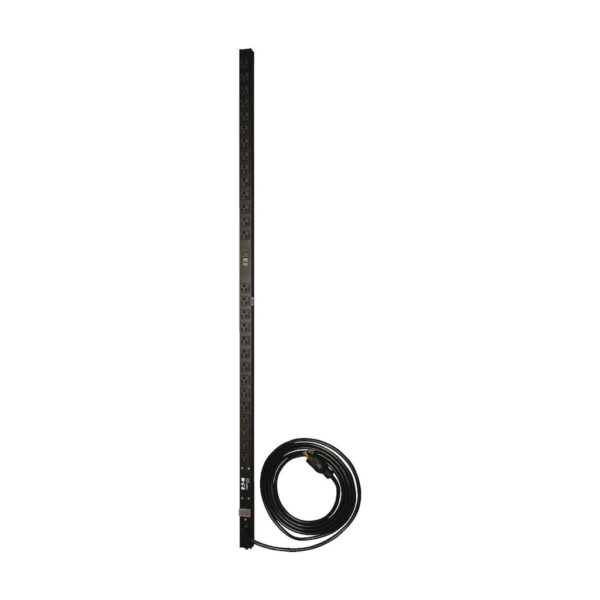

Tripp Lite series 1.9kW Single-Phase Local Metered PDU, 120V Outlets (28 5-15/20R), L5-20P/5-20P Adapter, 15 ft. (4.57 m) Cord, 0U Vertical

Name: Tripp Lite series 1.9kW Single-Phase Local Metered PDU, 120V Outlets (28 5-15/20R), L5-20P/5-20P Adapter, 15 ft. (4.57 m) Cord, 0U Vertical
Brand: Tripp Lite
SKU: PDUMV20
Price: 303.72 CAD
Availability: InStock

$303.72

Brand: Tripp Lite

Part Number (MPN): PDUMV20

UPC / GTIN: 037332132543

Datasheet: PDF

Tripp Lite series 1.9kW Single-Phase Local Metered PDU, 120V Outlets (28 5-15/20R), L5-20P/5-20P Adapter, 15 ft. (4.57 m) Cord, 0U Vertical

Toronto Stock: 5 available

Manufacturer Warehouse: 60 available
*Items typically ship within 3-4 weeks if stock at factory

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Local Metered single phase 120V 16A 0U 60in / 152cm vertical rackmount PDU
Two-digit current meter reports output current in amps
Attached 15-ft. (4.57 m) cord with NEMA L5-20P plug and 5-20P adapter
28 NEMA 5-15/20R outlets
Toolless button mount and bolt-down bracket installation hardware included

Features

20A single phase 120V Local Metered Power Distribution Unit / rack PDU (rPDU) (Agency de-rated to 16A continuous)

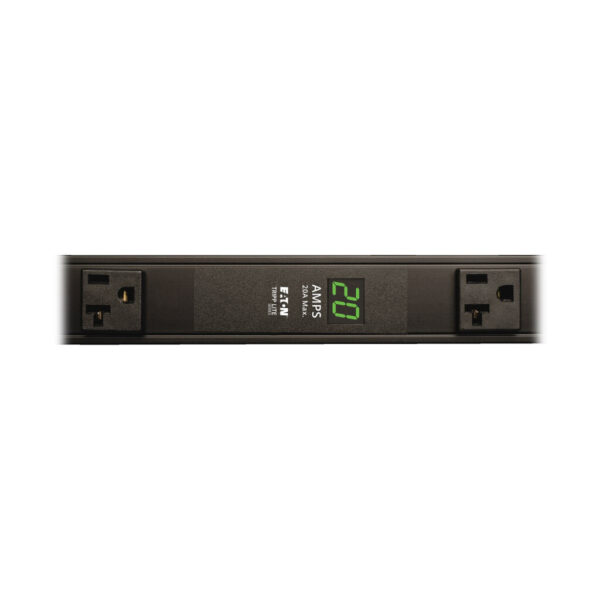

Two-digit lighted meter reports combined total output current in amps

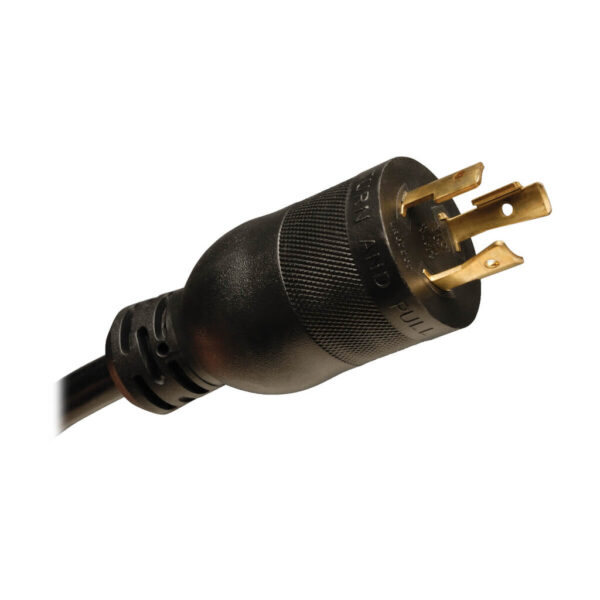

Attached NEMA L5-20P input plug with 15-ft. (4.57 m) line cord and 5-20P adapter
0U 60in / 152cm vertical rackmount format installs using no rack spaces
28 NEMA 5-15/20R outlets

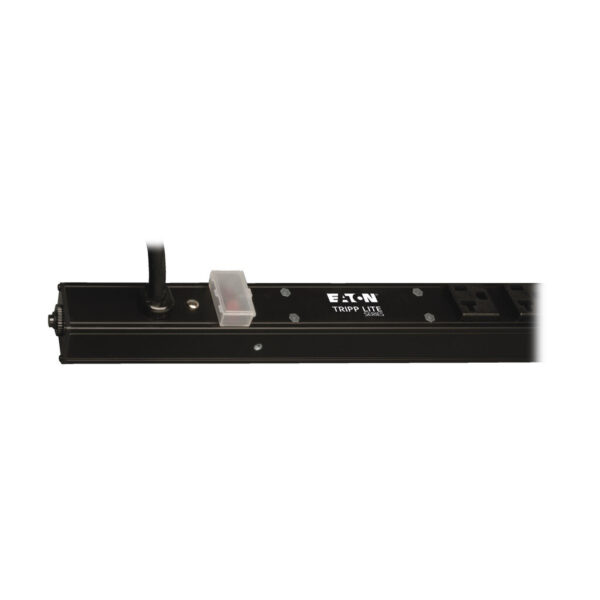

Includes 20A circuit breaker and lighted power switch inside a transparent protective cover
Toolless installation supported in button-mount compatible equipment racks
Bolt-down installation brackets support installation in other racks and additional surfaces

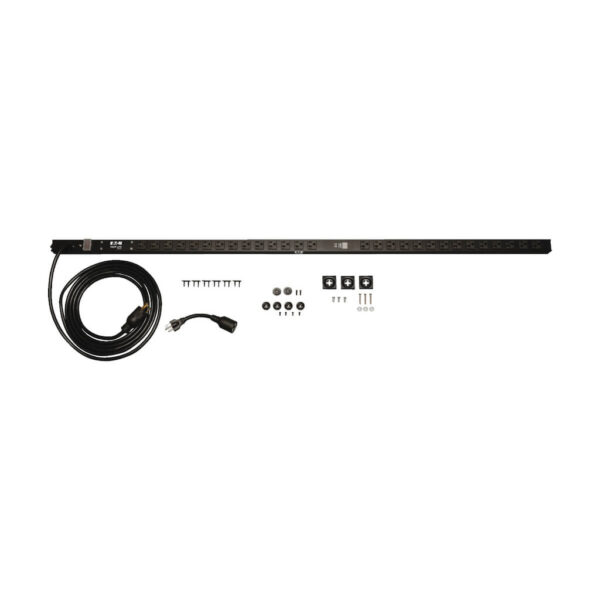

Package Includes

PDUMV20 Local Metered Vertical PDU
(1) L5-20P to 5-20P plug adapter
Mounting hardware and spare mounting buttons
Instruction manual with warranty information

Weight	7 lbs
Dimensions	63.2 × 3.5 × 2.4 in
UPC Code	037332132543
Cord Length	14.99
Max Input Amps	16
Brand	Tripp Lite
PDU Type	Local Metered
Input Phase	Single-Phase
PDU Input Voltage	120
Recommended Electrical Service	Single-phase 20A 120V service
Maximum Input Amps Details	Agency de-rated to 16A continuous
PDU Plug Type	NEMA 5-20P; NEMA L5-20P
Input Cord Length (m)	4.57
Output Capacity Details	1.92kW (120V) / 16A total capacity; 16A max per outlet
Frequency Compatibility	50 / 60 Hz
Output Receptacles	(28) 5-15/20R
Output Nominal Voltage	120V
Overload Protection	20A circuit breaker
Front Panel LCD Display	Digital meter reports PDU output current in amps
Switches	Lighted on/off switch with integrated transparent saftey cover
Material of Construction	Aluminum
Rack Height	0U
Form Factors Supported	Vertical
PDU Form Factor	Vertical (0U)
Shipping Dimensions (hwd / cm)	6.10 x 8.89 x 160.53
Shipping Weight (kg)	3.18
Unit Dimensions (hwd / cm)	153.59 x 3.81 x 4.17
Unit Weight (kg)	2.44
Operating Temperature Range	32° to 104°F (0° to 40°C)
Storage Temperature Range	-22° to 122°F (-30° to 50°C)
Relative Humidity	5% to 95% non-condensing
Operating Elevation	0-10000 ft. (0-3000 m)
Product Certifications	CAN/CSA-C22.2 No. 60950-1 (Canada); NOM (Mexico); UL 60950-1
Product Compliance	RoHS
Product Warranty Period (Worldwide)	2-year limited warranty
