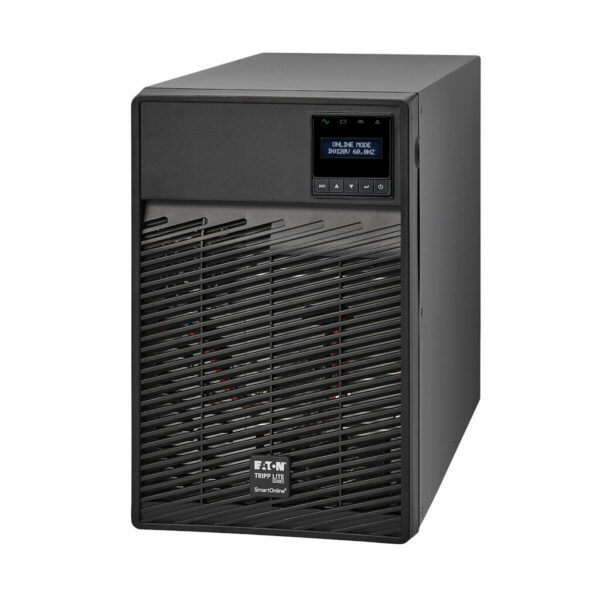

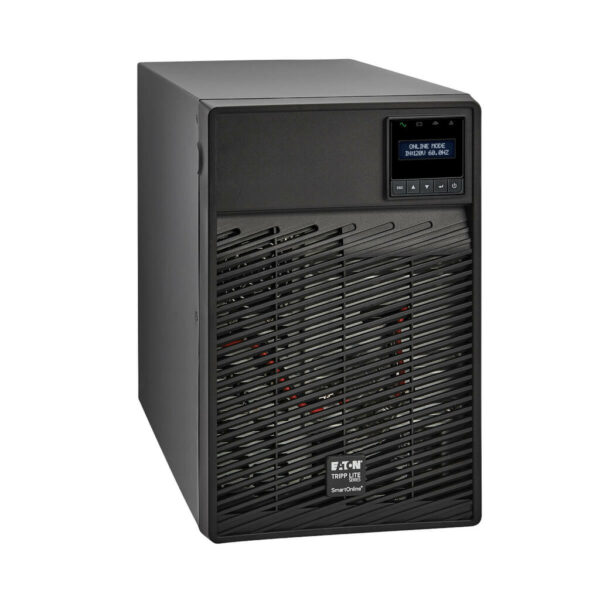

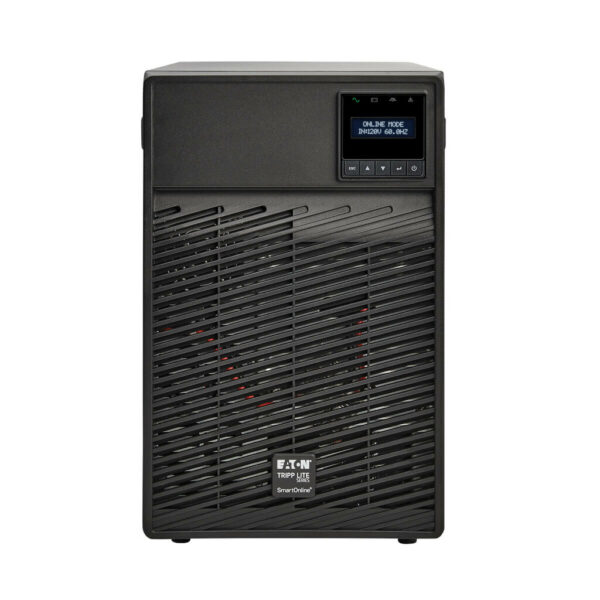

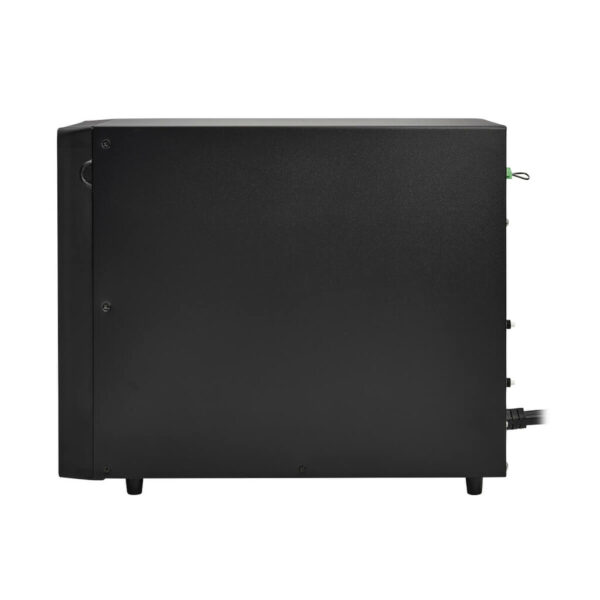

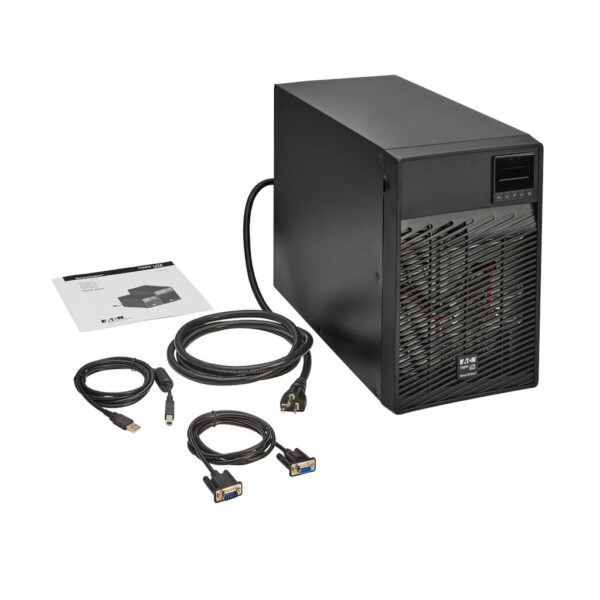

Tripp Lite SU2200XLCD uninterruptible power supply (UPS) Double-conversion (Online) 1,96 kVA 1800 W 7 AC outlet(s)

$2,211.51

Brand: Tripp Lite
Part Number (MPN): SU2200XLCD
UPC / GTIN: 037332174659
Datasheet: PDF

SmartOnline 100-127V 2.2kVA 1.8kW On-Line Double-Conversion UPS, Extended Run, SNMP, Webcard, Tower, LCD display, USB, DB9 Serial

Status: On Backorder (Contact us for lead times)
Need project pricing? Add items to your cart to request a custom project quote.

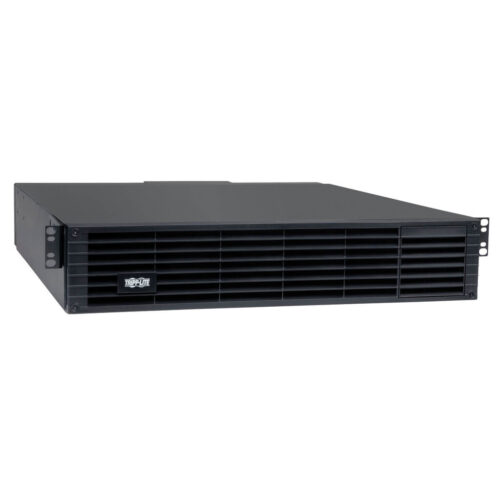

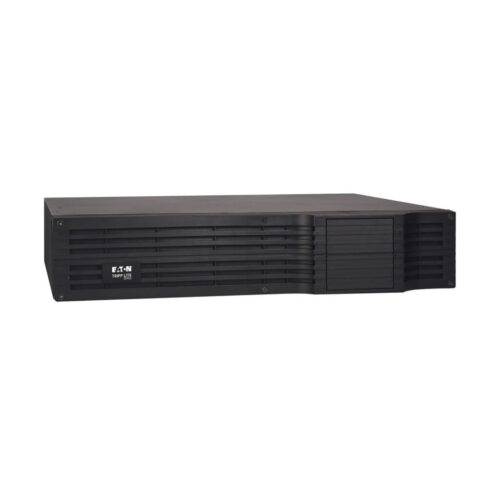

Do you need to protect medium- to large-size servers, networking equipment and telecom systems against data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges? Tripp Lite’s SU2200XLCD SmartOnline® Tower UPS System is the solution! Featuring a 2200VA/1800W capacity and true on-line operation with pure sine wave output and zero transfer time to battery, it provides the highest level of power protection for mission-critical equipment. The SU2200XLCD’s large internal battery set supports connected equipment during blackouts, and runtime is expandable with optional external battery packs BP48V24-2U (limit 1), BP48V60RT-3U (multi-pack compatible) and BP48V27-2US (multi-pack compatible), sold separately. The SU2200XLCD has 7 AC outlets (6 5-15/20R, 1 L5-20R), including 2 load banks of 3 outlets each that are individually controllable to reboot select equipment on demand or maximize battery runtime for mission-critical equipment. USB and DB9 communication ports support messaging of detailed UPS operational parameters and line power status. Included PowerAlert power management software supports an unlimited number of network UPS systems. The SU2200XLCD also accepts an optional SNMPWEBCARD accessory that enables the UPS to operate as a managed device on the network. It comes backed by a 2-year warranty and $250,000 of Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only).
– Ideal for Protection of Mission-Critical Equipment
– True On-Line Operation with Pure Sine Wave Output and Zero Transfer Time
– Individually Controllable Outlets
– Reliable, Expandable Battery Backup
– High Power Factor and Highly Efficient Operation Reduces BTU Output
– AC Line and Tel/Ethernet Surge Suppression
– EMI/RFI Line Noise Filtering
– LCD Screen and Audible Alarm
– Emergency Power Off (EPO) Capability
– USB/DB9 Ports, SNMP Capability and Included PowerAlert Software
– Peace of Mind

Weight 60 lbs
Dimensions 23.1 × 13.5 × 14.7 in
Form Factor
Color

Black

Cord Length

3

Brand

Input operation voltage (min)

100 V

Input operation voltage (max)

127 V

Input frequency

50/60 Hz

Output operation voltage (min)

100 V

Output operation voltage (max)

127 V

RS-232 ports

1

Battery technology

Sealed Lead Acid (VRLA)

Display type

LCD

LED indicators

Activity, Charging, Power, Stand-by, Battery replacement

Operating temperature (T-T)

0 – 40 °C

Storage temperature (T-T)

-15 – 50 °C

Width

228,6 mm

Depth

495,3 mm

Height

259,1 mm

Waveform

Sine

USB 2.0 ports quantity

1

Typical backup time at full load

4,5 min

Typical backup time at half load

13 min

Cable length

3 m

Built-in fan

Yes

Weight

24 kg

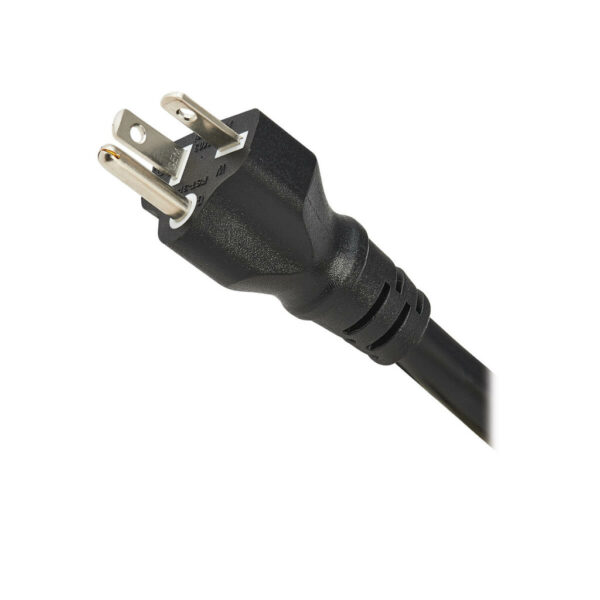

Power plug

NEMA 5-20P

Ethernet LAN (RJ-45) ports

2

Hot-swap battery

Yes

AC outlets quantity

7 AC outlet(s)

Output voltage regulation

2%

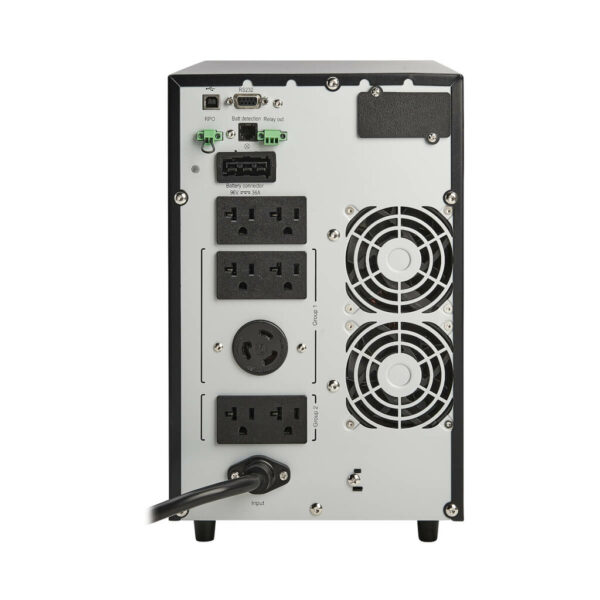

AC outlet types

NEMA 5–15R, NEMA 5–20R, NEMA L5-20R

Cold start

Yes

Operating relative humidity (H-H)

0 – 95%

Compliance certificates

RoHS

Cooling type

Active

Auto-restart

Yes

Emergency Power Off (EPO)

Yes

Modem (RJ-11) ports

1

Surge energy rating

570 J

Package width

342,9 mm

Package depth

586,7 mm

Package height

373,4 mm

Package weight

27,2 kg

Quantity per master (outer) case

1 pc(s)

Country of origin

China

Housing material

Metal

Master (outer) case width

342,9 mm

Master (outer) case length

586,7 mm

Master (outer) case height

373,4 mm

Master (outer) case weight

27,2 kg

Off-mode charging

Yes
