Tripp Lite series External 36V Battery Pack for Select UPS Systems, 2U Rack/Tower

Tripp Lite series External 36V Battery Pack for Select UPS Systems, 2U Rack/Tower

Name: Tripp Lite series External 36V Battery Pack for Select UPS Systems, 2U Rack/Tower
Brand: Tripp Lite
SKU: BP36V27-2US
Price: 1268.53 CAD
Availability: InStock

$1,268.53

Brand: Tripp Lite

Part Number (MPN): BP36V27-2US

UPC / GTIN: 037332181770

Datasheet: PDF

Tripp Lite series External 36V Battery Pack for Select UPS Systems, 2U Rack/Tower

Toronto Stock: 6 available

Manufacturer Warehouse: 24 available
*Items typically ship within 3-4 weeks if stock at factory

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Connects to expandable 36V DC UPS systems for extended runtime

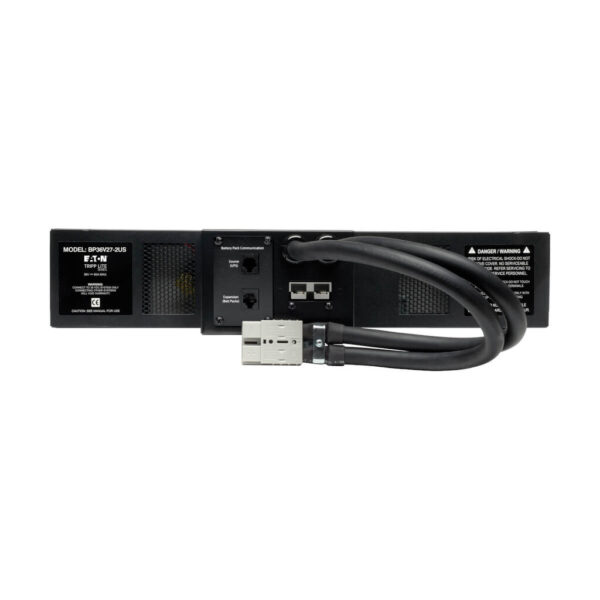

Daisy-chain connector supports additional battery packs for even longer runtime
Optional-use detection jacks auto-configure select UPS systems for quicker setup

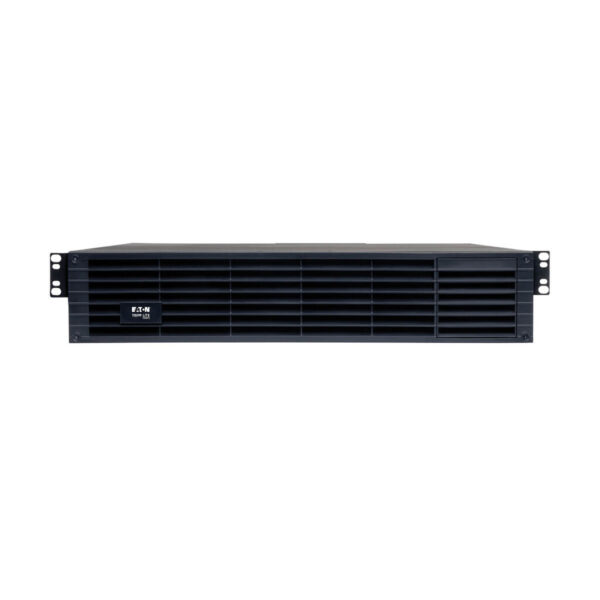

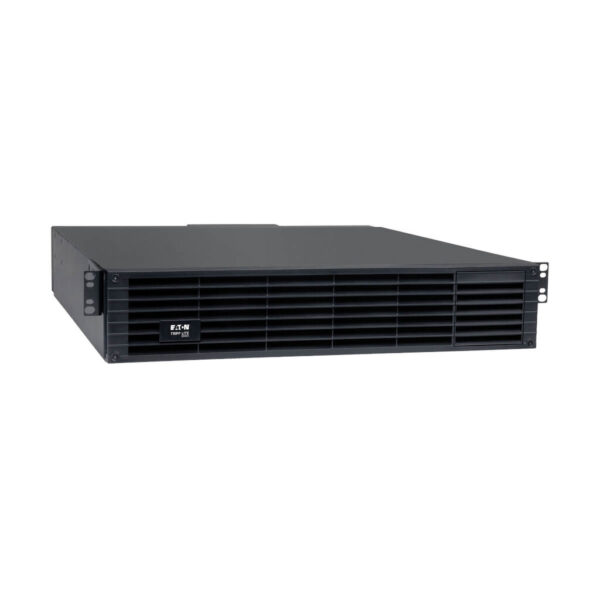

Mounts in 2U of space in 19 in. rack using included 4-post installation hardware
Supports 2-post rack, 2-point rail, wall or tower installation with optional accessories

Features

External Battery Pack Gives Your Compatible UPS System Extended RuntimeThe BP36V27-2US is compatible only with select 36V DC UPS systems that specify the use of this battery pack. Not only does it provide extended runtime, but it can also be daisy-chained using its rear connector to additional external battery packs for even longer extended-run operation. Heavy-gauge cabling with high-current two-point DC connector is included for simple installation. Optional-use rear-panel battery detection jacks automatically configure host UPS systems supporting this feature for one or more external battery packs.Versatile Installation Options Allow You to Place the Battery Where Most NeededThe steel housing supports mounting in 2U of space in EIA-standard 19-inch racks using the included 4-post rack-mounting brackets. The BP36V27-2US is also compatible with 2-9USTAND for upright tower configuration, 2POSTRMKITWM for 2-post racks or wall installation and UPDHDEARKIT for 2-point front-rail rack installation without rear supports (all accessories sold separately).2-Year WarrantyThe BP36V27-2US is backed by a 2-year warranty, ensuring reliability and performance.

System Requirements

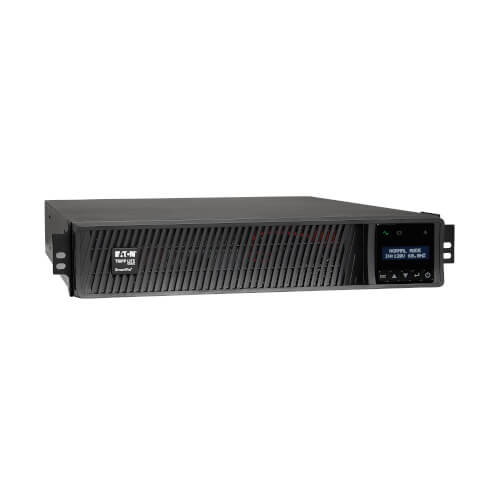

Compatible with SMART1000RMXL2U, SMART1200XLHG, SMART1500RMXL2UA, SMART1500RMXLN, SMART1500XL, SMX1200XLHG, SMX1500XLRT2U and other UPS systems that specify the use of this battery pack

Package Includes

BP36V27-2US 36V External Battery Pack w/attached DC cabling
Rack-mounting hardware
Owner’s manual

Weight	105 lbs
Dimensions	28.5 × 26.5 × 9.5 in
UPC Code	037332181770
Rack Depth	26
Brand	Tripp Lite
Input Phase	Single-Phase
DC System Voltage (VDC)	36
UPS Connection	Attached 18in. / 457mm 6AWG cable with 50A gray 2-point DC connector
Typical Battery Lifespan	3-6 years typical (North America)
Material of Construction	Steel
Rack Height	2U
External Battery Pack Form Factor	Rack/Tower
Installation Form Factors Supported with Optional Accessories	2 post rackmount ( 2POSTRMKITWM ); 2-4 post front rail rackmount ( UPSHDEARKIT ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Tower ( 2-9USTAND ); Wallmount ( 2POSTRMKITWM )
Minimum Required Rack Depth (cm)	66.04
Optional Mounting Accessory Notes	Optional 2-9USTAND enables upright tower UPS placement; 2POSTRMKITWM enables wall-mount and 2-post rackmount installation; 4POSTRAILKITWM enables installation in 4-post short-depth racks from 14.5 to 23.5 inches (368 to 597mm); UPSHDEARKIT enables installation in 2 or 4-post racks using front vertical rails only, without rear support
Shipping Dimensions (hwd / cm)	24.13 x 67.31 x 72.39
Shipping Weight (kg)	47.63
Unit Dimensions (hwd / cm)	8.71 x 44 x 57.4
Unit Weight (kg)	31.26

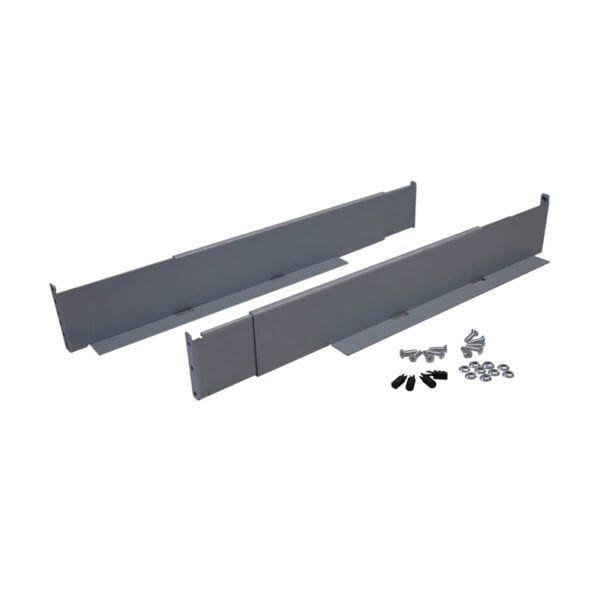

Mounting Details	Included 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm)
Product Compliance	CE (Europe); RoHS; UKCA
Product Warranty Period (U.S. & Canada)	2-year limited warranty
