Tripp Lite series SmartPro 230V 1kVA 750W Medical-Grade Line-Interactive Tower UPS with 6 Outlets, Full Isolation, Expandable Runtime

Quick Specs

• Supports a half load up to 27.5 minutes; full load up to 11 minutes
• Six IEC320 C13 hospital-grade outlets and IEC320 C14 hospital-grade plug
• Compatible with Eaton Tripp Lite power cords to simplify deployment and enhance reliability
• Leakage current less than 100 microamps
• 340 joule surge suppression rating protects connected equipment
• Alarm mute/alarm quiet control is ideal for use around patients
• Approved to EN60601-1-2:2015, 4th Edition

Overview

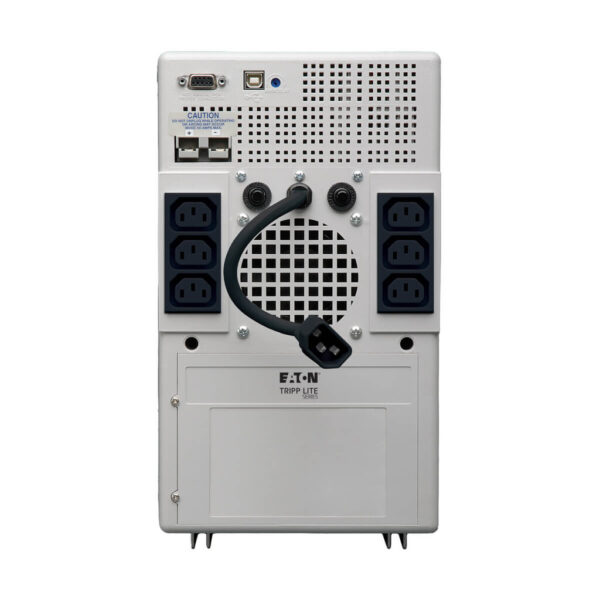

The SMX1200XLHG medical-grade UPS system provides dependable battery backup and is fully compliant with UL 60601-1 regulations when plugged into a hospital-grade outlet, making it ideal for use in patient care vicinities. The 1kVA/750W capacity provides up to 27.5 minutes of runtime for a half load or 11 minutes for a full load, so you can work through short power failures and perform an orderly system shutdown in a prolonged blackout.Built-in line-interactive voltage regulation corrects brownouts as low as 155V and overvoltages as high as 274V to normal 230V nominal output, without drawing battery power. The SMX1200XLHG’s built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise while maintaining full AC surge suppression in all modes. Cumulative leakage current of all connected equipment is less than 100 microamps.This UPS system features six IEC320 C13 hospital-grade outlets and has a hospital-grade IEC320 C14 plug on a 15-centimeter (six-inch) dongle. All six outlets provide both backup protection and surge protection, rated to 340 joules.The SMX1200XLHG also features diagnostic LEDs, as well as a USB port and a DB9 serial port that work with included PowerAlert® software for safe, unattended system shutdown in the event of a prolonged power failure.This UPS contains a lead acid battery designed to be connected continuously to an AC power source, except during brief power outages. It is not intended for frequent charge/discharge cycles, such as mobile cart applications where the UPS is often disconnected from the power source. Using the SMX1200XLHG in this type of application will void the battery warranty.

Features

Provides Ideal UPS Backup in Healthcare Facilities

• Compliant with UL 60601-1 standards for use in patient-care vicinities, when plugged into a hospital-grade outlet
• Built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise

Battery Backup and Full Surge Protection

• 27.5 minutes runtime for half load (375W); 11 minutes for full load (750W)
• All six hospital-grade outlets provide surge protection rated to 340 joules
• EMI/RFI noise filtering ensures equipment runs smoothly without line noise interference
• Resistant to electrostatic discharge

LEDs and Audible Alarms Keep You Aware of Power Status

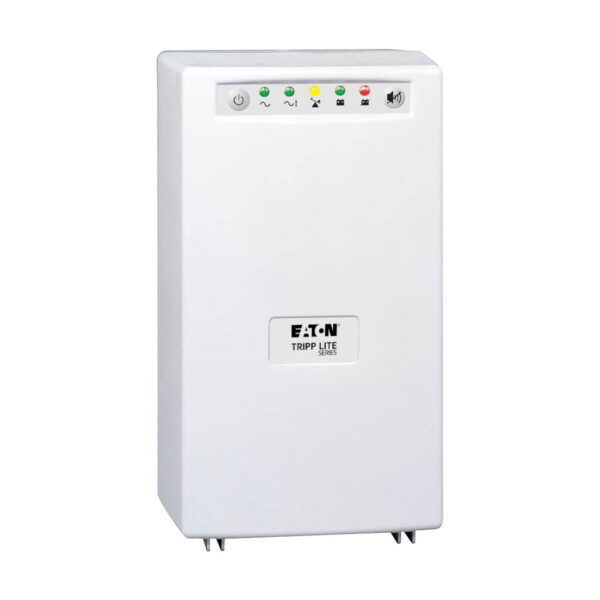

• Indicator lights on the front of the unit show you when the UPS is on and supplying utility power, when operating in voltage correction mode or in battery mode, relative load level and low-battery warning
• Audible alarms alert you to power failure, overload and low battery conditions; the alarm’s mute/quiet mode ensures patients are not disturbed

Saves Your Files, Even When You’re Away

• Works with PowerAlert software (included) to enable safe, unattended system shutdown and files saves during prolonged power failures
• Connects to your computer via either the DB9 port or USB port

Package Includes

• SMX1200XLHG 1kVA/750W Medical-Grade Tower UPS System
• USB monitoring cable, 1.8 m (6 ft.)
• DB9 serial monitoring cable, 1.8 m (6 ft.)
• PowerAlert software
• Owner’s Manual
